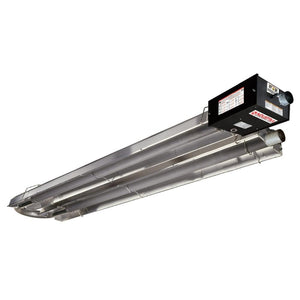

NDUSTRIA™ NHE Infrared Overhead U-Tube Gas Heater

  • Ndustria Authorized Retailer Badge

    Melt away the chills in any patio or indoor space with the NDUSTRIA™ NHE Infrared U-Tube Gas Heater. It is one of the most powerful gas heaters available with 150,000 BTU heat output. Constructed with premium materials, this elegant heating system is designed to withstand even the most extreme weather conditions.

    Its highly efficient Infrared Heat Particles are designed to provide strong heat to a specific area while not being blown away in the wind. Made in the USA, this patio heater has resilient Aluminized Steel Construction that will last for many years. Fully Automatic Direct Spark Ignition allows easy operation in any home or business setting.

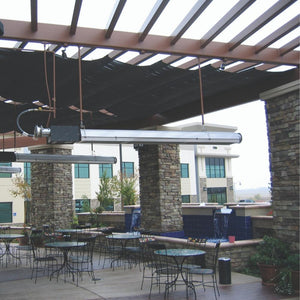

    Versatile overhead and ceiling-mounted installation options make it ideal for indoor use and covered patios. This gas patio heater may be installed unvented provided there is enough air circulation.

    Make your space feel luxuriously warm with cost-efficient spot-heating technology. Grab the best deal on American-Made Patio Heaters today with our free shipping offer!

    Note:The heater performs best in mild climates where temperatures are at least 40ºF. Please read the recommendations on mounting it properly for it to heat efficiently.

    Need help determining the right heater and setup for your space and heating needs? Give us a call at 1-866-713-4844 or email us at support@patiofever.com and we'll be happy to help!

    If you are installing heaters above 4,000 ft. elevation, please contact support@patiofever.com.


    Product Manual

    Download Specs

    Key Features:

    • High heat output directed to a specific area
    • Fully automatic Direct Spark Electronic Ignition System for convenient operations.
    • Heavy-duty outdoor heater. Built to withstand wind, rain, and other elements.
    • Compatible with Natural Gas or Liquid Propane
    • Permanently installed and connected to gas lines so changing of propane tanks is not necessary.

    Other Features:

    • The included hangers allow you to install the heater horizontally or at 45°, just attach it to a chain.
    • Electrostatically applied black powder coat finish
    • Unvented installation for spaces with enough air circulation
    • CSA approved and ANSI certified
    • Made in the USA, ensures high-quality materials and workmanship.


    Model Number: NDHEV.xxTHxx
    Manufacturer: NDUSTRIA™
    Series: NHE
    Indoor/Outdoor: Indoor/Outdoor
    Fuel Type: Natural Gas/Liquid Propane
    Installation: Ceiling Mounted
    Tubing Material: Aluminized Steel
    Grade: Commercial
    Ignition: Direct Spark Electronic Ignition
    Heater Type: Infrared
    Heating Area: 40 sq ft
    Safety Shut Off Valve With Safety Shut-Off
    BTUs: 60,000/80,000/100,000/125,000/150,000
    Volts: 120 V
    Amps: 1
    Dimensions: 156.5"/216.5"/276.5" L x 9.5" H x 32.19" D
    Weight: 145/179/220 lbs
    Certifications: CSA Approved / ANSI Certified
    Warranty: 3-Year Limited Warranty

    What's in the Box:

    • U-Tube Heater - 1 pc.
    • Reflector - 1 pc.
    • User's Manual - 1 pc.


    When installing the heater on the ceiling, it is best to mount the unit in a level orientation so the reflectors will direct the heat straight down. Mounting the heater at a 45-degree angle will concentrate the heat towards the center of your patio space.

    For the best heating experience, a specified mounting height for each model can be found on the specs sheet.

    This heater can be installed unvented provided there is enough air circulation and clearances to combustibles. Covered and walled (temporary or permanent) spaces may need venting installed.

    Ideally, heaters are spaced at the same distance as their mounting height to spread heat evenly. For temperatures below 40ºF, it is best to keep the heaters half the distance as their mounting height.
