Schwank | Gas Patio Heater | STP-TA05-10-BN

STP-TA05-10-BN

Built-in Smart Controls

PhantomSchwank Wall/Ceiling-Mounted Natural Gas Outdoor Heater

$3,637.50

A natural gas patio heater you control from your phone. Wi-Fi is built into the heater, and the fully enclosed infrared tube is designed to hold up in wind.

↓ Read Full Description

Size

Free delivery to contiguous U.S. + free 30-day returns. Est. arrival: Oct 29–Nov 8

Best Price Guarantee

Lowest Price Online, Guaranteed. If you find the same product for less at another authorized dealer, we’ll beat it.
Easy to Claim: click here to submit your price match request
Qualifications: Item must be identical, in stock, new (not refurbished/open-box), and sold by an authorized dealer. Total cost (including shipping & tax) must be lower.
Peace of Mind: All details you provide are kept completely confidential. We use this information only to verify the price.

Installation

Need installation support? We’ll help you find a qualified pro.

Click here to submit a request.

Request a Quote

Need a price or shipping estimate? Click here to request a quote.

Photo Gallery

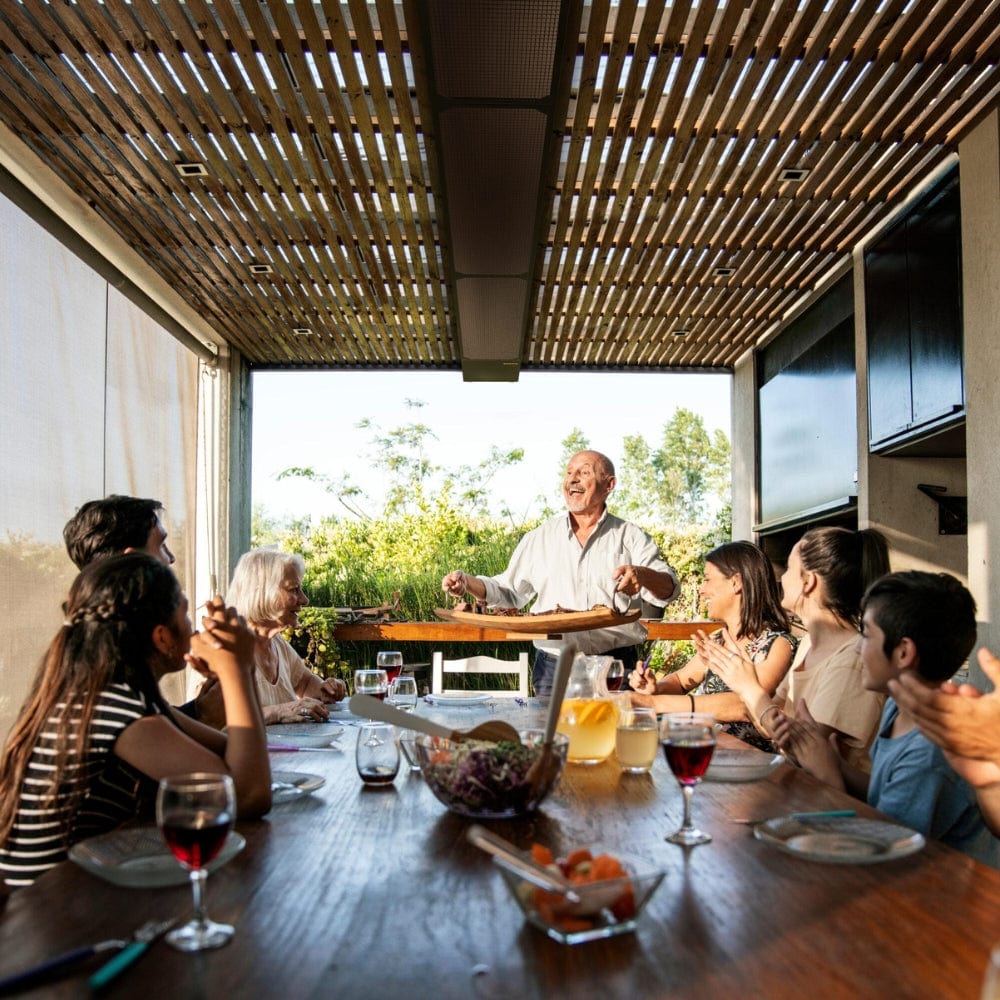

Enjoying lunch on a patio with the PhantomSchwank Wall/Ceiling-Mounted Gas Patio Heater

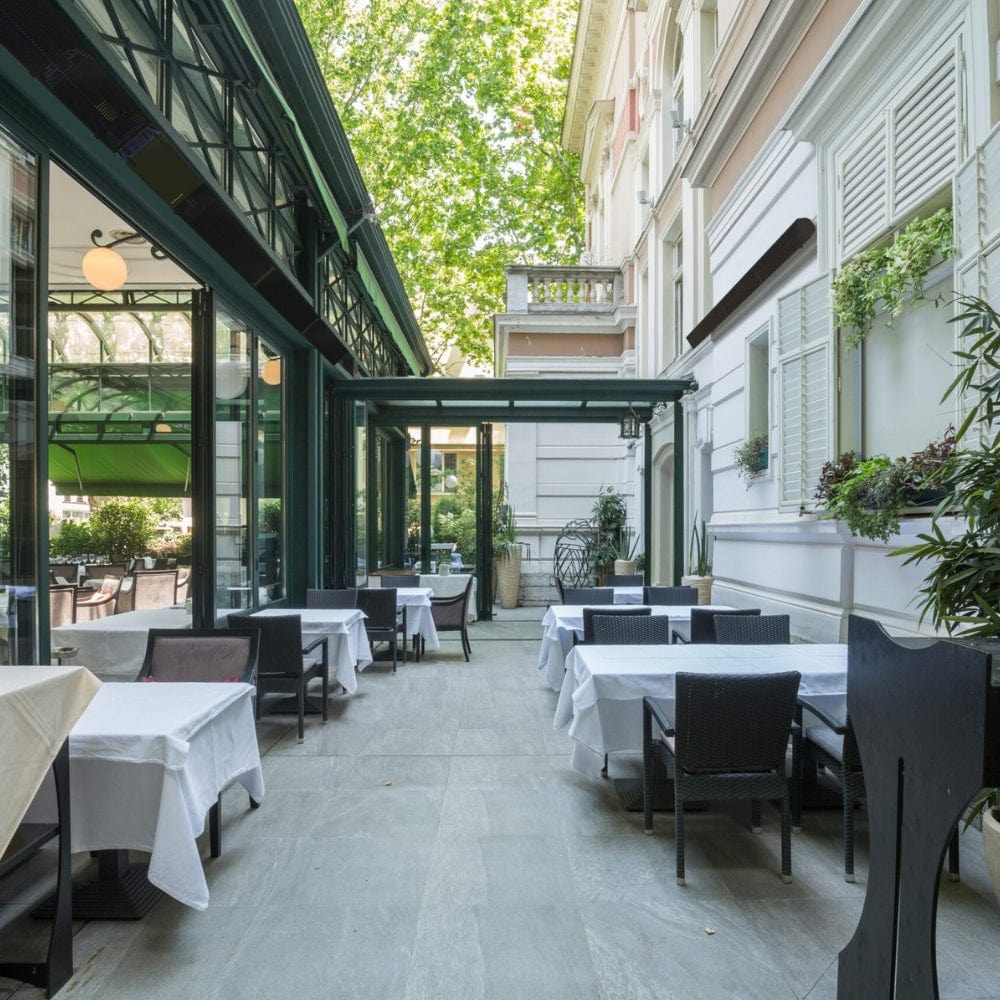

PhantomSchwank Wall/Ceiling-Mounted Gas Patio Heater at a restaurant

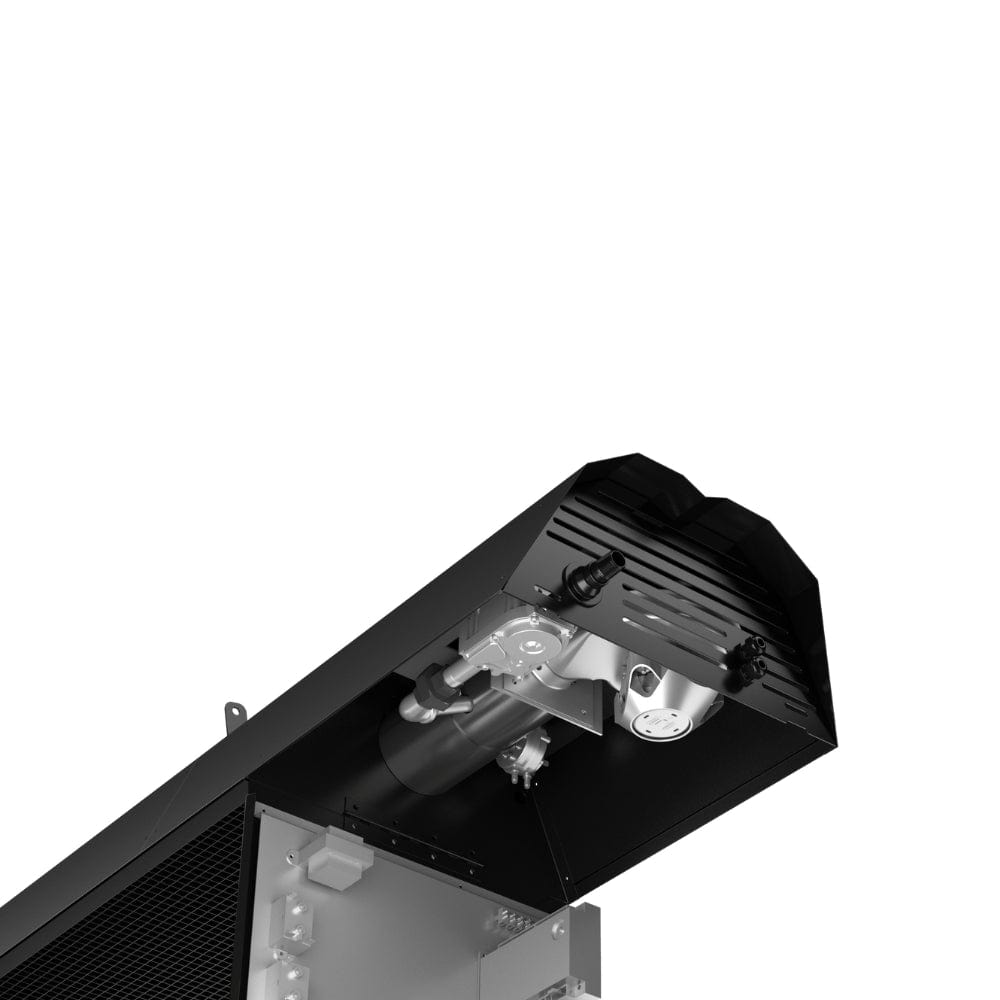

easy access for natural/liquid propane conversion

Description

Schwank Authorized Retailer

Imagine having complete control over your outdoor heating, right at your fingertips. This state-of-the-art smart gas patio heater combines cutting-edge smart technology with a sleek, contemporary design, making it the ideal choice for tech-savvy homeowners, contractors, and restaurant owners who demand both style and functionality.

Enjoy the convenience of controlling your phantomSchwank via a mobile app or web browser, allowing you to adjust settings, program weekly schedules, and toggle between high and low heat with just a few taps. Thanks to its app, you can utilize its advanced zoning capabilities to precisely control the warmth in targeted areas, optimizing efficiency and comfort like never before. Elevate your outdoor living experience with the sophistication and convenience of this smart patio heater.

Experience the difference of marine-grade aluminum alloy construction, ensuring durability in saltwater environments that are prone to rusting. Its ultra-low clearances and versatile mounting options allow seamless integration with your outdoor setting.

Don't miss out on this opportunity to revolutionize your outdoor space! Order now and start savoring the ultimate in smart patio heating technology! Take advantage of our free shipping offer and order your phantomSchwank today.

Product Manual

Specs

Brochure

PhantomSchwank Gas Patio Heater Videos:

Specifications:

Model Number:	STP-TAXX-10-BN
Manufacturer:	Schwank
Series:	phantomSchwank
Indoor/Outdoor:	Outdoor
Fuel Type:	Natural Gas
Installation:	Wall/Ceiling Mounted or Ceiling-Suspended
Material:	Marine-Grade Anodized Aluminum
Grade:	Marine-Grade
Ignition:	Electronic
Heater Type:	Infrared Radiant Tube Heater
BTUs:	12 ft Long (Low Output): 35,000-50,000 BTUs 12 ft Long (High Output): 60,000-80,000 BTUs 17 ft Long: 80,000-115,000 BTUs
Volts:	120V
Dimensions:	12 ft Long (Low Output): 16.59" H x 146.36" W x 9.48" D 12 ft Long (High Output): 16.59" H x 146.36" W x 9.48" D 17 ft Long: 16.59" H x 202.36" W x 9.48" D
Weight:	12 ft Long (Low Output): 95 lbs 12 ft Long (High Output): 96 lbs 17 ft Long: 127 lbs
Certifications:	UL Listed, CSA Certified
Warranty:	Burner: 10 years Tubes: 10 years Components: 3 Years

Recommendations:

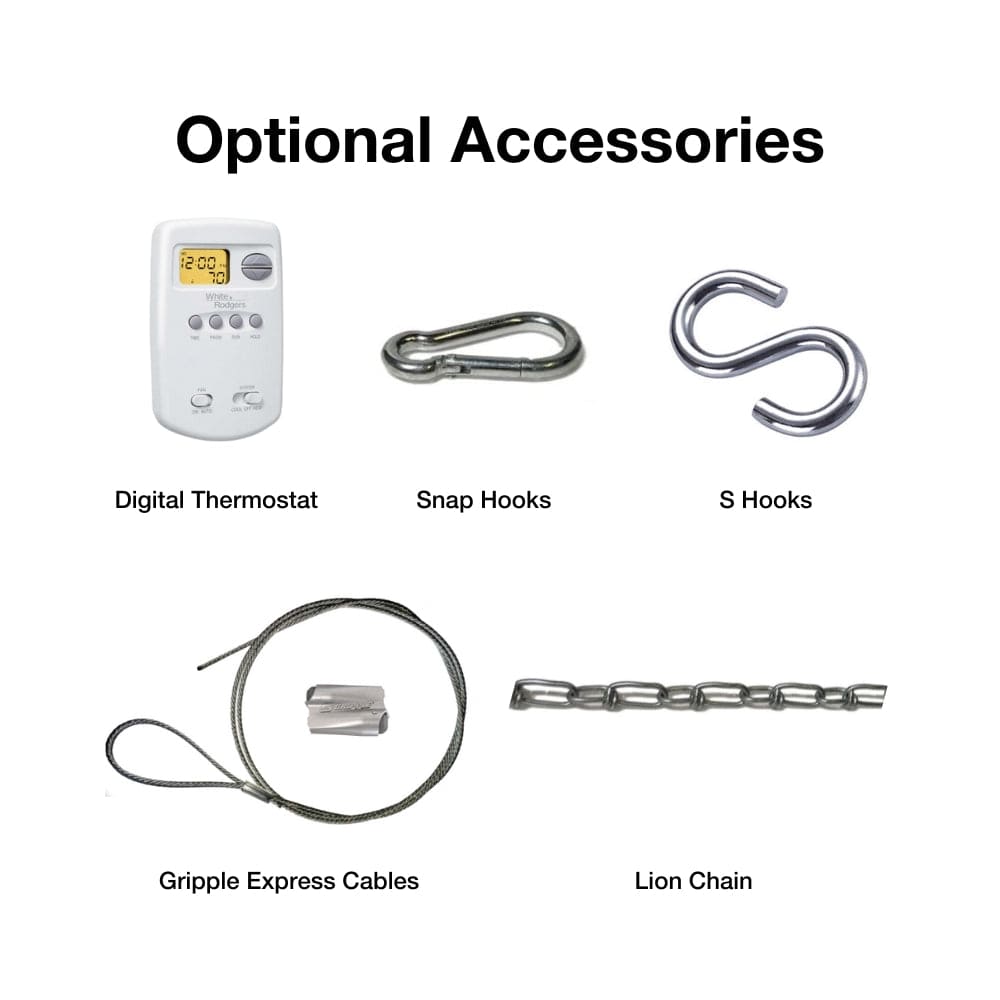

Maximize your outdoor heating experience with these add-ons. Wall/ceiling mounting kits are available and exclusively designed for phantomSchwank heaters. Enhance convenience with a rotary control or digital thermostat, offering additional controls when Wi-fi isn't available.

To suspend your phantomSchwank from the ceiling, purchase a lion chain, snap hooks, 's' hooks, or gripple express cables separately. If you plan to use your patio heater with liquid propane, you'll need to add a conversion kit.

Features

Built-in Wi-Fi control from an app or web browser: on and off, high and low, and weekly schedules
Group several heaters into zones that run on their own schedules
Works with Google smart devices and Schwank.ONE
Two heat stages, so it can drop to low once the space is warm
Fully enclosed, wind-resistant design
Marine-grade aluminum housing, suited to coastal locations
Quiet EC motor, about 55 to 65 dB
Screwless latch and swing-down cabinet for service access
Converts in the field from natural gas to propane with the matching kit

Specifications & Manuals

Fuel Type

Liquid Propane, Natural Gas
Installation

Outdoor, Wall Mounted, Ceiling Mounted
Style

Panel
Aesthetic

Industrial
Width

146.36"
Height

16.57"
Depth

9.48 in
Weight

95 lbs (approx. shipping weight)
BTU Output

35,000 - 50,000 (low / high stage)
Heat Coverage

200 sq. ft.
Voltage

120V
Ignition Type

Direct Spark Ignition (DSI)
Mounting Height

8 - 17 ft.
Material

Aluminum
Color

Black
Marine Grade

Marine Grade, Marine Grade Available
Certifications

UL Listed
Warranty

10-Year Burner and Tubes, 3-Year Components
Manuals

📄 phantomSchwank-Manual.pdf
📄 phantomSchwank Specs.pdf
📄 phantomSchwank Brochure.pdf

What's In The Box

Patio Heater Assembly - 1 set
Hardware Kit - 1 set
User's Manual - 1 pc.

PhantomSchwank Wall/Ceiling-Mounted Natural Gas Outdoor Heater FAQ's

Can the phantomSchwank run on propane?

Yes, with a conversion kit. It ships set up for natural gas, and Schwank makes a field conversion kit for each model. The kit has to match the heater's BTU rating, so the 50,000, 80,000 and 115,000 BTU models each take a different one.

Does the phantomSchwank need electricity?

Yes. Each heater needs a grounded 120V, 60Hz supply sized for 145VA, which powers the blower, the spark ignition and the wireless controls. Plan the electrical run to the mounting location alongside the gas line.

Can I install the phantomSchwank on a covered patio?

Yes, as long as it still counts as outdoors under Schwank's definition. Any of these qualifies: walls on every side but no roof; a roof with no more than two side walls; or a roof with three side walls, as long as at least 30 percent of the perimeter stays permanently open. Enclose it more than that and it no longer qualifies as an outdoor installation. It is not approved for installation inside a home.

What is the difference between the two 12 foot phantomSchwank models?

Heat output. Both are 12 feet long, but the 80,000 BTU model runs 80,000 on high and 60,000 on low, against 50,000 and 35,000 on the 50,000 BTU model. Schwank rates the 80,000 for about 300 square feet instead of about 200. It also needs more room beneath it: 62 inches of clearance to combustibles instead of 42 when hung level.

How much clearance does the phantomSchwank need?

The most is below it. Hung level, Schwank calls for 42 inches beneath the 50,000 BTU model, 62 inches beneath the 80,000 and 74 inches beneath the 115,000, measured from the reflector. It needs 4 to 5 inches above, 20 to 26 inches at the sides, 24 inches at the burner end and 48 inches at the tube end. The spec sheet on this page gives the figures for angled mounting.

How do the phantomSchwank smart controls work?

The heater connects to your Wi-Fi and runs from an app or a web browser. You can switch it on and off, change between high and low, set weekly schedules, and group several heaters into zones that run independently. It also works with Google smart devices and Schwank.ONE.
