NDHEV.40SHNG

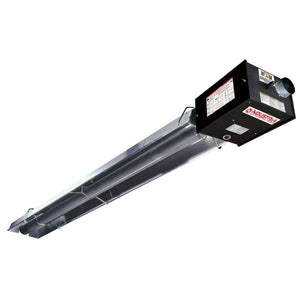

NDUSTRIA™ NHE Infrared Overhead Straight Gas Heater

Gas Type
Size
  • Ndustria Authorized Retailer Badge

    NDUSTRIA™ NHE Infrared Overhead Straight Gas Heater is designed to provide high amounts of heat for large areas. Made with high-quality materials, this heater can withstand extreme weather conditions. Fuel it with Natural Gas or Liquid Propane.

    This infrared heater is not only efficient in energy consumption but also in saving space. Its overhead installation on the ceiling allows you to utilize more floor space for different activities.

    Mount it at a level or tilted angle to direct the heat output. Available in six different BTUs - 40000, 60000, 80000, 100000, 125000, and 150000. This heater can be installed unvented provided there is enough air circulation.

    Ideal for indoor or outdoor recreational areas, a single NDUSTRIA™ heater can cover large spaces where multiple heaters are usually required. Equip this unit in your commercial space and enjoy its heating efficiency that will last for years with its durable components.

    If you are installing heaters above 4,000 ft. elevation, please contact support@patiofever.com.

    Download

     Product Manual

    Download Specs

    Key Features:

    • High heat output that covers 20 ft. to 40 ft. of floor space
    • Fully automatic Direct Spark Electronic Ignition System for convenient operations.
    • Heavy-duty outdoor heater. Built to withstand wind, rain, and other elements.
    • Compatible with Natural Gas or Liquid Propane
    • Permanently installed and connected to gas lines so changing of propane tanks is not necessary.

    Other Features:

    • The included hangers allow you to install the heater horizontally or at 45°, just attach it to a chain.
    • Electrostatically applied black powder coat finish
    • Unvented installation for spaces with enough air circulation
    • CSA approved and ANSI certified
    • Made in the USA, ensures high-quality materials and workmanship.

    Specifications:

    Model Number: NDHEV.xxSHxx
    Manufacturer: NDUSTRIA™
    Series: NHE
    Indoor/Outdoor: Indoor and Outdoor
    Fuel Type: Natural Gas / Liquid Propane
    Installation: Ceiling Mounted
    Tubing Material: Aluminized Steel
    Grade: Commercial
    Ignition: Direct Spark Electronic Ignition
    Heater Type: Infrared
    Heating Area: 400 sq. ft. and up
    Safety Shut Off Valve With Safety Shut-Off
    BTUs: 40,000 / 60,000 / 80,000 / 100,000 / 125,000 / 150,000
    Volts: 120V
    Amps: 1
    Dimensions: 137.5" /  257.5" /  377.5" / 497.5" L x 9.5" H x 14.19" D
    Weight: 92 lbs / 126 lbs / 160 lbs / 201 lbs
    Certifications: CSA Approved / ANSI Certified
    Warranty: 3 Year Limited Warranty

    Recommendations:

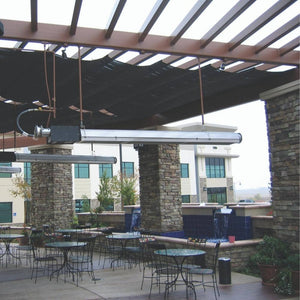

    When installing the heater on the ceiling, it is best to mount the unit in a level orientation so the reflectors will direct the heat straight down. Mounting the heater at a 45-degree angle will concentrate the heat towards the center of your patio space.

    For the best heating experience, a specified mounting height for each model can be found on the specs sheet.

    This heater can be installed unvented provided there is enough air circulation and clearances to combustibles. Covered and walled (temporary or permanent) spaces may need venting installed.
