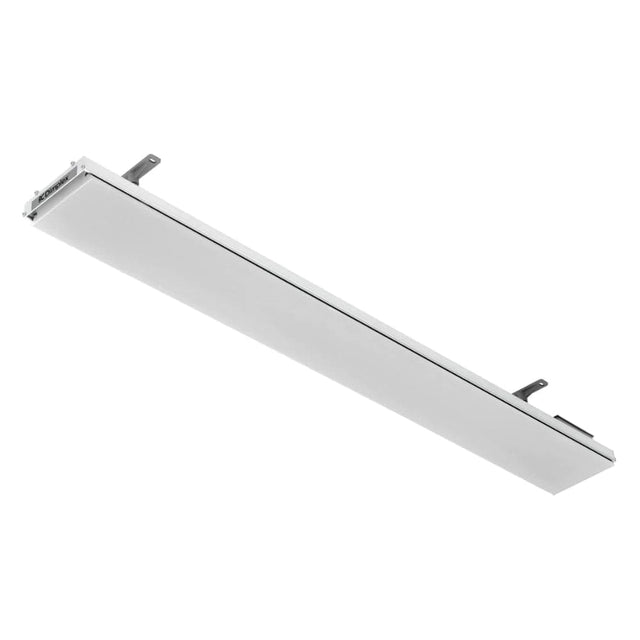

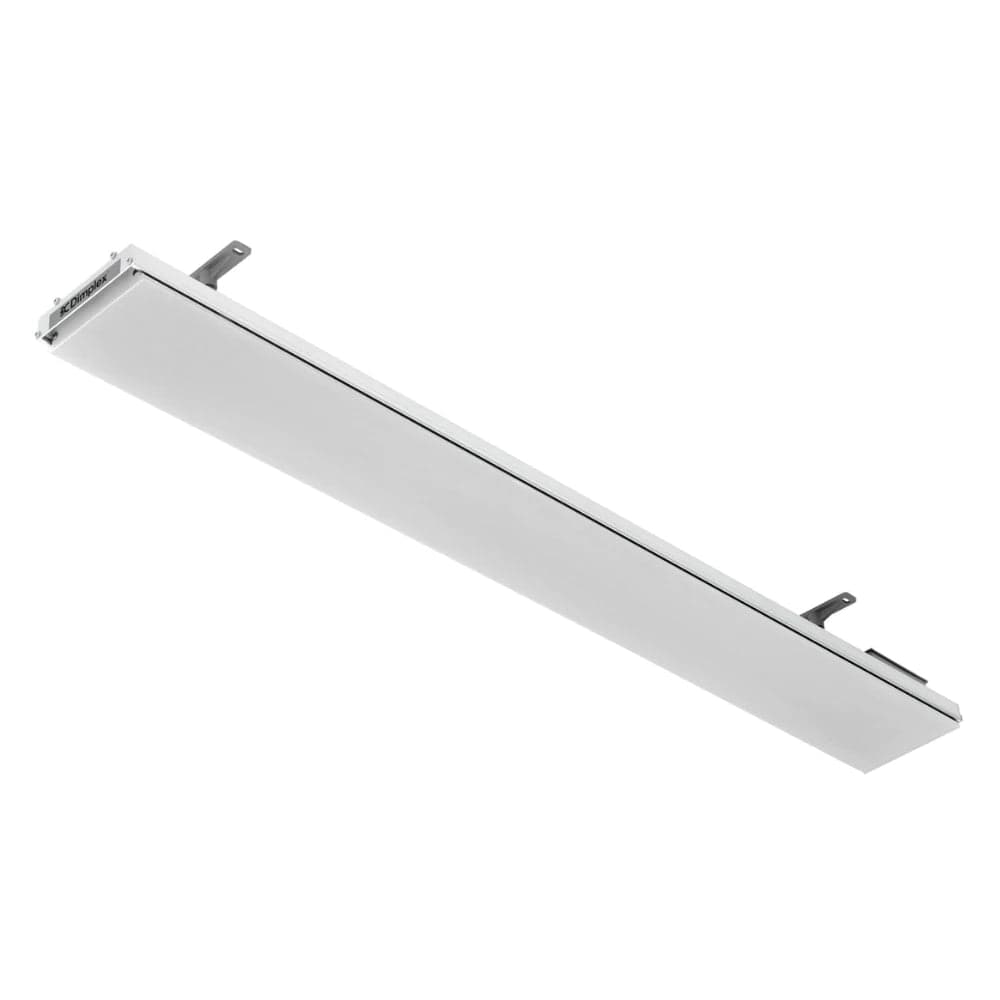

Dimplex DLW Series 70-Inch 3200W 240V White Long Wave Infrared Electric Heater

Regular price $1,549.99

Call to Order

Call or text 1-866-713-4844 to get the best deal!

Avoid long lead times - explore similar models in stock.
Call / text 866-713-4844 or email support@patiofever.com.

Best Price Guarantee

  • Lowest Price Online, Guaranteed. If you find the same product for less at another authorized dealer, we’ll beat it.
  • Easy to Claim: click here to submit your price match request
  • Qualifications: Item must be identical, in stock, new (not refurbished/open-box), and sold by an authorized dealer. Total cost (including shipping & tax) must be lower.
  • Peace of Mind: All details you provide are kept completely confidential. We use this information only to verify the price.

Installation

Need installation support? We’ll help you find a qualified pro.

Click here to submit a request.

Request a Quote

Need a price or shipping estimate? Click here to request a quote.

Request a Quote

Price Match Request

Loading...

Installation Support Request

Dimplex DLW3200W24 Video

Description

DimplexAuthorized Dealer

Dimplex DLW Series 70-Inch 3200 Watt 240V White Long Wave Infrared Electric Heater is a modern heater for indoor and Outdoor Enclosed Areas that can be Wall or Ceiling Mounted with the included Standard Mounting Brackets so you can focus the heat in a specific area.

With 3200 watts of heating power, this outdoor/indoor long-wave infrared heater runs much cooler at 300°C and takes around 8 minutes to warm up. In optimal conditions, these units can heat up to 60 sq ft. for an outdoor enclosed area or up to 78 sq ft indoors, and depending upon the ambient temperature, the unit takes approximately 15 minutes to heat to maximum temperature and approximately 30 minutes to cool down, making it perfect for those chilly days and nights.

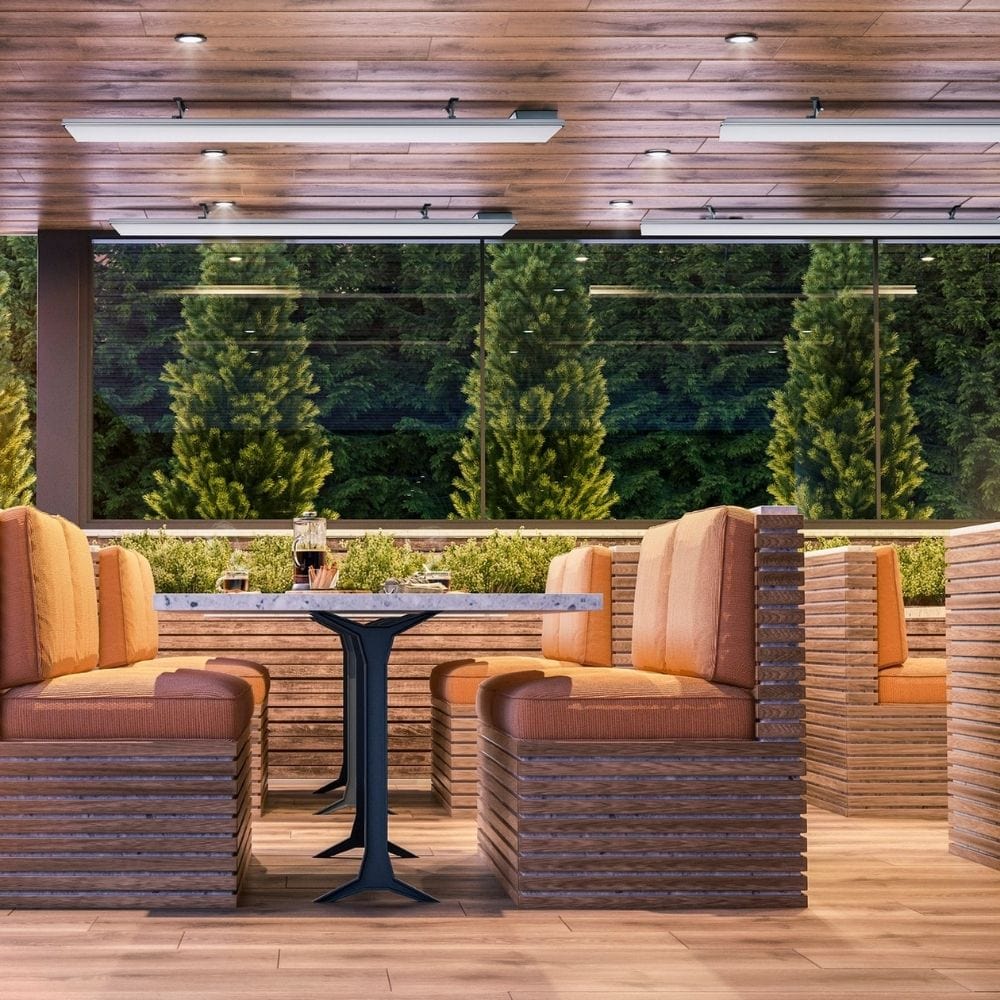

The ideal mounting position is on the ceiling, directly above the area to be heated. For ceiling heights greater than 105", suspended mounting or installation with the optional extension poles (sold separately) is recommended to reduce the height of the heater from 96" to 105". This will increase the effectiveness of your DLW heater.

The DLW Series heater uses long-wave infrared technology to directly heat people and objects in the room, rather than wasting energy heating the air around them. Take advantage of our free shipping. Order now!

Also available in Black

Note: Please consider that weather conditions such as strong winds and extremely cold temperatures may affect the heating area.

Need help determining the right heater and setup for your space and heating needs? Give us a call at 1-866-713-4844 or email us at support@patiofever.com and we'll be happy to help!

Download Product Manual

Download Brochure

Dimplex DLW Series Long Wave Infrared Electric Heater Videos:

Specifications:

Model Number: DLW3200W24
Manufacturer: Dimplex
Series: DLW
Indoor/Outdoor: Indoor / Outdoor
Fuel Type: Electric
Installation: Wall / Ceiling Mounted
Material: Anodized Aluminum
Grade: Commercial / Residential
Water Resistance: IP 55
Heater Type: Infrared Heater
Heating Area: 60 sq ft (Outdoor), 78 sq ft (Indoors)
BTUs: 10,918
Watts 3,200
Volts 240
Amps 13.3

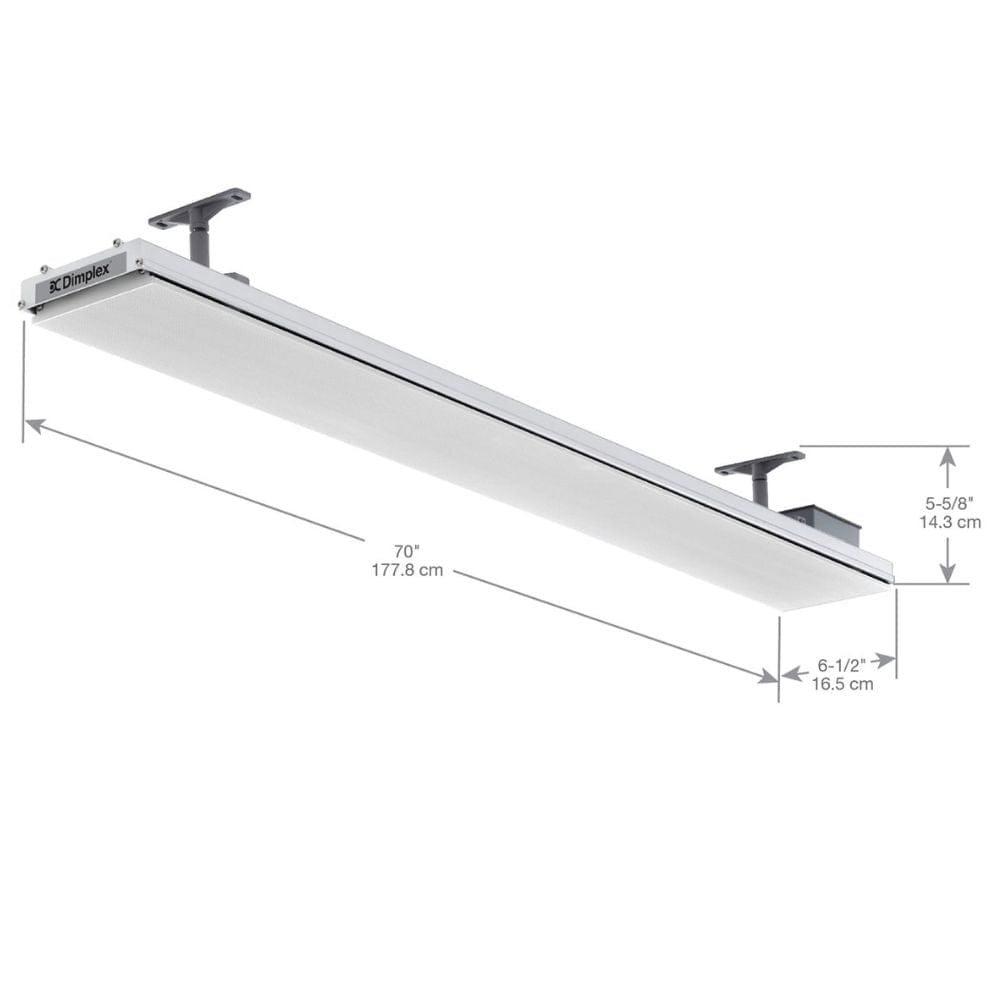

Dimensions: 2" H x 70" L x 6.5" W
Weight: 22 lbs
Certifications: UL Listed
Warranty: 1 Year

Recommendations:

When installing outdoors we recommend the heater is positioned where it will be protected from exposure to extreme weather such as snow and ice.

It is recommended to use a timer switch that will automatically turn off the heater after a preset amount of time

Having a heater that's too high for your room can be frustrating because you're not getting the most out of it. For ceiling heights greater than 105", installation with the optional Extension Mount Poles is recommended.

Features

  • Dimplex DLW Series Infrared Electric Heater is designed for Indoor/Enclosed Outdoor use
  • Wall or Ceiling Mounted and comes with a pair of standard mounting brackets
  • IP55 Weatherproof construction can withstand light to moderate rain or sustained low water pressure
  • Anodized Aluminum Casing protects against corrosion, enhances aesthetic qualities, resists scratching, and is one of the most durable surface finishes available.
  • Designed for permanent hardwired installations on a dedicated circuit.
  • Effective radiant heat that warms like the sun, heating people and objects with zero glare
  • Fully assembled, simply mount and hardwire using the easy to access top mounted junction box
  • The heater must be mounted at least 8 feet above ground level
  • The adjustable brackets allow direct ceiling or wall mounting and come with preset angle options of parallel, 22.5 °, or 45°.

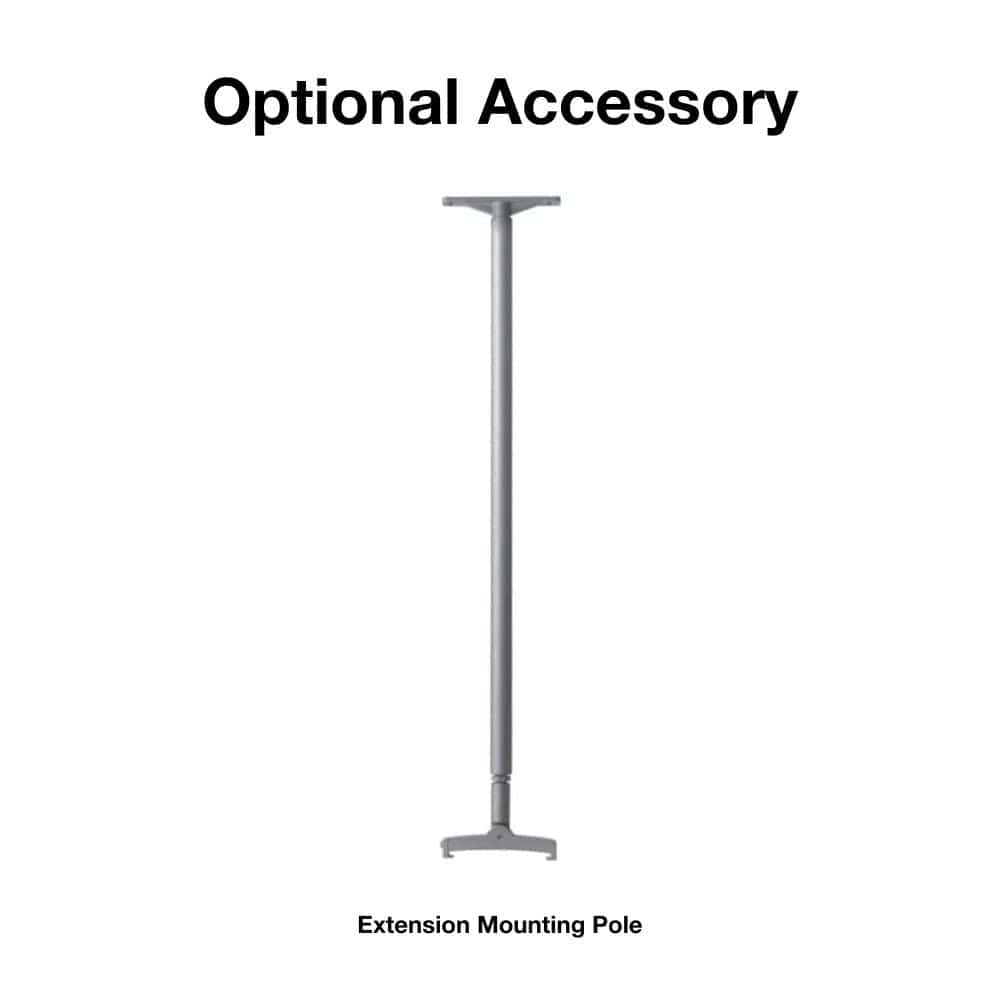

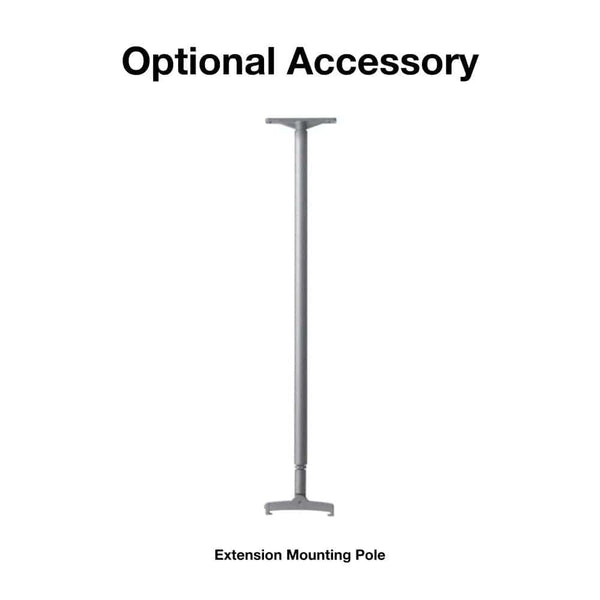

  • Extension poles for mounting on higher ceilings are sold separately
  • Heating Area:
  • Indoor: 78 sq. ft.
  • Outdoor (Enclosed Area) 60 sq. ft.
  • 10,918 BTUs
  • 3200 Watts
  • 240 V
  • Dimensions: 2" H x 70" L x 6 1/2" W
  • Weight: 22.0 lbs
  • 1-Year Limited Warranty

Specifications & Manuals

  • Fuel Type
    Electric
  • Venting Type
    Ventless
  • Installation
    Indoor, Outdoor, Wall Mounted, Ceiling Mounted
  • Style
    Panel
  • Aesthetic
    Modern
  • Width
    70 in
  • Height
    2 in
  • Depth
    6 1/2 in
  • Weight
    22 lb
  • BTU Output
    10,918 BTU
  • Heat Coverage
    Indoor: 78 sq. ft. / Outdoor (enclosed): 60 sq. ft.
  • Voltage
    240V
  • Wattage
    3,200W
  • Circuit Requirement
    Hardwired
  • Mounting Height
    8 ft. minimum
  • Material
    Aluminum
  • Color
    Black, White
  • IP Rating
    IP55
  • Water Resistance
    Can withstand light to moderate rain or sustained low water pressure
  • Warranty
    1-Year Limited Warranty
  • Manuals

What's In The Box

  • DLW Heater - 1 pc.
  • User's Manual - 1 pc.
  • Mounting Bracket - 2 pc.
