Ndustria | Gas Patio Heater | NDBH.40SHNG

Ndustria | Gas Patio Heater

NDBH.40SHNG

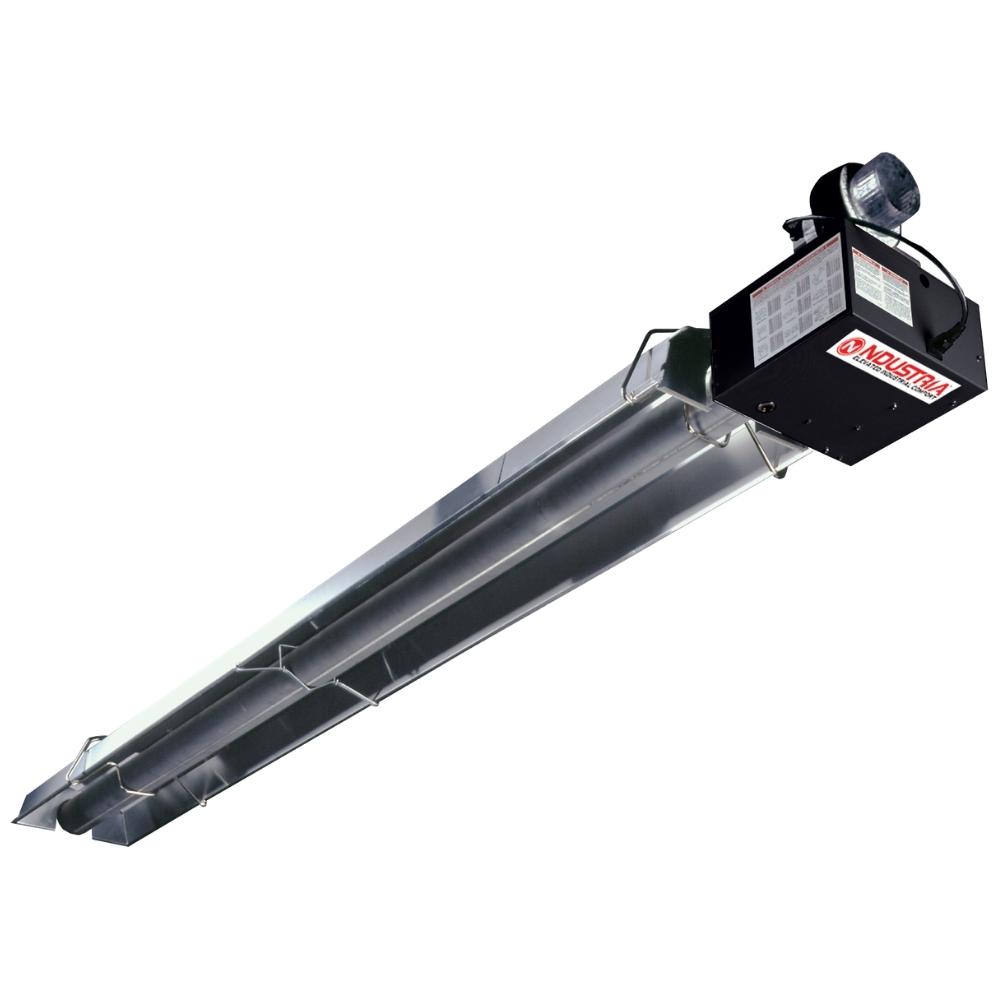

NDUSTRIA™ NBH Infrared Overhead Straight Gas Heater

$1,808.26 $2,350.74

↓ Read Full Description

Gas Type

Size

Free delivery to contiguous U.S. + free 30-day returns. Est. arrival: Oct 30–Nov 9

Best Price Guarantee

Lowest Price Online, Guaranteed. If you find the same product for less at another authorized dealer, we’ll beat it.
Easy to Claim: click here to submit your price match request
Qualifications: Item must be identical, in stock, new (not refurbished/open-box), and sold by an authorized dealer. Total cost (including shipping & tax) must be lower.
Peace of Mind: All details you provide are kept completely confidential. We use this information only to verify the price.

Installation

Need installation support? We’ll help you find a qualified pro.

Click here to submit a request.

Request a Quote

Need a price or shipping estimate? Click here to request a quote.

Photo Gallery

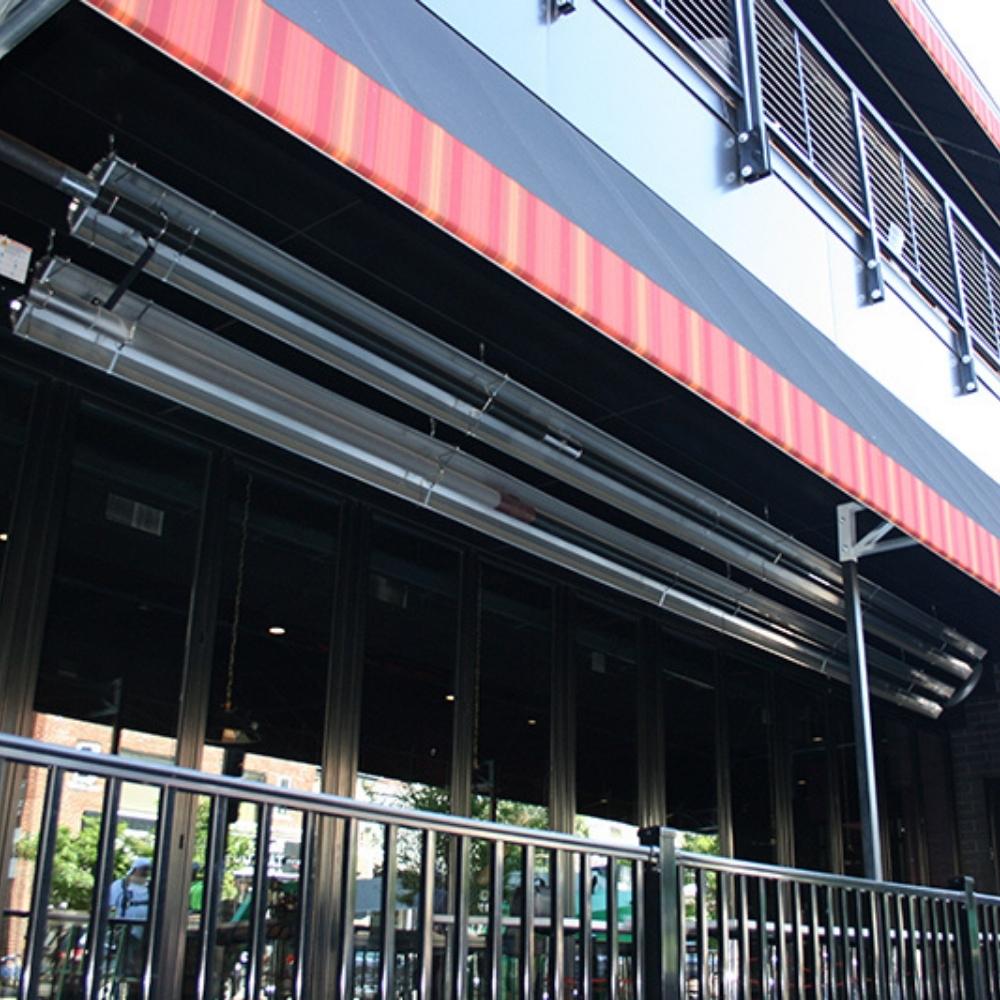

NDUSTRIA NBH Indoor/Outdoor Infrared Straight Gas Heater in covered patio

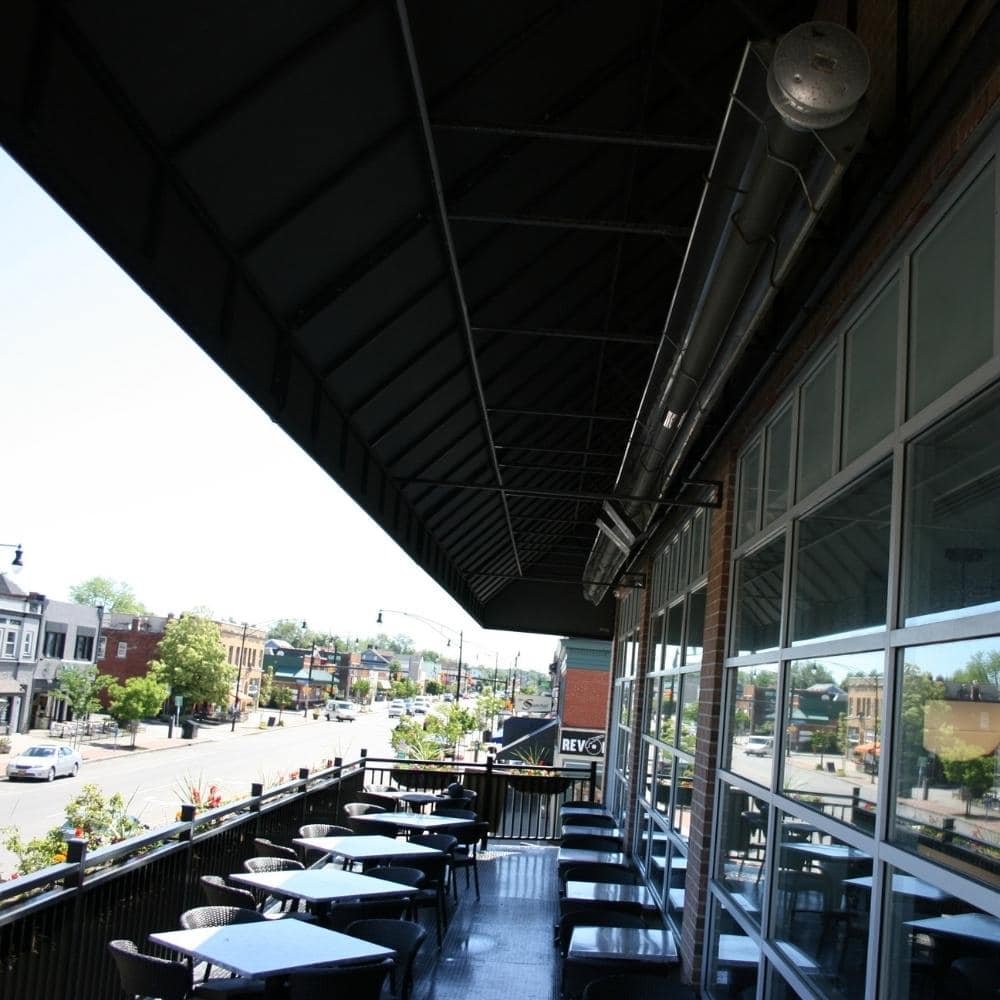

Ndustria NBH Indoor Infrared Straight Gas Heater Lifestyle

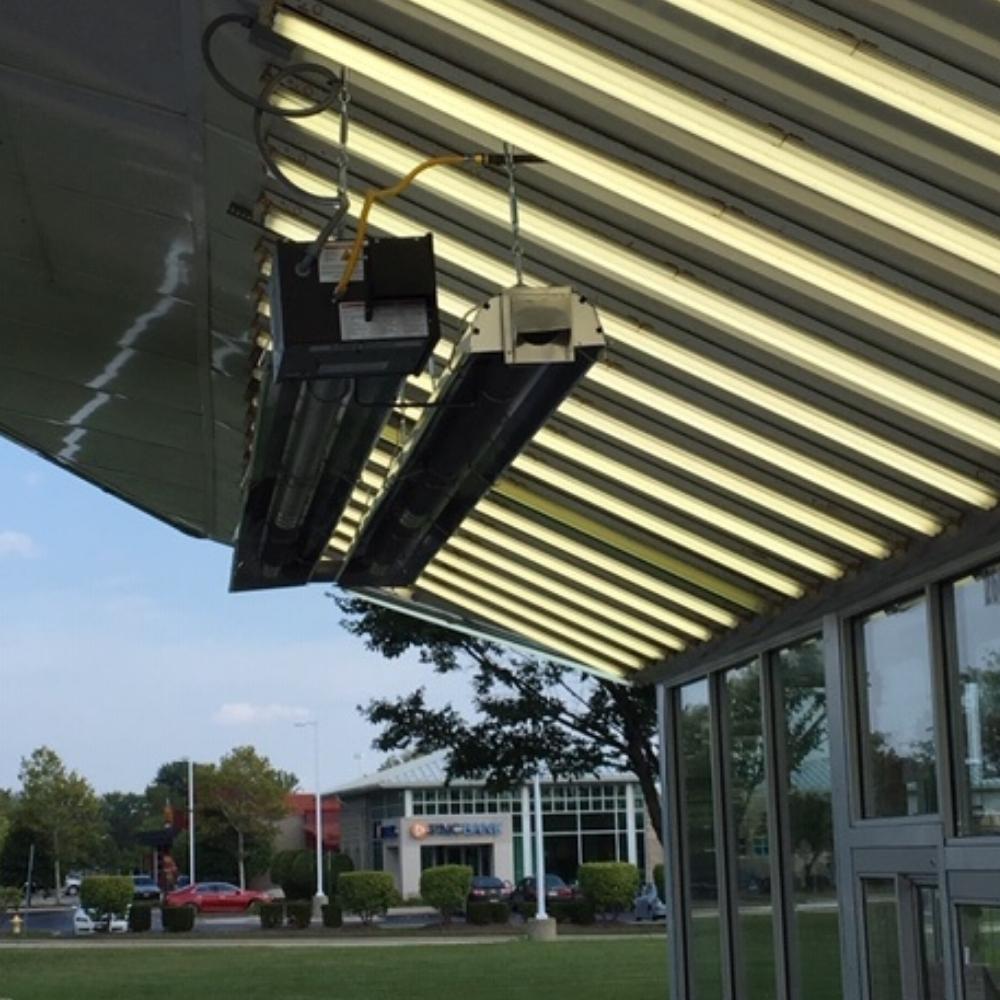

Ndustria NBH Indoor Infrared Straight Gas Heater Under A Roof Cover - lifestyle view

Description

NDUSTRIA™ NBH Infrared Overhead Straight Gas Heater is designed to provide high amounts of heat for large indoor or outdoor covered areas. Made in the USA with high-quality materials, this heater will surely last for a long time. Fuel it with Natural Gas or Liquid Propane.

This infrared heater is not only efficient in energy consumption but also in saving space. Its overhead installation on the ceiling allows you to utilize more floor space for different activities.

Mount it at a level or tilted angle to direct the heat output across an area up to 40 sq ft. Available in eight different BTUs - 40000, 60000, 80000, 1030000, 115000, 125000, 140000, and 150000. This heater can be installed unvented provided there is enough air circulation.

Ideal for covered outdoors or indoor restaurants, a single NDUSTRIA™ heater can cover large spaces where multiple heaters are usually required. Equip this unit in your recreational space and enjoy its heating efficiency that will last for years with its durable components.

Note: The maximum area is heated in mild climates where evening temperatures are at least 40ºF. To optimize its performance, please see the recommendations below on mounting the heater properly.

Need help determining the right heater and setup for your space and heating needs? Give us a call at 1-866-713-4844 or email us at support@patiofever.com and we'll be happy to help!

If you are installing heaters above 4,000 ft. elevation, please contact support@patiofever.com.

Product Manual

Spec s

Specifications:

Model Number:	NDBH.xxSHxx
Manufacturer:	NDUSTRIA™
Series:	NBH
Indoor/Outdoor:	Indoors/Covered Outdoors
Fuel Type:	Natural Gas/Propane
Installation:	Ceiling Mounted
Tubing Material:	Aluminized Steel
Grade:	Commercial
Ignition:	Direct Spark Electronic Ignition
Heater Type:	Infrared
Heating Area:	40 sq ft
Safety Shut Off Valve	With Safety Shut-Off
BTUs:	40,000/60,000/80,000/100,000/115,000/125,000/140,000 /150,000
Volts:	120V
Amps:	1
Dimensions:	131"/251"/371"/491" L x 12.5" H x 14.19" D
Weight:	83/117/151/192 lbs
Certifications:	CSA Approved, ANSI Certified
Warranty:	3-Year Limited Warranty

Recommendations:

When installing the heater on the ceiling, it is best to mount the unit in a level orientation so the reflectors will direct the heat straight down. Mounting the heater at a 45-degree angle will concentrate the heat towards the center of your patio space.

For the best heating experience, a specified mounting height for each model can be found on the specs sheet.

Ideally, heaters should be spaced at the same distance as their mounting height to spread heat evenly. For temperatures below 40ºF, it is best to keep the heaters half the distance as their mounting height.

This heater can be installed unvented provided there is enough air circulation and clearances to combustibles. Covered and walled (temporary or permanent) spaces may need venting installed.

Features

Infrared Gas Heater provides warmth indoors and in covered outdoor areas
Included hangers let you install it horizontally or at 45°, just attach it to a chain
Impressively heats 20' to 40' of floor space with high heat output - Perfect for expansive covered patios.
Fully Automatic Direct Spark Electronic Ignition System with 100% Shut-Off
Ceiling Mounted/Overhead Installation frees up more floor space
Unvented installation for spaces with enough air circulation
Choose between Natural Gas and Liquid Propane to suit your needs
Permanently Installed and Connected to Gas Lines- no need to change propane tanks
Electrostatically applied black powder coat finish matches any decor
Corrosion-resistant aluminized tubing and reflectors
Made in the USA to guarantee high-quality construction
Mounting Height:
131" (40000 BTU) model: 8-10 ft.
251" (60000 BTU) model: 10-12 ft.
251" (80000 BTU) model: 12-15 ft.
371" (100000 BTU) model: 12-15 ft.
371" (115000 BTU) model: 15-20 ft.
371" (125000 BTU) model: 15-20 ft.
491" (140000 BTU) model: 20-25 ft.
491" (150000 BTU) model: 20-25 ft.
BTUs:
131" (40000 BTU) model: 40,000
251" (60000 BTU) model: 60,000
251" (80000 BTU) model: 80,000
371" (100000 BTU) model: 100,000
371" (115000 BTU) model: 115,000
371" (125000 BTU) model: 125,000
491" (140000 BTU) model: 140,000
491" (150000 BTU) model: 150,000
Overall Heater Dimensions:
131" (40000 BTU) model: 12.5" H x 131" L x 12.5" W
251" (60000 BTU) model: 12.5" H x 251" L x 12.5" W
251" (80000 BTU) model: 12.5" H x 251" L x 12.5" W
371" (100000 BTU) model: 12.5" H x 371" L x 12.5" W
371" (115000 BTU) model: 12.5" H x 371" L x 12.5" W
371" (125000 BTU) model: 12.5" H x 371" L x 12.5" W
491" (140000 BTU) model: 12.5" H x 491" L x 12.5" W
491" (150000 BTU) model: 12.5" H x 491" L x 12.5" W
Weight:
131" (40000 BTU) model: 83 lbs.
251" (60000 BTU) model: 117 lbs.
251" (80000 BTU) model: 117 lbs.
371" (100000 BTU) model: 151 lbs.
371" (115000 BTU) model: 151 lbs.
371" (125000 BTU) model: 151 lbs.
491" (140000 BTU) model: 192 lbs.
491" (150000 BTU) model: 192 lbs.
Electrical: 120 V, 60 Hz, 1 A
CSA Approved
ANSI Certified
Made in the USA
3-Year Limited Warranty
