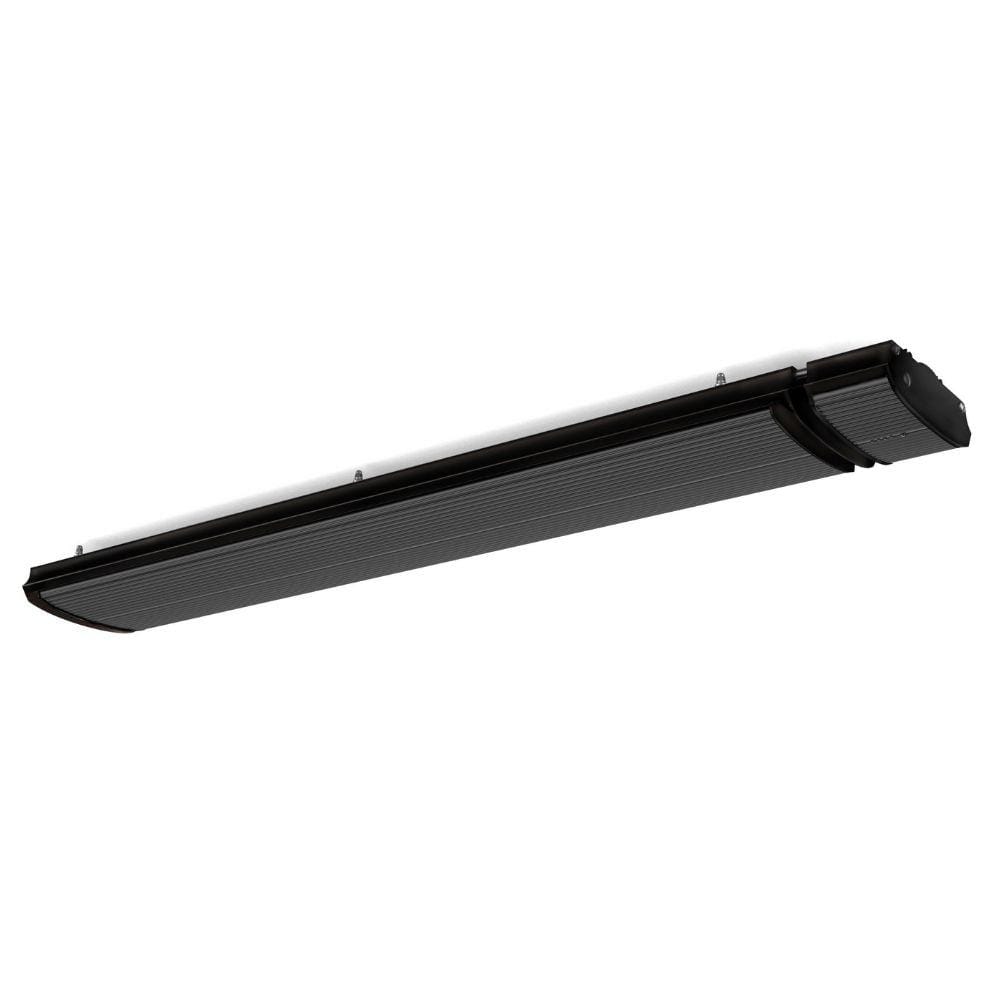

RADtec Design Series is an infrared heater with zero light electric heat panels. Experience optimal comfort with the heat it provides without the harsh lights and orange glow of typical heaters. Available in a standard remote-controlled model and a Wi-Fi-ready model.

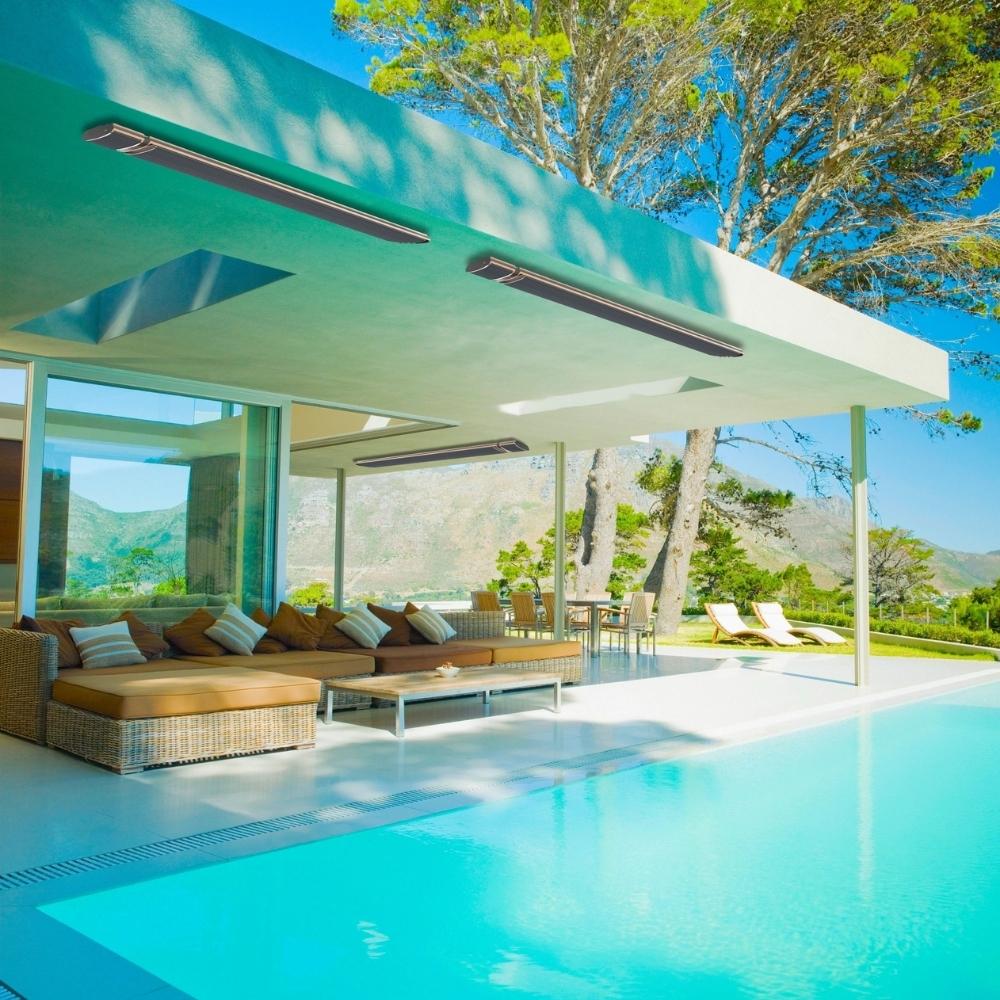

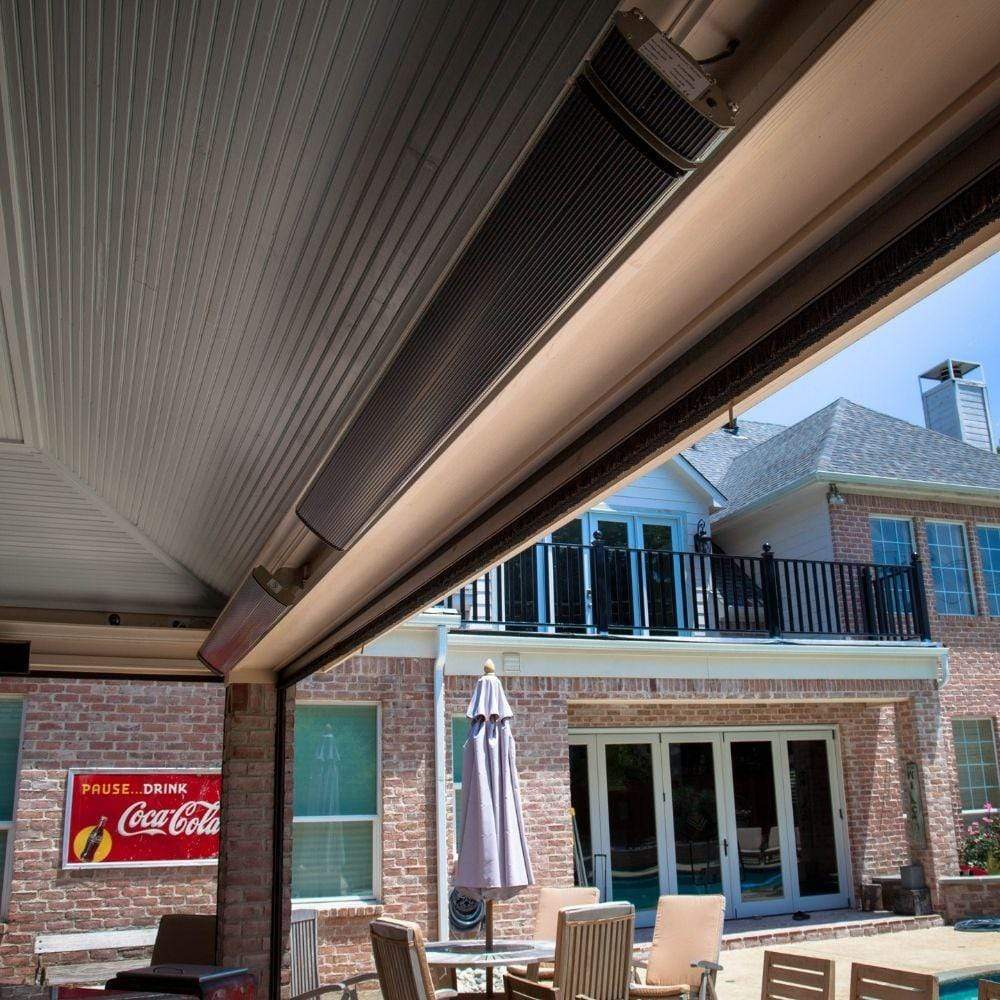

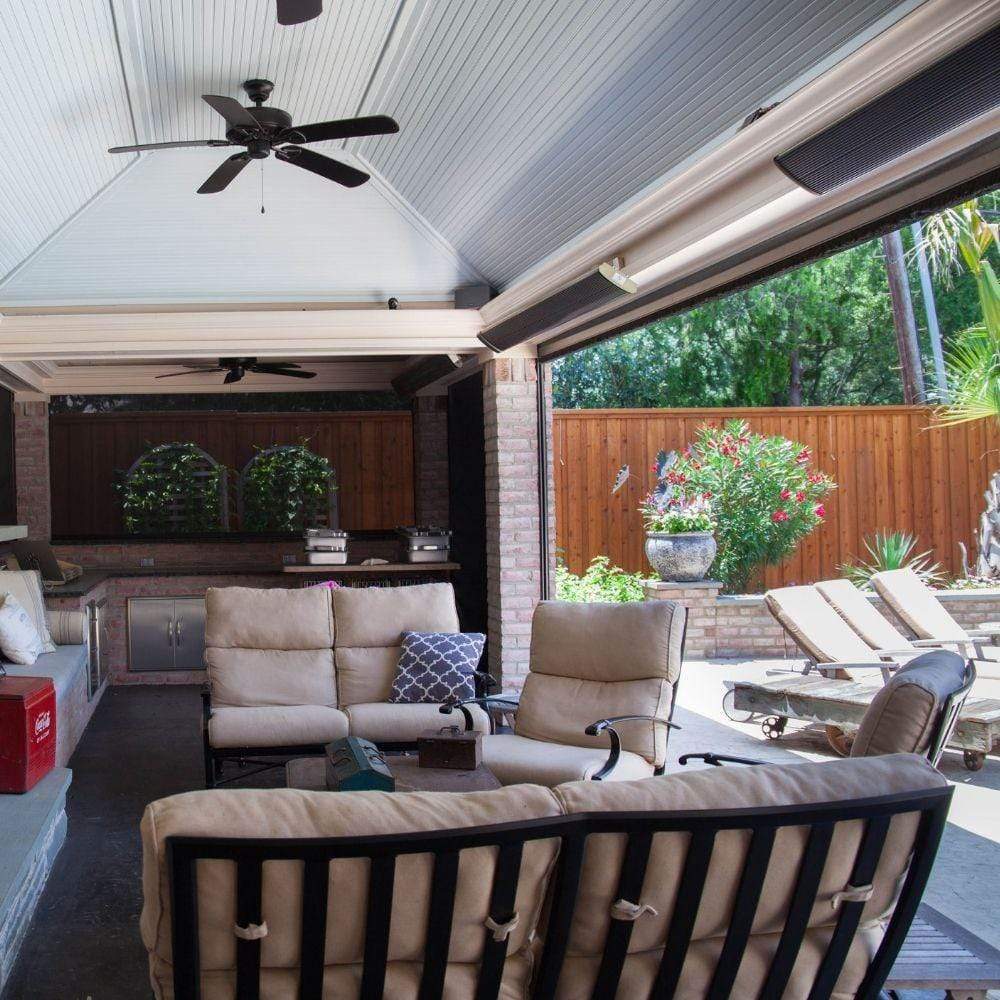

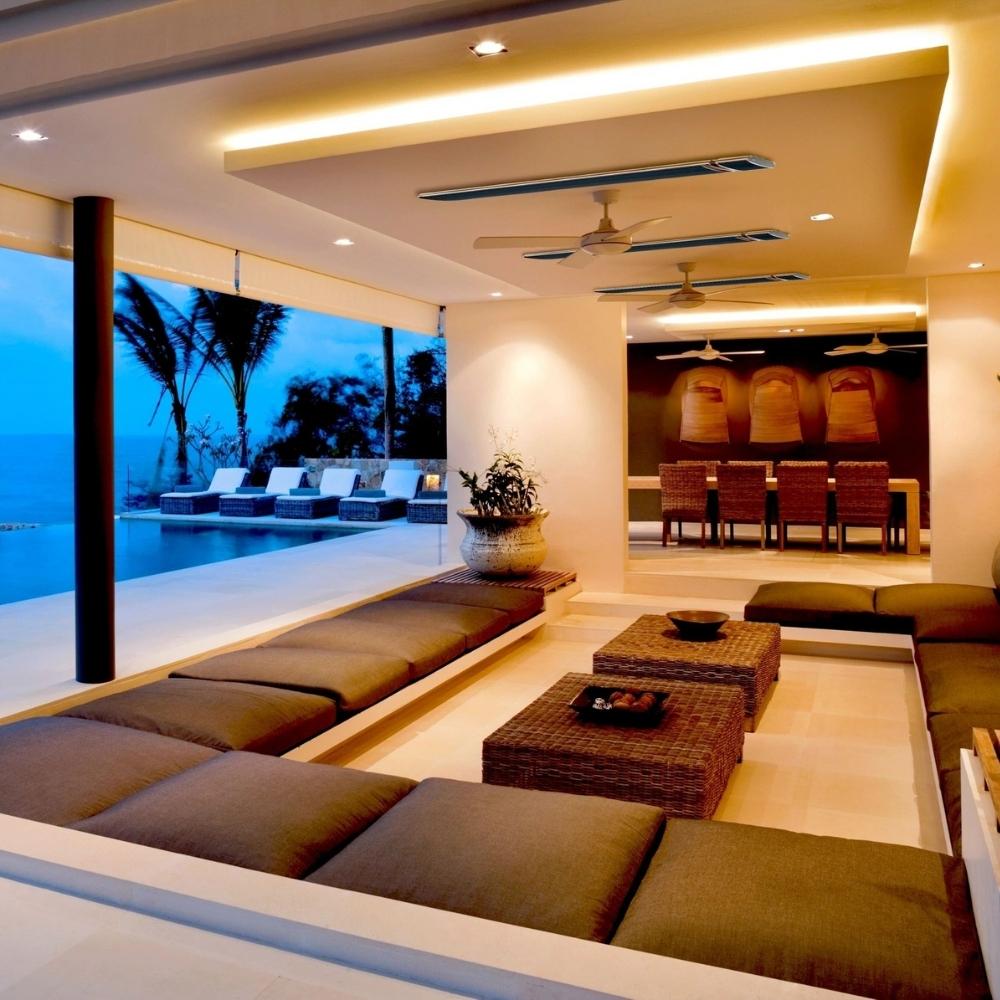

Designed for both indoors and covered outdoors, you can utilize this heater's function anywhere in your home. Mounting brackets are included. Install it on the wall or ceiling and adjust the brackets up to 90 degrees to direct the heat. This infrared heater packs an efficient heating power of 3200 Watts. Enough to heat a 110 sq. ft. indoor space or a 70 sq. ft. covered outdoor porch.

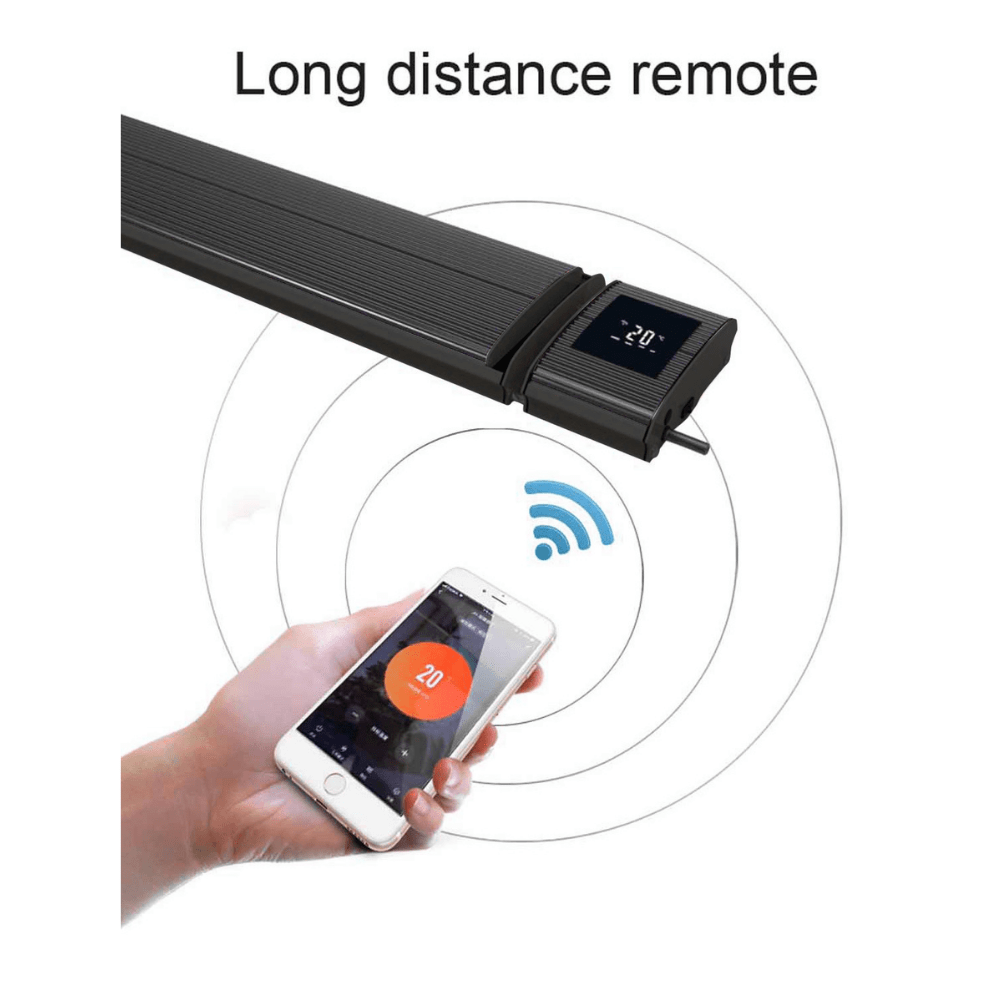

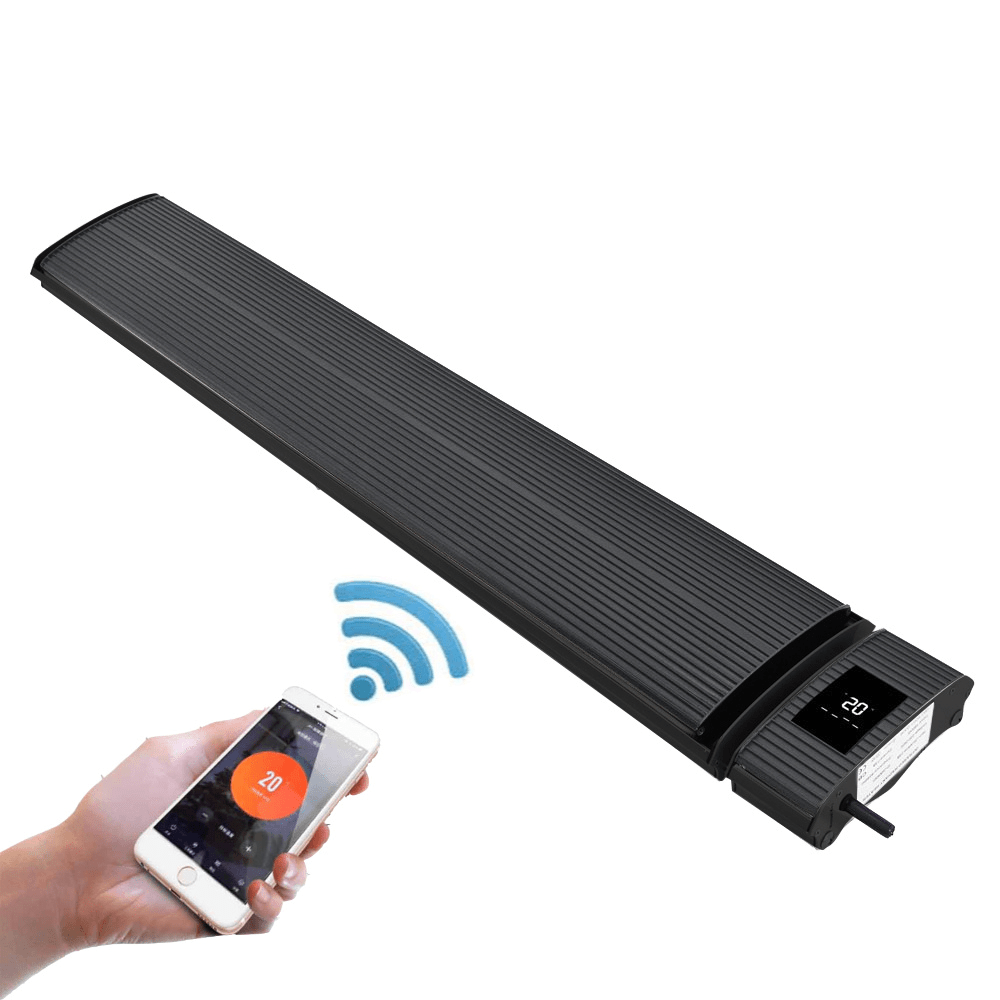

Cycle through its four power levels and set the timer for up to 8 hours with the included remote or you can opt for the WiFi-ready model and operate the unit through your phone.

Get the RADtec Design Series and experience maximum comfort with the heat it provides without straining your eyes. Select the model with the control option that you like. Shop now and take advantage of our free delivery offer!

Also available in other wattages: 1500W, 1800W, and 2400W.

Note: Outdoor heating is optimized in mild weather. Heat intensity and coverage also vary according to the mounting height.

Need help determining the right heater and setup for your space and heating needs? Give us a call at 1-866-713-4844 or email us at support@patiofever.com and we'll be happy to help!

Product Manual

Specs

Key Features:

Zero Light Panel Infrared Electric Heater - Enjoy a warm environment without the harsh orange glow
Available in Standard Remote Controlled or WiFi Smart Controlled
Select from four levels of heat with the Remote Controlled model or set the exact temperature that you find optimal with the WiFi Smart Controlled model
Set a timer for your heater for up to 8 hours
IP54 Water Resistance Rating - Use your heater even in covered outdoors without worry as it is splash resistant

Other Features:

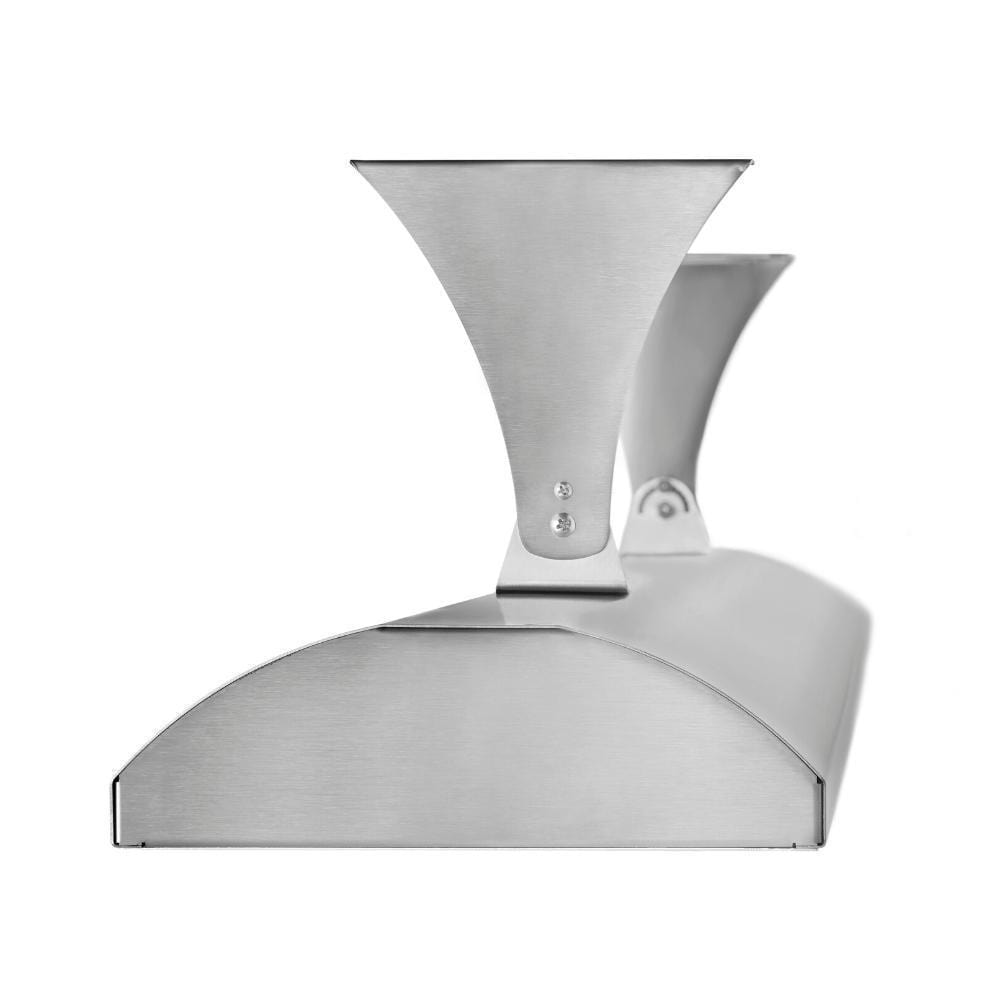

Mounting brackets are included - Mount your heater on the wall or ceiling
Adjustable mounting brackets up to 90 degrees - Direct the heat of the unit for more efficient heating
LED Light indicator (Standard Remote ONLY) or Digital Display (WiFi Smart Controlled ONLY) to easily let you know what the heaters are set to.
Carbon Fiber Heating Element - Rated for 30,000 hours of usage
Anodized Aluminum Casing provides a stylish appearance as well as resistance to corrosion
Hardwire - Ready
Warm-Up time: 10 - 15 minutes

Specifications:

Model Number:	E32R / E32RW
Manufacturer:	RADtec
Series:	Design
Indoor/Outdoor:	Indoors/Covered Outdoors
Fuel Type:	Electric
Installation:	Wall/Ceiling Mounted
Material:	Anodized Aluminum Casing
Grade:	Residential/Commercial
Heater Type:	Infrared
Heating Area:	110 sq ft (Indoors), 90 sq ft (Enclosed Outdoors), 70 sq ft (Covered Outdoors)
Watts:	3,200
Volts:	220
Amps:	13.9
Dimensions:	2.5" H x 82.5" L x 7" D (Remote Controlled), 2.5" H x 83.5" L x 7" D (WiFi Controlled)
Weight:	31 lbs
Certifications:	UL Listed, CSA Certified, ETL Approved
Warranty:	3-Year Residential, 2-Year Commercial

What's in the Box:

Infrared Electric Heater - 1 pc.
Mounting Brackets - 1 set

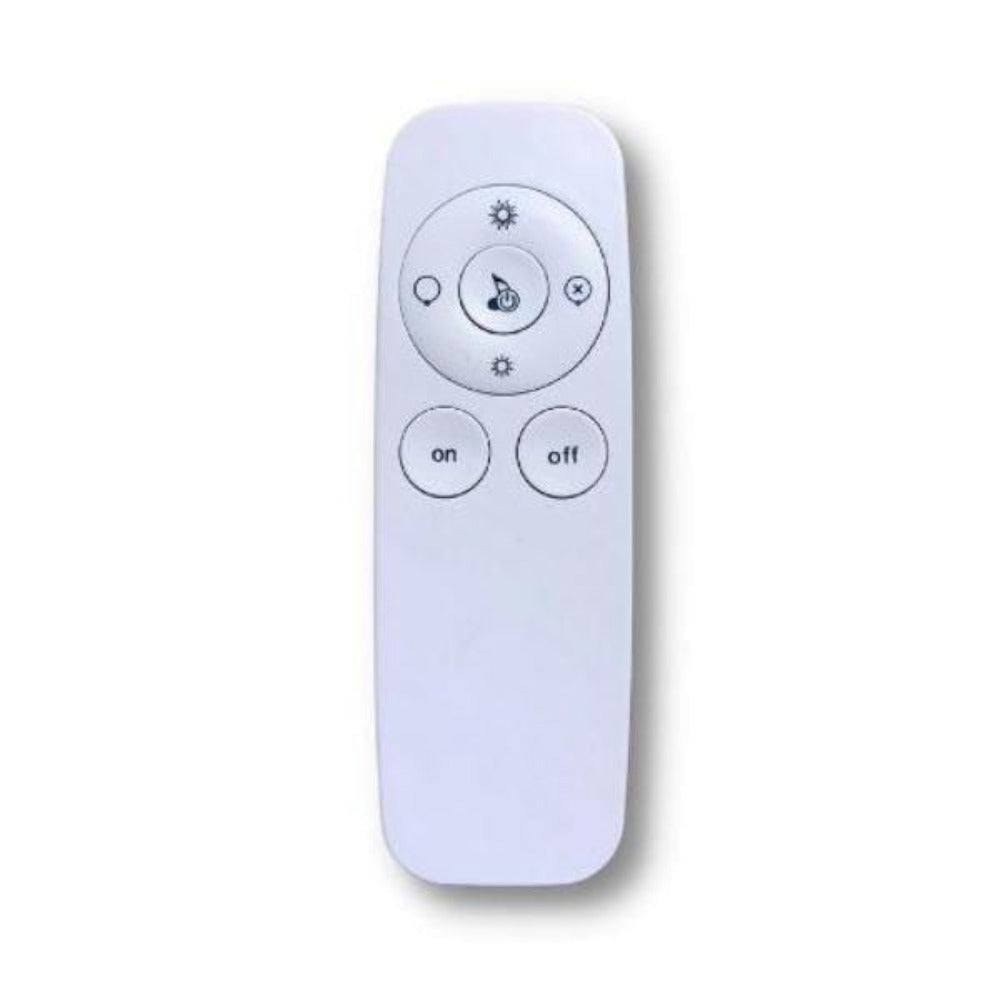

Handheld Remote - 1 pc.
User's Manual - 1 pc.

Recommendations:

The recommended installation height of the E Models is 84”- 108” from the floor. Under no circumstances is the heater to be installed at less than 71” from the floor. In all cases, it should be installed at a height where it cannot be touched in operation. The heated zones detailed are based on the recommended mounting heights.

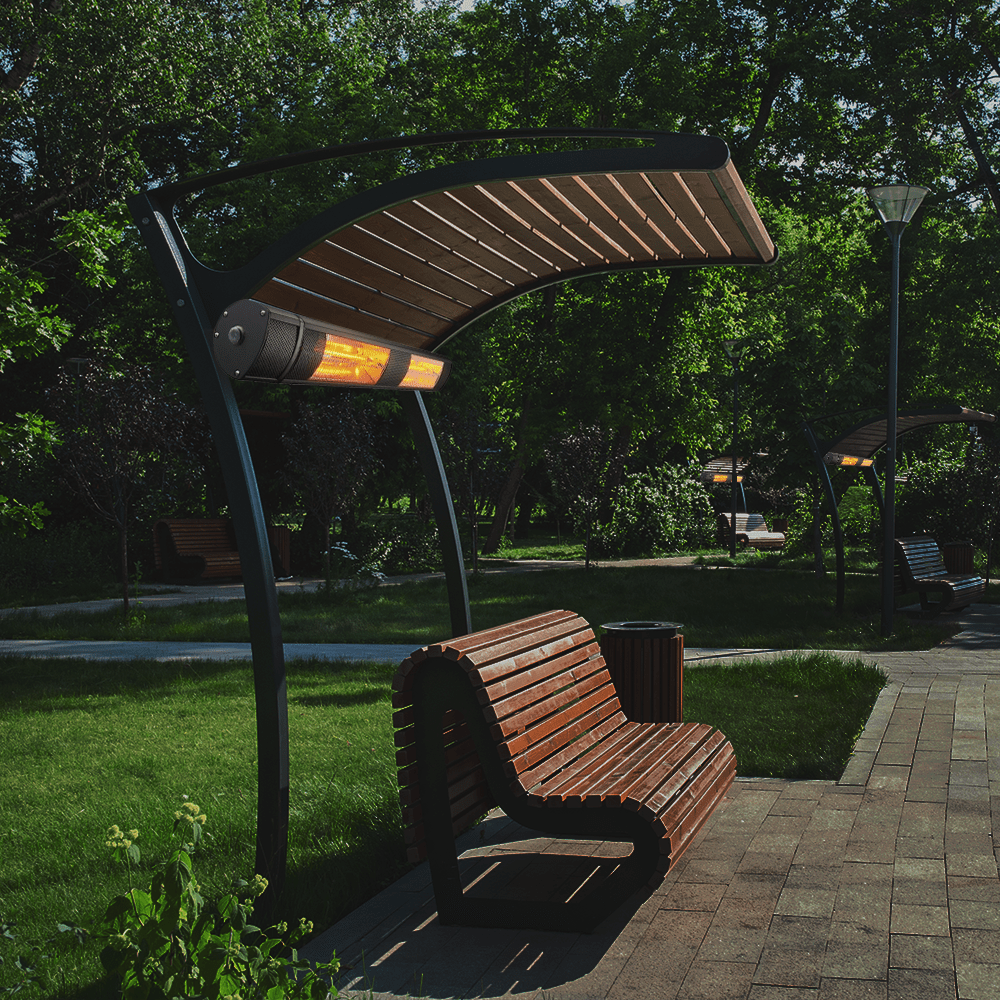

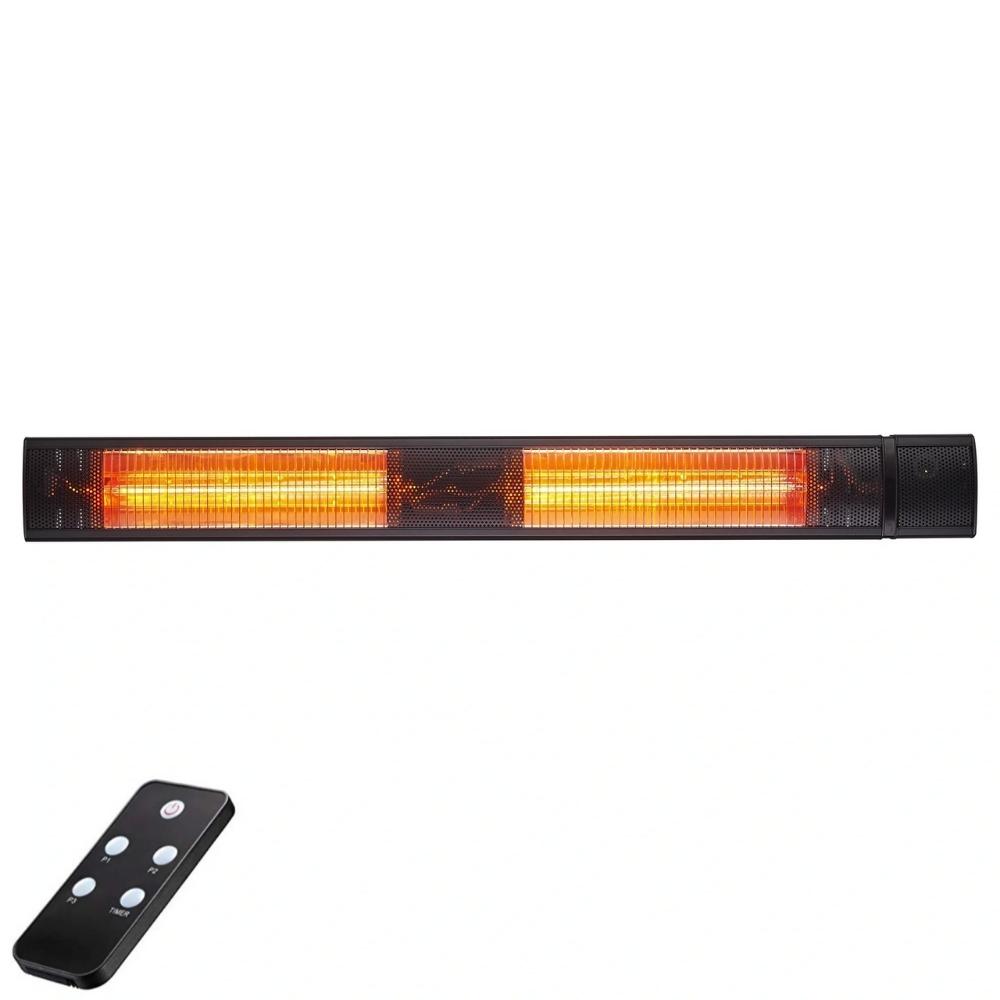

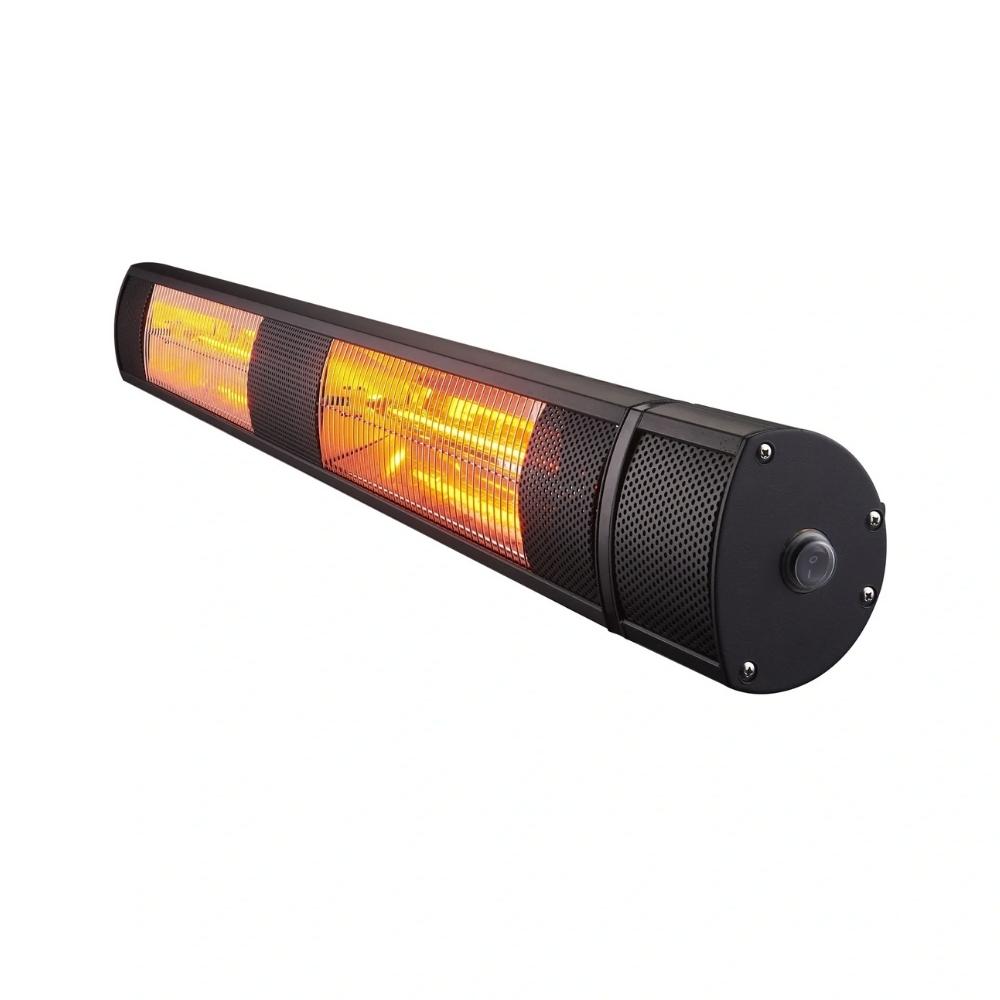

In exposed areas with air movement/wind, the far-infrared spread may reduce by 1/3. In such areas, or when used in low air temperatures, we would recommend considering a heater from our medium wave Genesis Series or proportionally increasing the number of E Model heaters and mounting at the lowest height.
