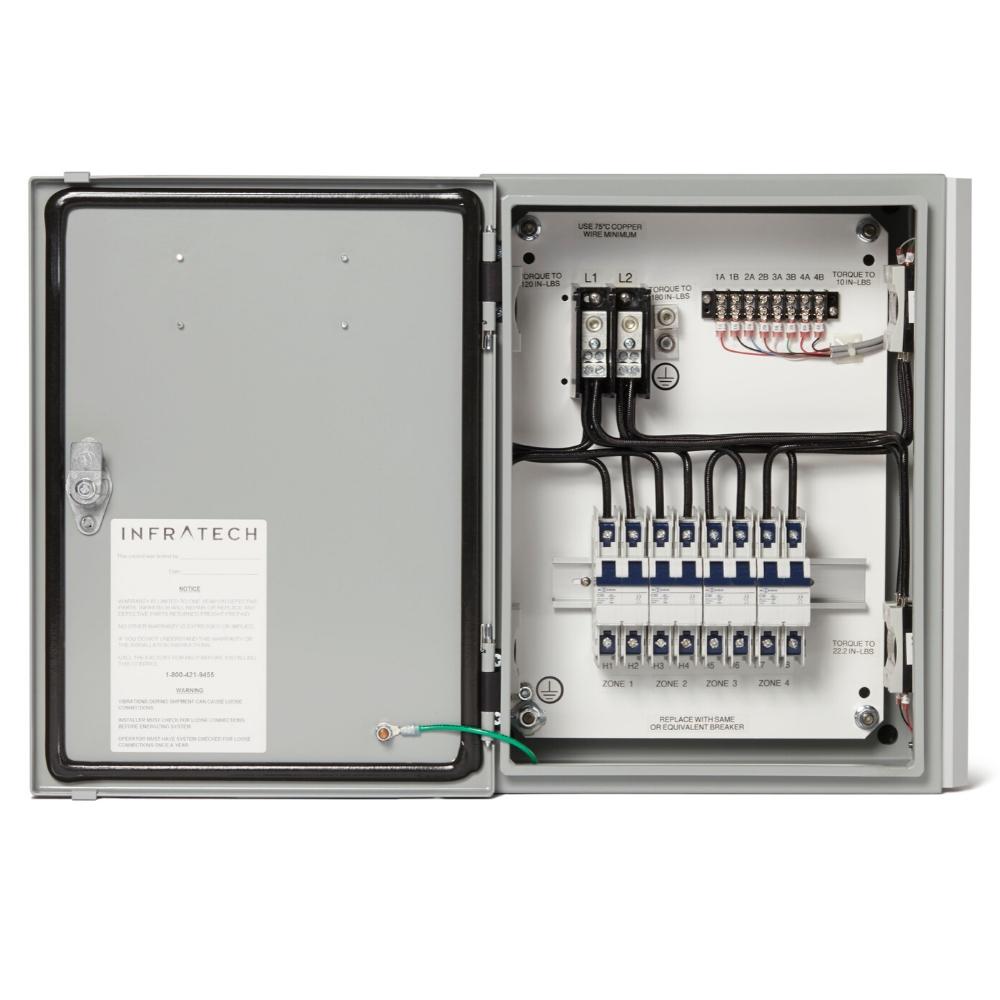

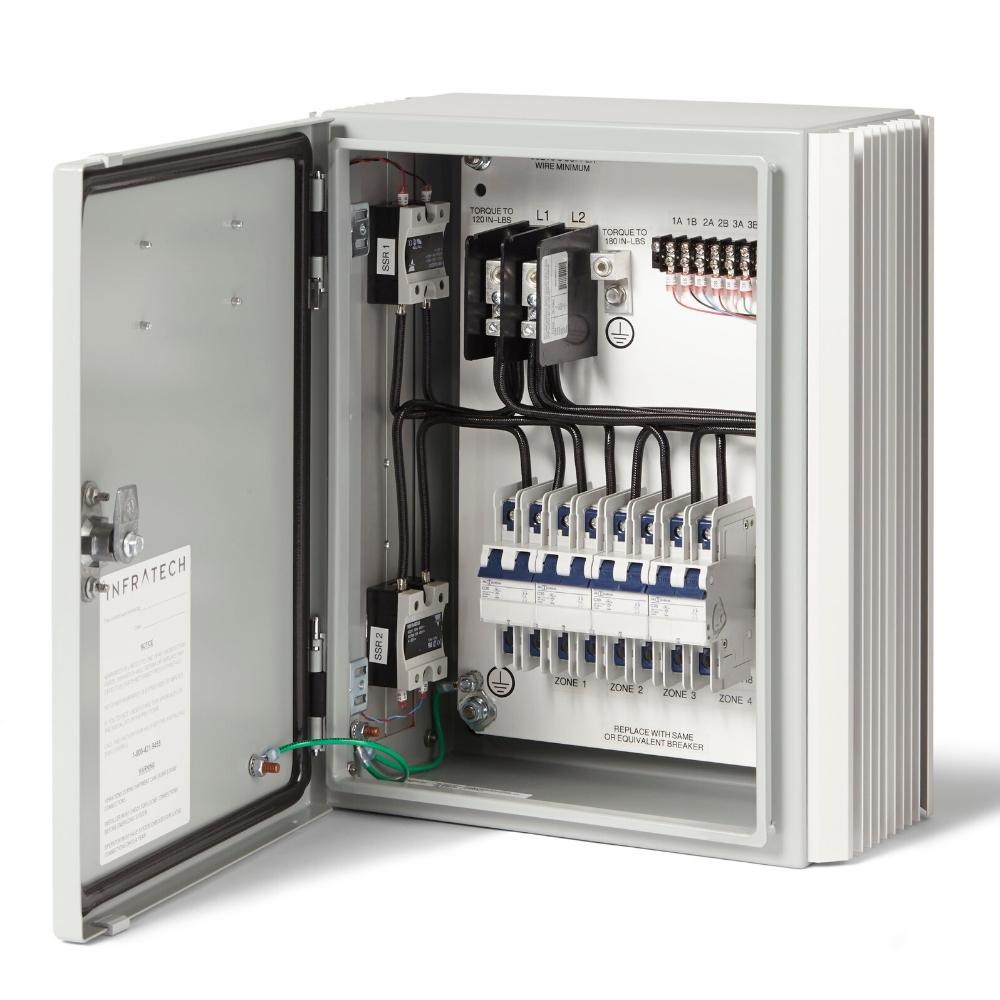

Infratech Solid State Controls - Relay Panel

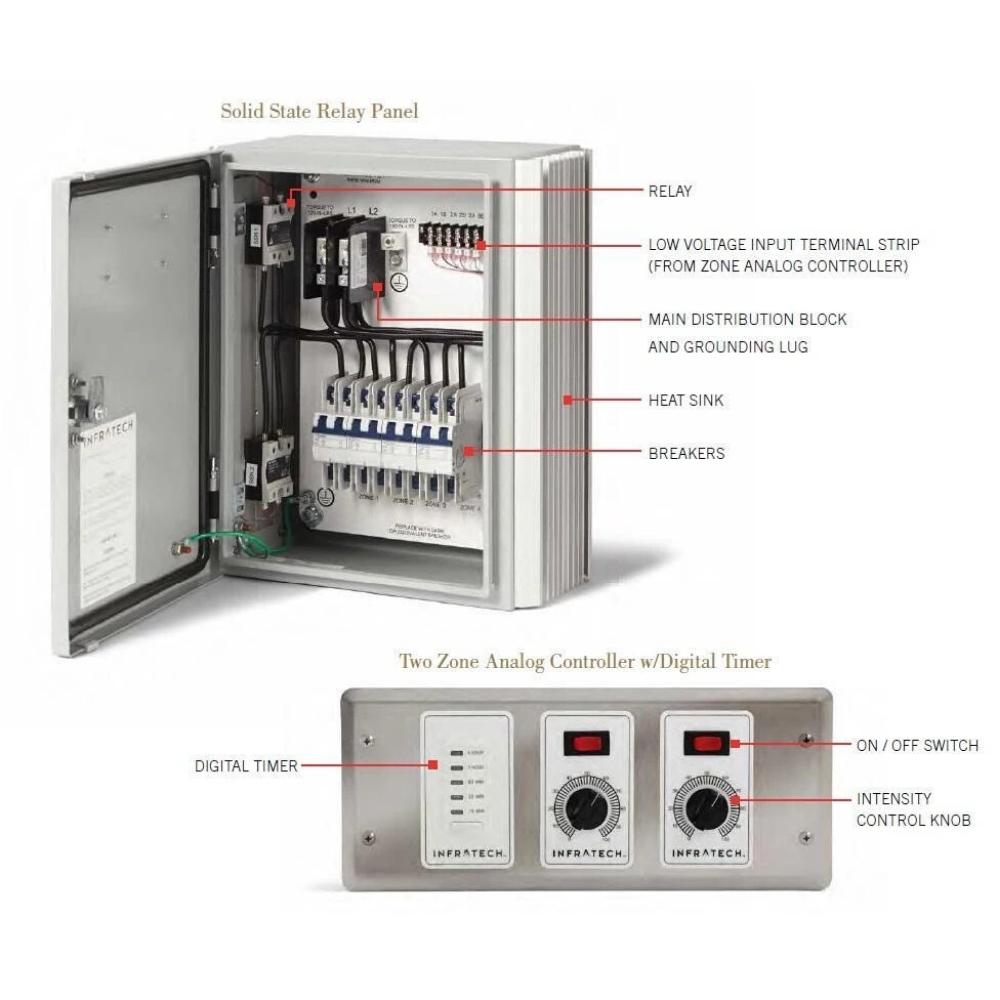

Infratech Solid State Control Package is a project specific control option used for zone heating. A complete package should include a relay panel and an analog controller. Control panels are available with one to six relays.

The number of relays you need in a control box depends on the power of the heaters within a zone. One relay can handle up to 9,000 Watts at 240 Volts. If the sum of the wattage of heaters in one zone is greater than 9,000 Watts or there is more than one zone to be controlled, a 2 relay (or more) control box might be needed.

An appropriate analog controller is required, you will need one controller per zone or area. One zone controller can handle up to three relays on the control box. Each controller has a switch to turn the heaters on or off and a knob to adjust the temperature. An optional timer is available to automatically shut off the heaters after 15 mins to 4 hours.

If you are looking for a way to control multiple heaters in one zone or multiple zones, an Infratech Solid State Control Package is the best control option.

There are many options and configurations based on how you would like to control each heater, please contact Infratech customer service team for the best solution (Phone: 949-474-3070).

These items are not always in stock and might take 5-8 weeks to manufacture. To check on the stock, email us at support@patiofever.com.
