N10 SGL1560

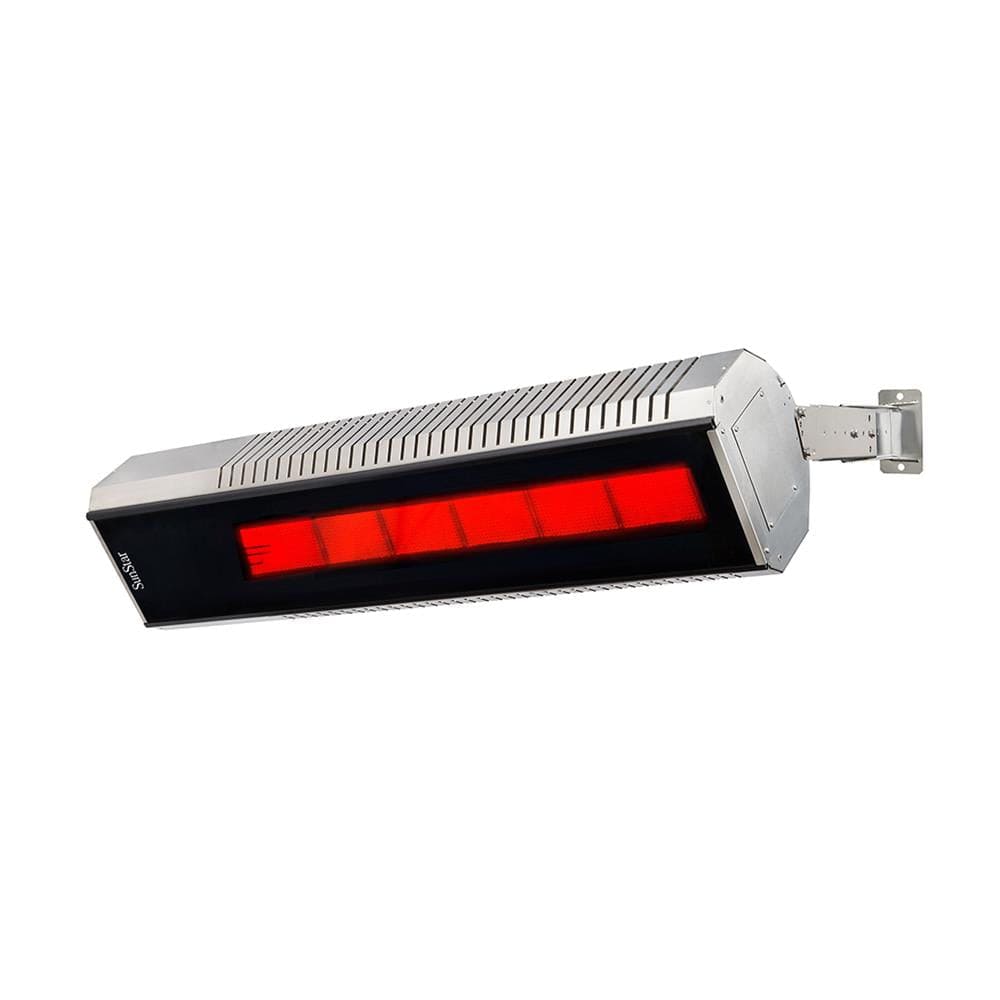

SunStar Glass Wall/Ceiling Mounted 2-Stage Infrared Gas Heater - Angled Installation

Material
Gas Type
Remote Control
  • SunStar Authorized Dealer

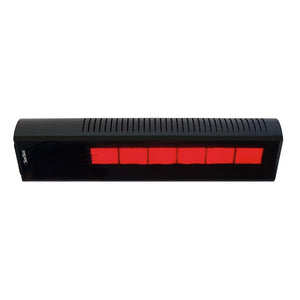

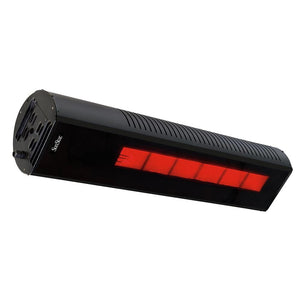

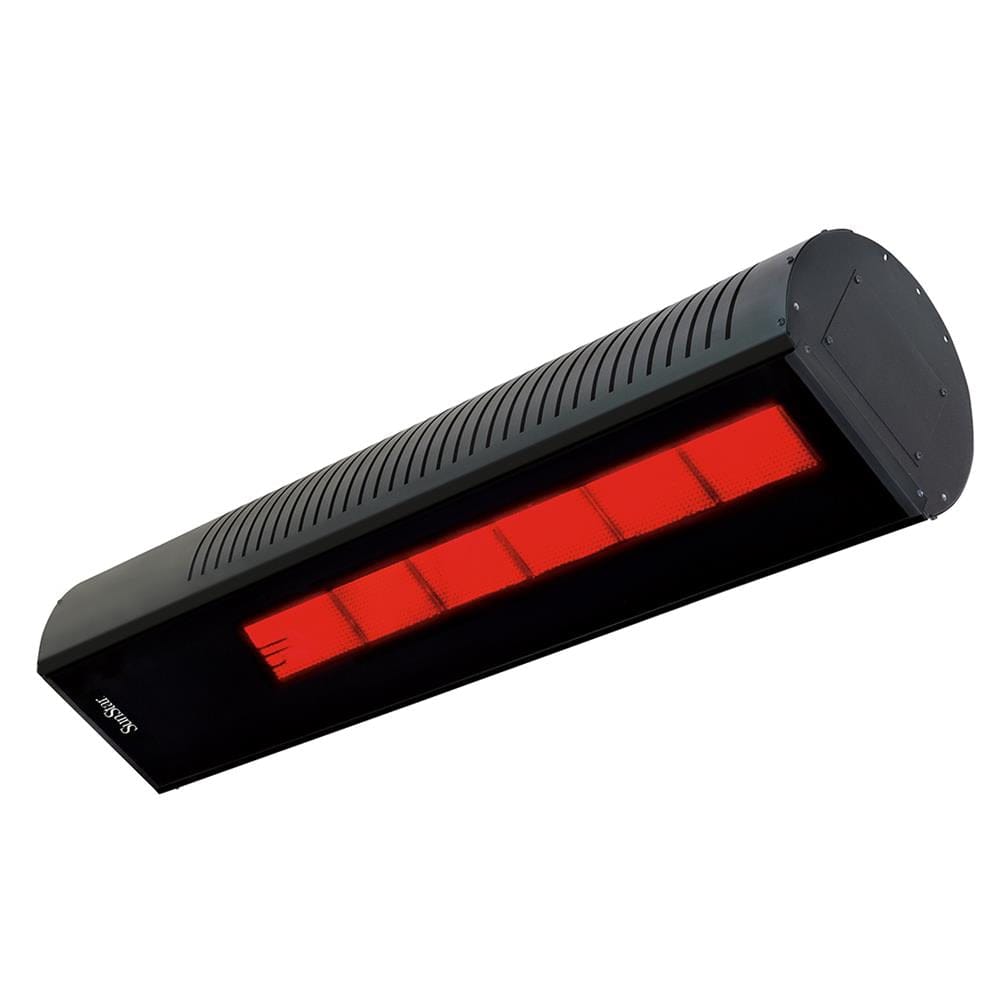

    The SunStar Glass Infrared Gas Heaters feature superior wind resistance for effective outdoor heating. Built with a Black Glass Face, it has stronger wind resistance against winds up to 40 mph. It is sold in Black Powder Coated Aluminized Steel to go with any decor and Marine Grade Stainless Steel for corrosion resistance in harsh conditions like coastal areas.

    This heater is Made in the USA by Gas Fired Products (GFP), a leading manufacturer of heaters since 1949. Only quality components are used in their products, and the SunStar Heaters are no exception. These units are extremely weather-resistant against direct rain or snow.

    Infrared Heat heats more efficiently than gas. With people and objects warmed directly as the sun does, no energy is wasted heating the air.

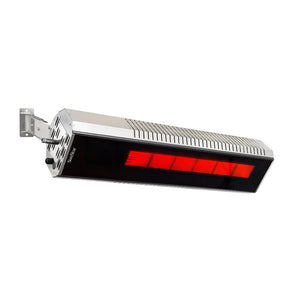

    Its maximum coverage area is 11 x 11 ft and warms up to 35,000 BTUs on high. It can be angled 15°-60° and can be installed on the wall, pole, column, or ceiling. This great deal includes a mounting kit and a wall switch. Upgrade to a remote-controlled unit for more convenience.

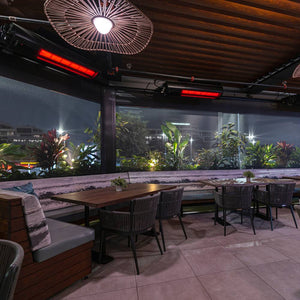

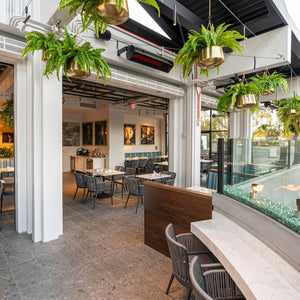

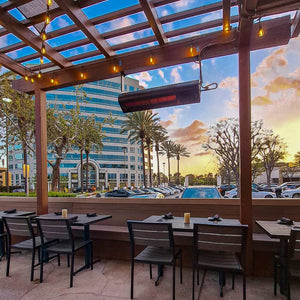

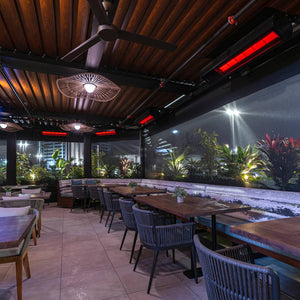

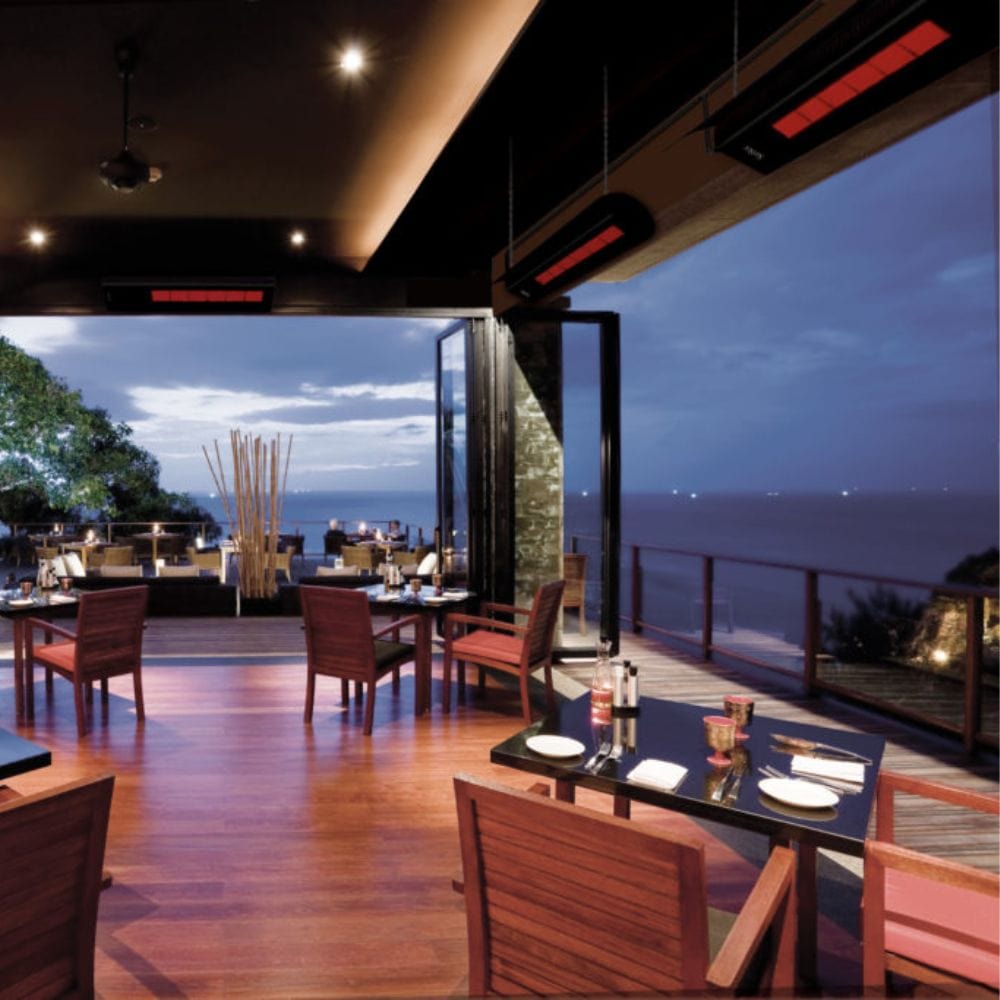

    Have a relaxing time enjoying your patio and dining al fresco. Save tons on the free shipping offer on the SunStar Glass Heater. Buy now!

    For a wider coverage area, see the 0° Ceiling-Mounted Heaters.

    Note: Current Lead Time is 3 to 4 weeks.

    Need help determining the right heater and setup for your space and heating needs? Or, do you need more information about the current lead time? Give us a call at 1-866-713-4844 or email us at support@patiofever.com  and we'll be happy to help!

    Download

     Product Manual

    Download

     Brochure

    Download

     Specs

    Key Features:

    • Black Glass Face provides superior wind resistance against winds up to 40 mph.

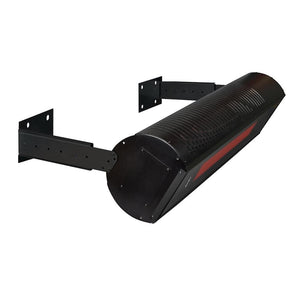

    • Includes a mounting kit to install the unit at a 15°-60° angle and position heat accurately.
    • Extremely weather-resistant- withstands direct rain or snow.

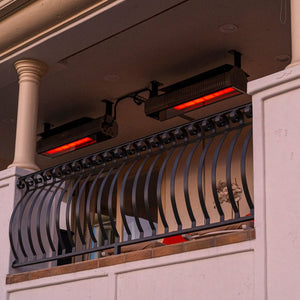

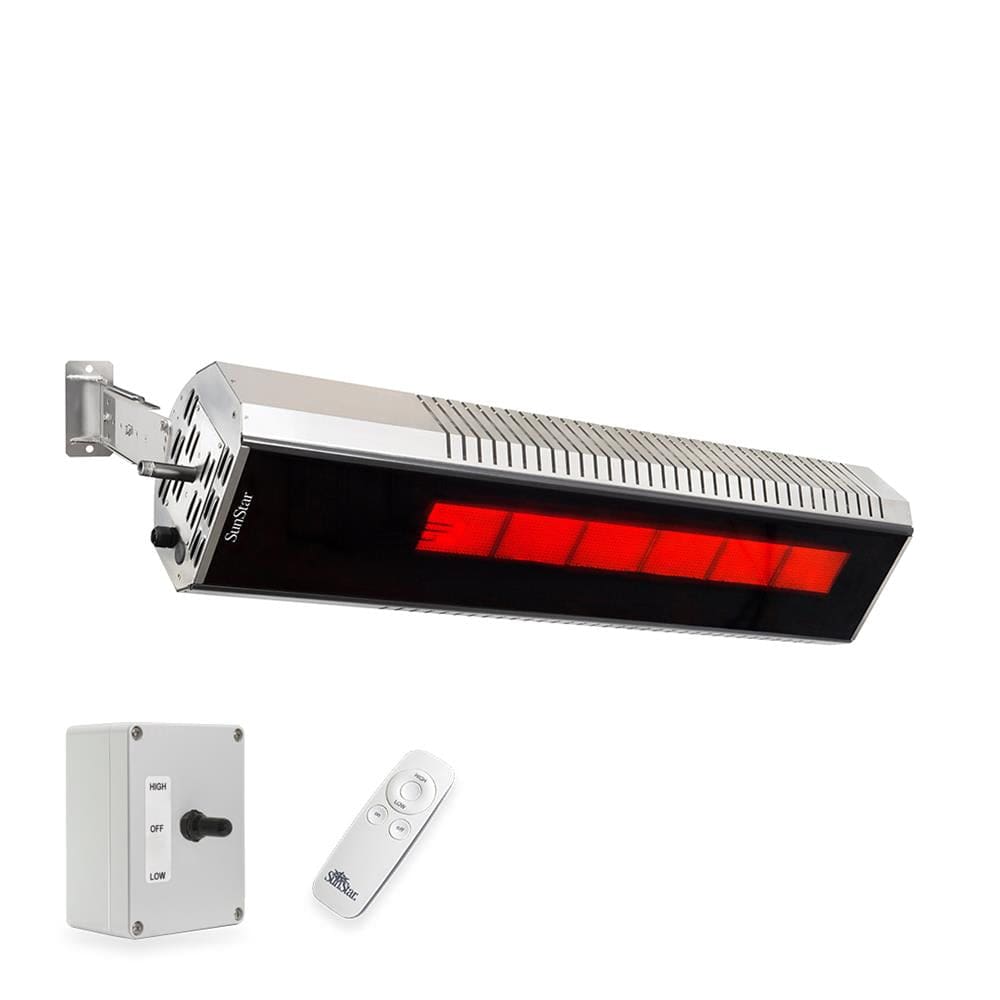

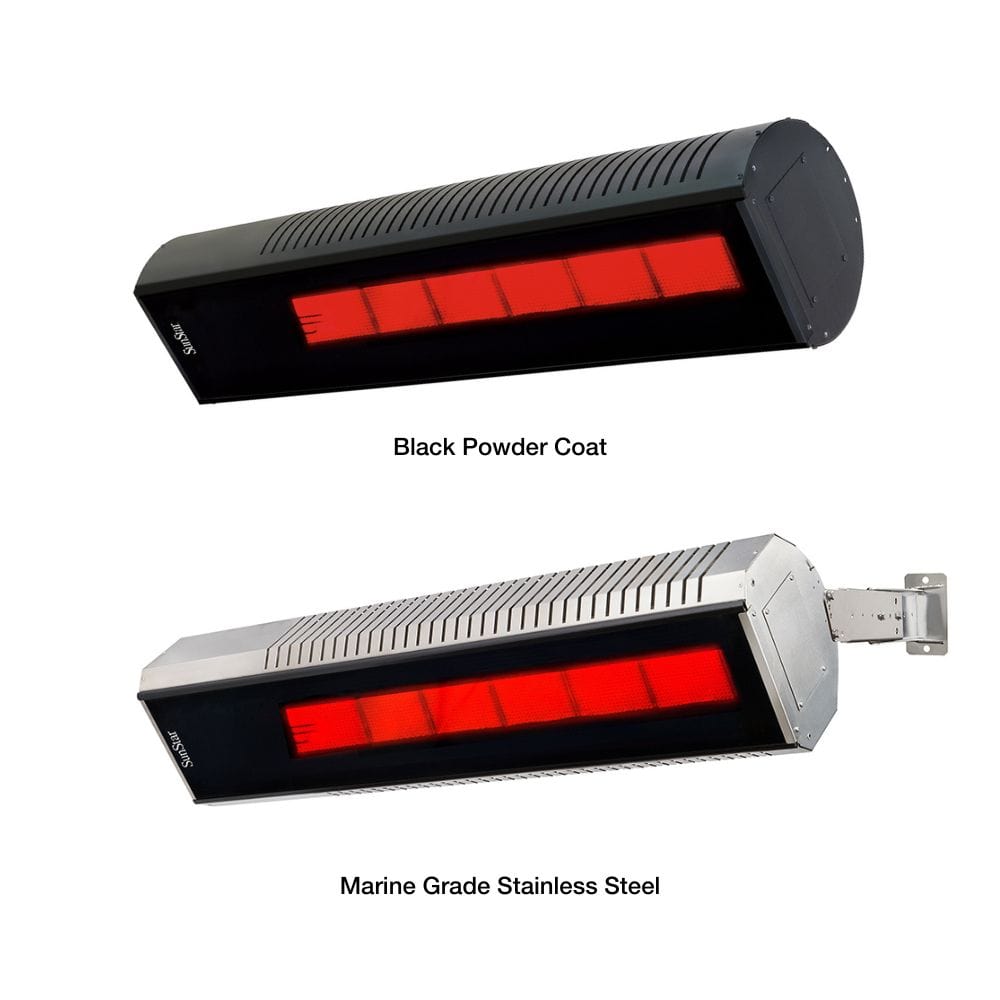

    • Black Powder Coated Aluminized Steel complements any decor and Marine Grade Stainless Steel is extremely corrosion-resistant in coastal areas.

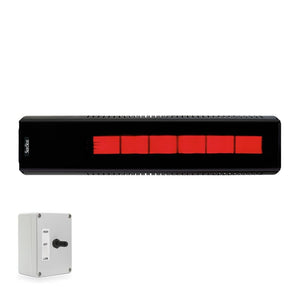

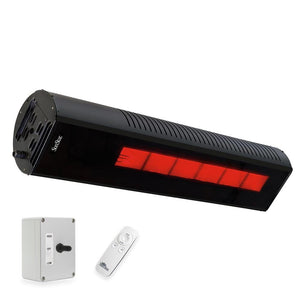

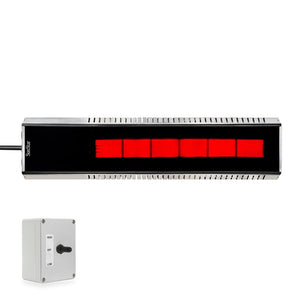

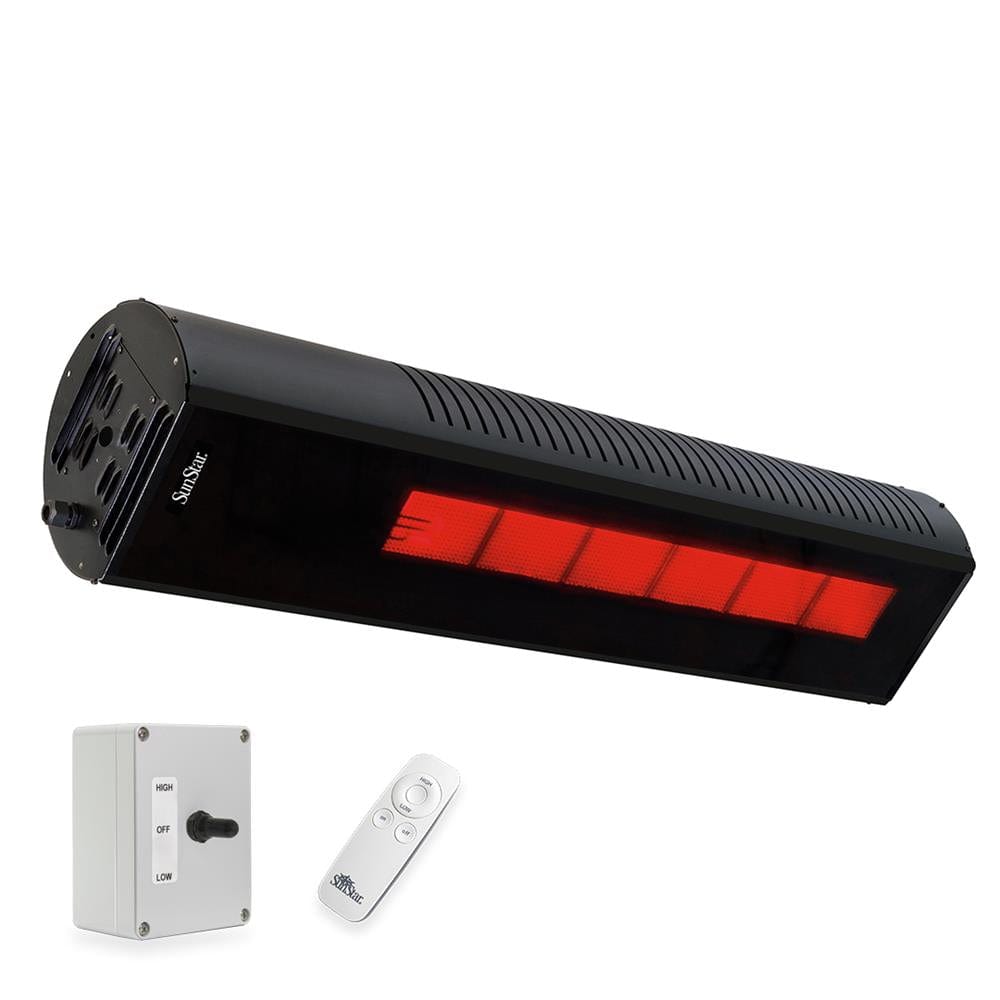

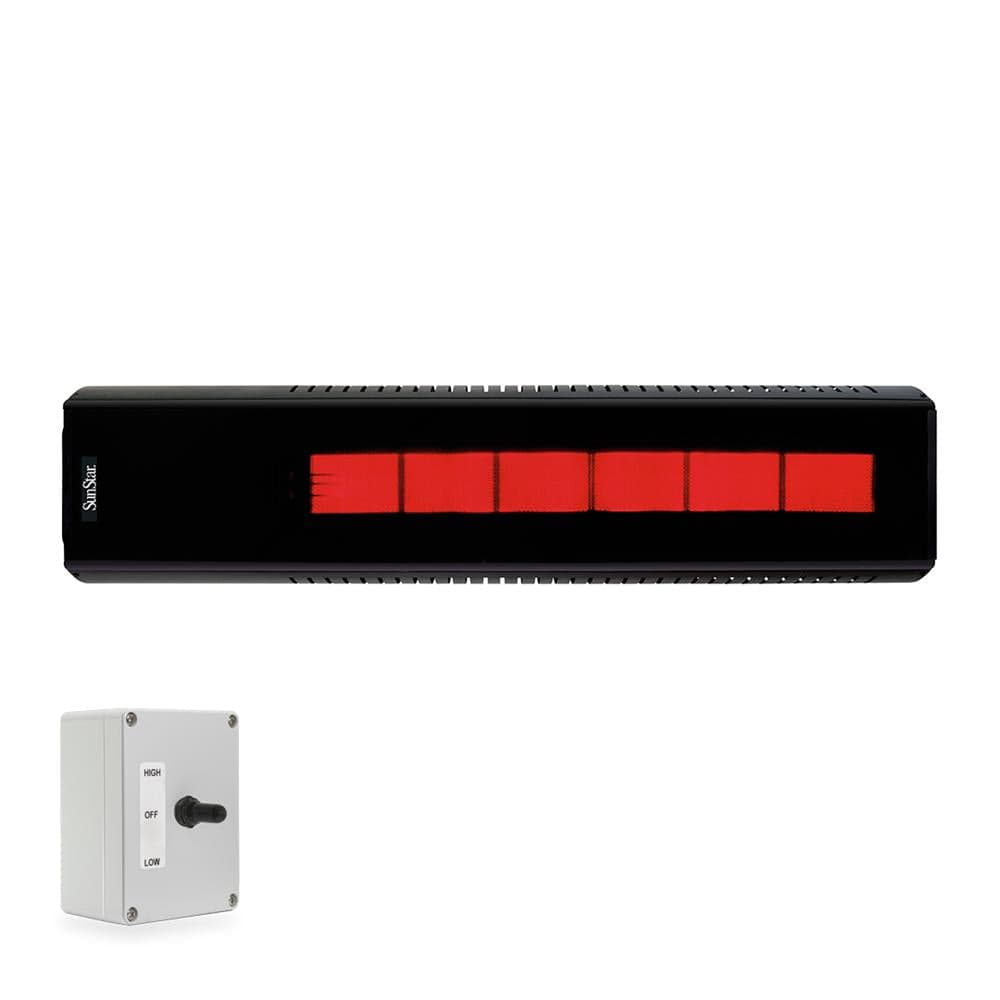

    • Two-Stage Wall Switch lets you easily turn it on/off or set it on high/low. Remote-controlled units are also available to use with ease.

    Other Features:

    • Made in the USA with quality components
    • Heats with Infrared Energy to warm people or objects directly. It does not waste energy heating the air.
    • Control multiple heaters at the same time with a relay kit.
    • CSA Certified, verifying it complies with safety standards

    Specifications:

    Model Number: SGL1560/MGL1560
    Manufacturer: SunStar
    Series: Glass
    Indoor/Outdoor: Indoor/Outdoor (Commercial), Outdoor Only (Residential)
    Fuel Type: Natural Gas/Propane
    Installation: Wall/Ceiling/Column/Pole Mounted
    Material: Aluminuminized/Stainless Steel
    Grade: Commercial/Residential
    Ignition: Direct Spark
    Heater Type: Infrared
    Heating Area: 11 x 11 ft
    Safety Shut-Off Valve: Optional (Included in Gas Connection Kit)
    BTUs: 35,000 (High), 24,000 (Low)
    Dimensions: 11.8" H x 48" L x 9.6" W
    Weight: 55 lbs
    Certifications: CSA Certified
    Warranty:
    1 -Year Warranty on Controls, 3-Year Warranty on Burner Assembly

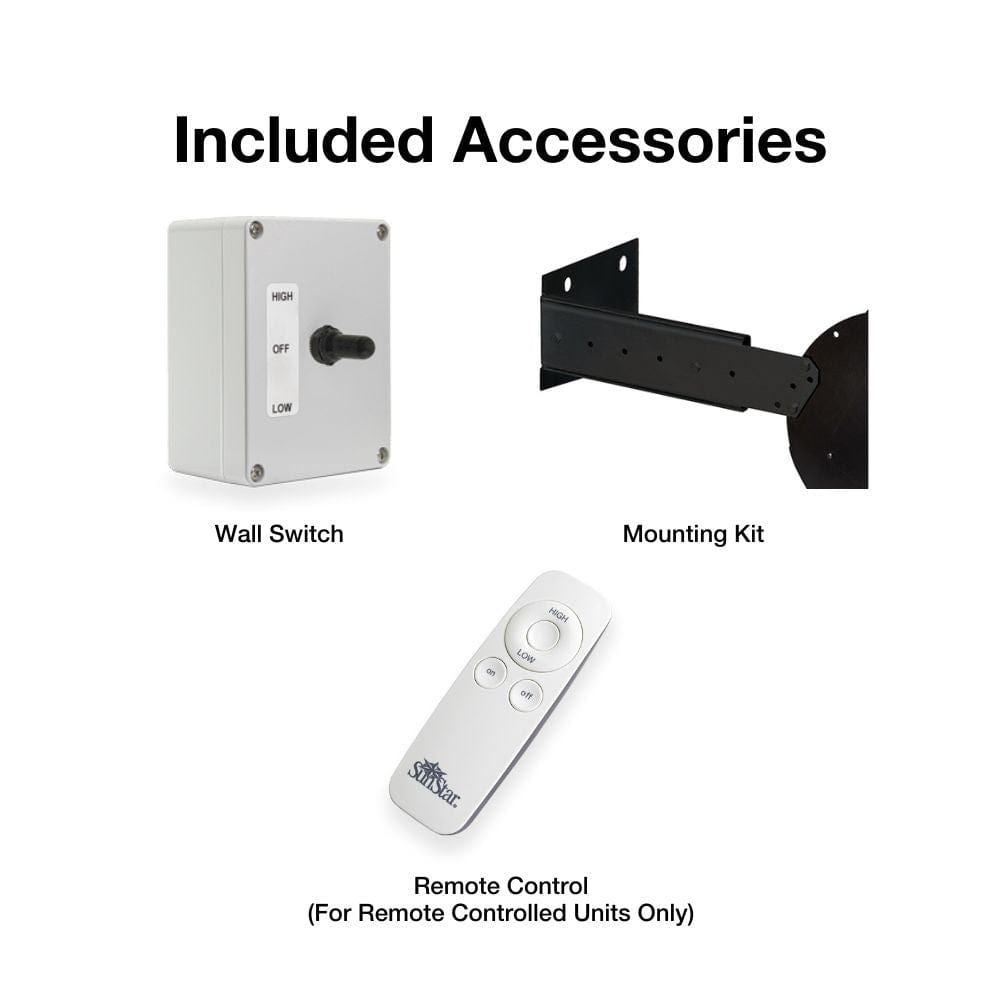

    What's in the Box:

    • Gas Heater - 1 pc.
    • Mounting Kit - 1 set
    • Remote Control (for Remote Controlled Units) - 1 pc.
    • 3-Position Wall Switch - 1 pc.
    • User's Manual - 1 pc.

    Recommendations:

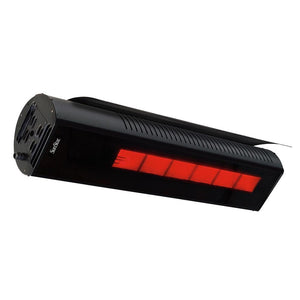

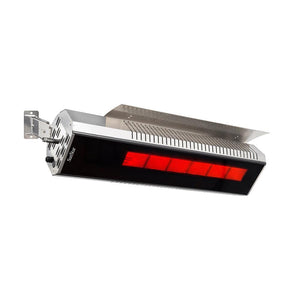

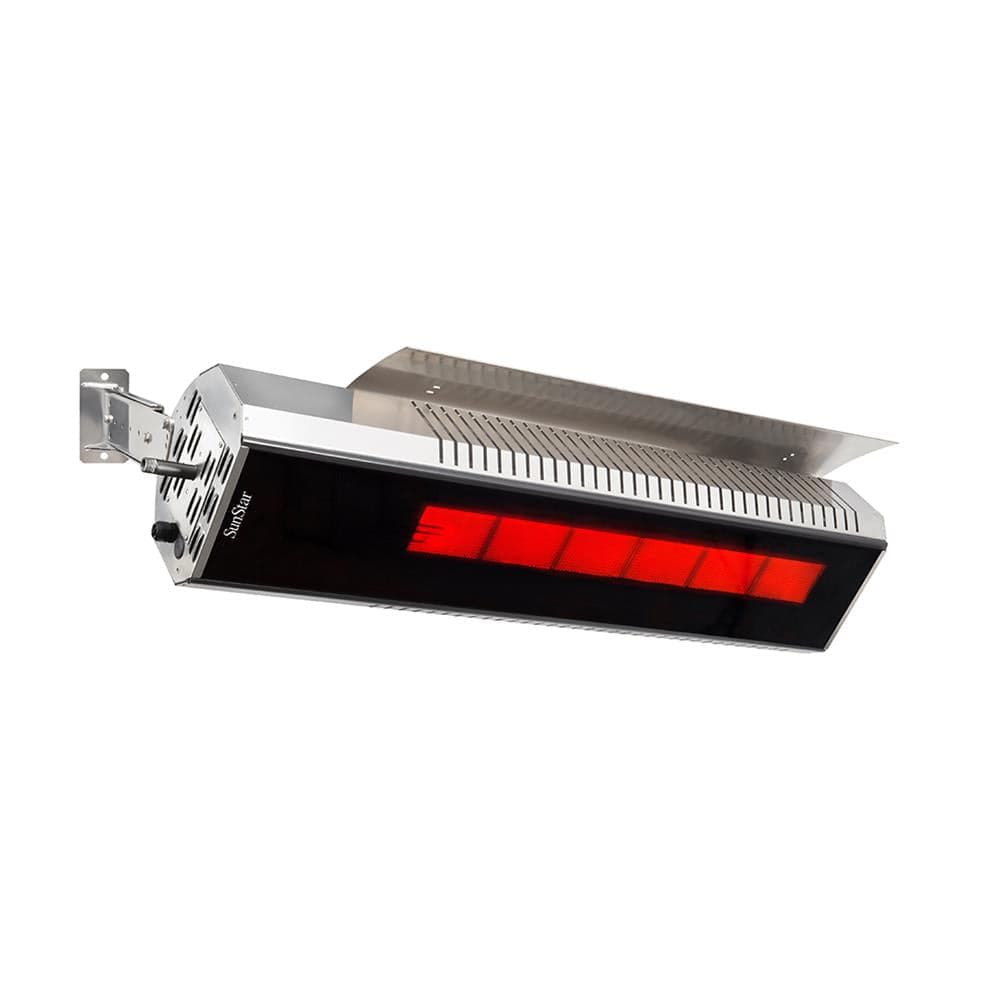

    Reduce top clearances by 7"-9" with this Heat Shield.

    A relay kit allows you to create "zones" for heating areas at different heat levels. It also lets you control multiple heaters at the same time. EACH heater requires one relay kit if to be controlled together with other units.

    See this heating guide to set up gas heaters properly on your patio.

    Installation of this heater must conform with local building codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1 In Canada, the installation must conform to current CSA B149.1 (The Natural Gas and Propane Installation Code) in the absence of local codes. Heaters shall be installed by a licensed contractor or licensed installer. Clearances to combustibles as outlined in the manual should always be observed. In areas used for storage of combustible materials where they may be stacked below the heater, NFPA54 requires that the installer must post signs that will “specify the maximum permissible stacking height to maintain the required clearances from the heater to combustibles.”
