CD6024SS-DDUPLEXBUNDLE

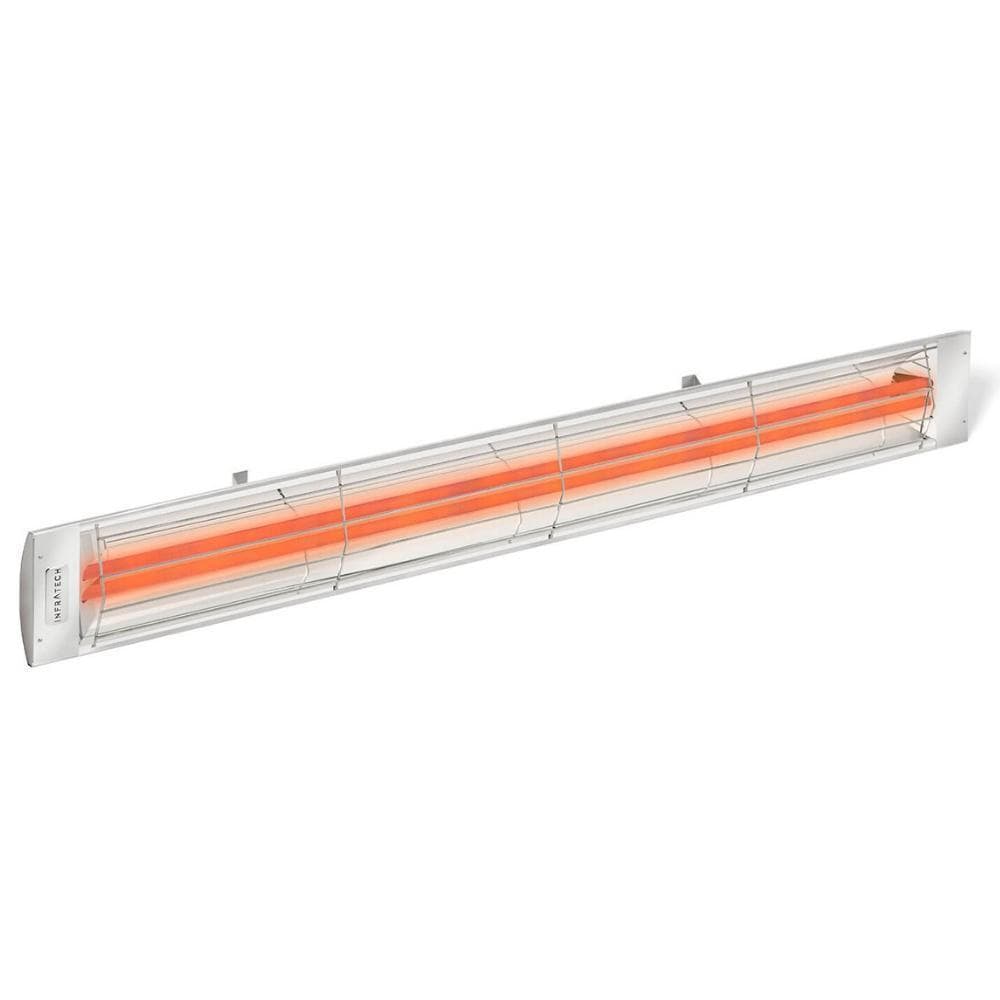

Infratech CD Series 61-Inch 6000W Dual Element IR Electric Heater With Switch

Regular price $1,113.00

Call to Order

Call or text 1-866-713-4844 to get the best deal!

Free delivery to contiguous U.S. + free 30-day returns. Est. arrival: Nov 1–11

Best Price Guarantee

  • Lowest Price Online, Guaranteed. If you find the same product for less at another authorized dealer, we’ll beat it.
  • Easy to Claim: click here to submit your price match request
  • Qualifications: Item must be identical, in stock, new (not refurbished/open-box), and sold by an authorized dealer. Total cost (including shipping & tax) must be lower.
  • Peace of Mind: All details you provide are kept completely confidential. We use this information only to verify the price.

Installation

Need installation support? We’ll help you find a qualified pro.

Click here to submit a request.

Request a Quote

Need a price or shipping estimate? Click here to request a quote.

Request a Quote

Price Match Request

Loading...

Installation Support Request

Description

infratech authorized retailer

Fed up with trying to choose the perfect patio heater?

There are so many things to consider when shopping for patio heaters.

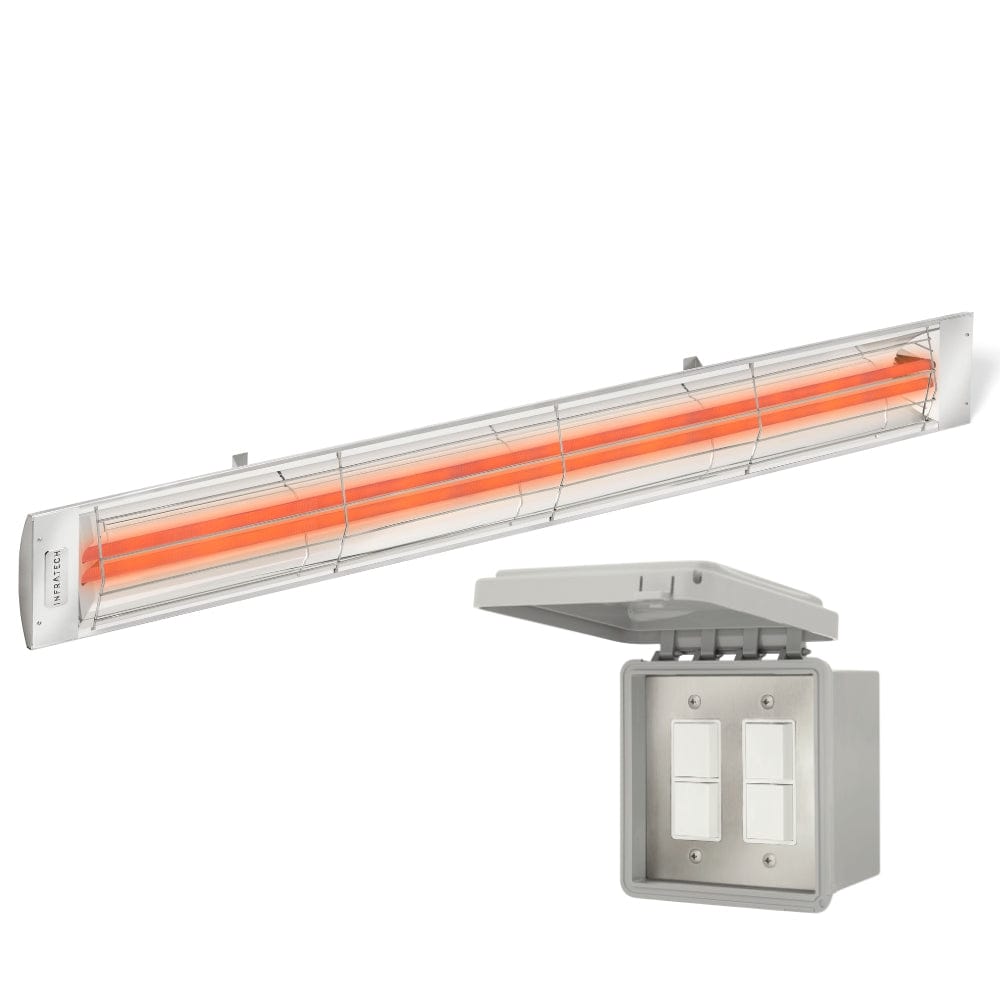

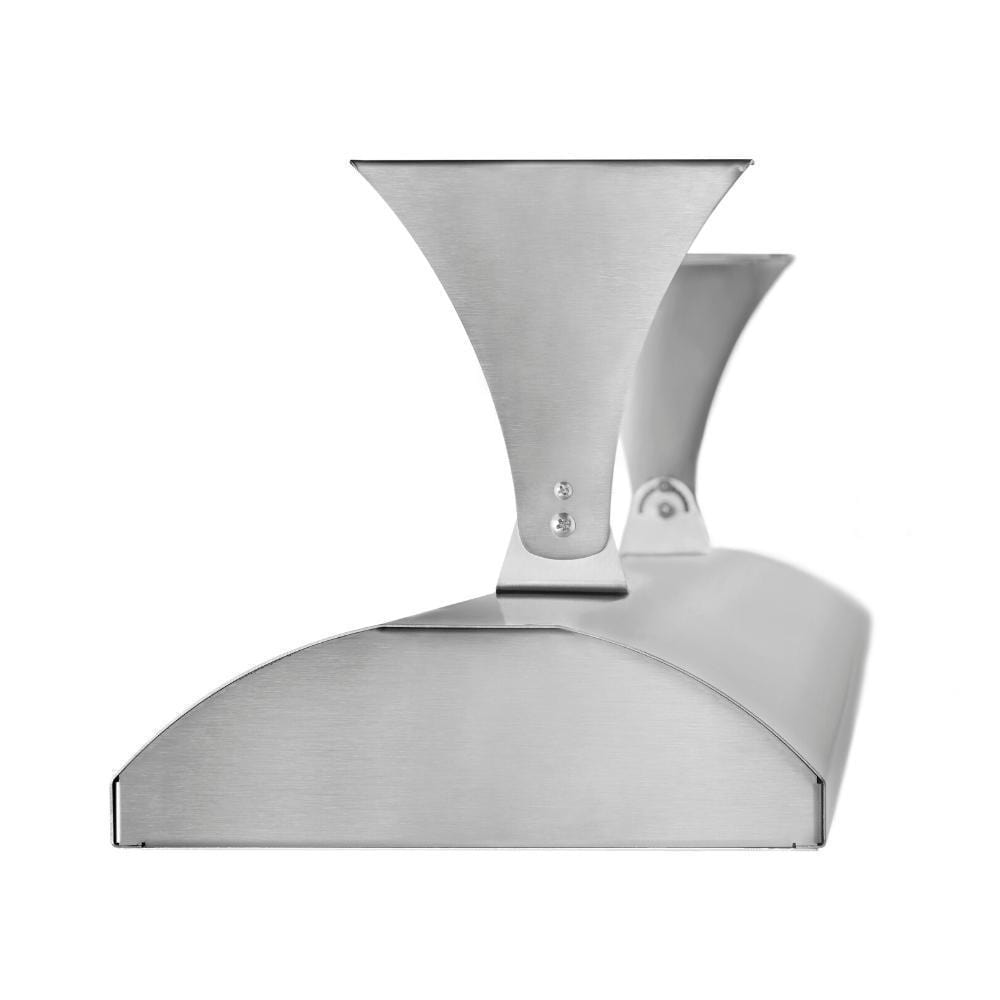

Make things easier with this Infratech CD Heater Bundle! This all-in-one package includes our best-selling Infratech CD 61" 6000W Electric Heater and a duplex switch. Now, you don't have to worry about which accessories to get. Simply choose a color and decide how you want to mount it. The included bracket allows wall or ceiling mounting, but if you prefer it recessed into the ceiling, add a flush mounting kit.

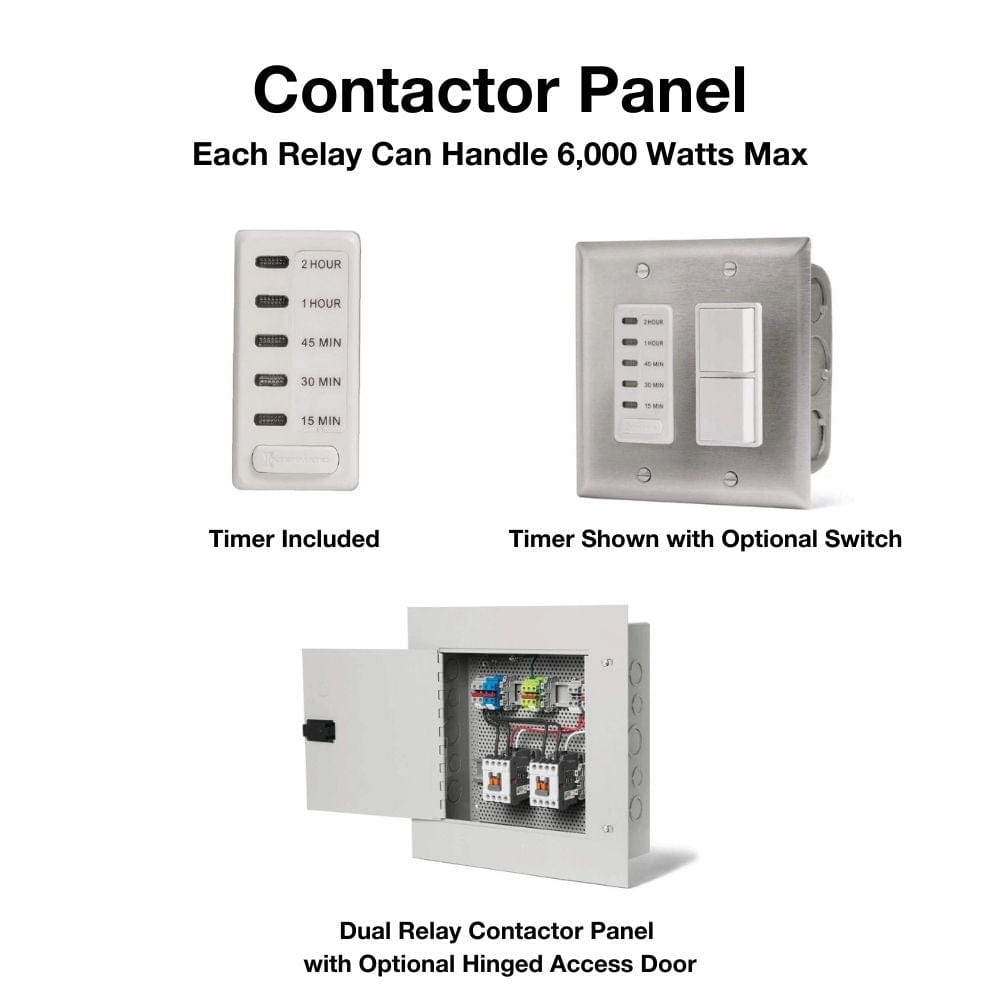

Our bundle is perfect if you want simple controls for your electric heaters. This duplex switch lets you turn each element on/off, allowing high or low heat. A Contactor Panel is also available to control multiple heaters together. This heater isn't just convenient but also efficient, using infrared energy to focus on heating solid objects, rather than the air.

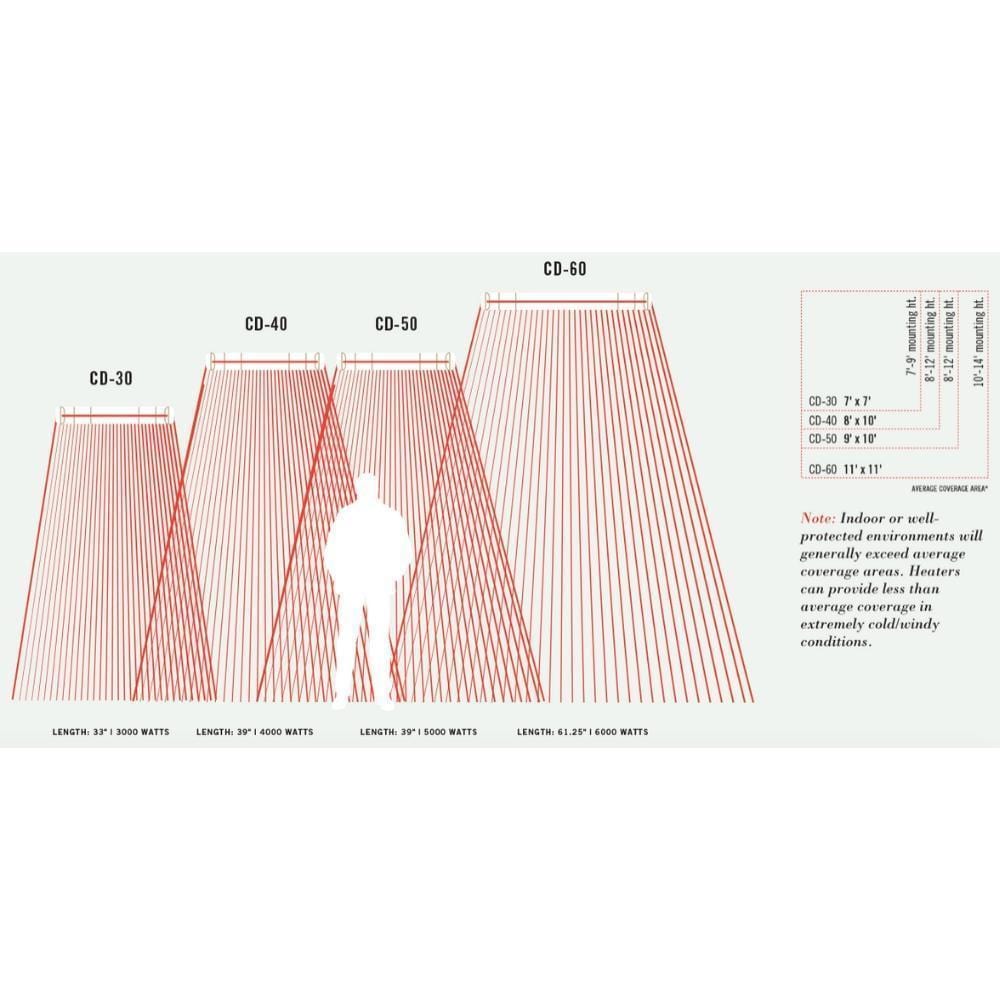

With an impressive heat output of 20,400 BTUs, you can expect an 11 x 11 area to stay well-heated. To optimize heat output even more, see this helpful Infratech Heat Coverage Guide. Note that heaters of more than 240V are for commercial use only.

Make any indoor or outdoor space a haven of comfort with an Infratech CD Heater. Get a great deal with this amazing bundle, plus free shipping! Shop now!

Also available in sizes: 33" and 39" long.

Standard Stainless Steel 240V models are usually in stock and ready to ship. Custom colors and other voltages are special orders with 2-4 Weeks Manufacturing Lead Time.

Need help determining the right heater and setup for your space and heating needs? Or, do you need more information about the current lead time? Give us a call at 1-866-713-4844 or email us at support@patiofever.com and we'll be happy to help!

Download Product Manual

Download Specs

Download C/CD Series vs W/WD Series



Electric Heater Specifications:

Model Number: CD 60
Manufacturer: Infratech
Series: CD
Indoor/Outdoor: Indoor / Outdoor
Fuel Type: Electric
Installation: Pole / Wall / Ceiling / Flush Mounted

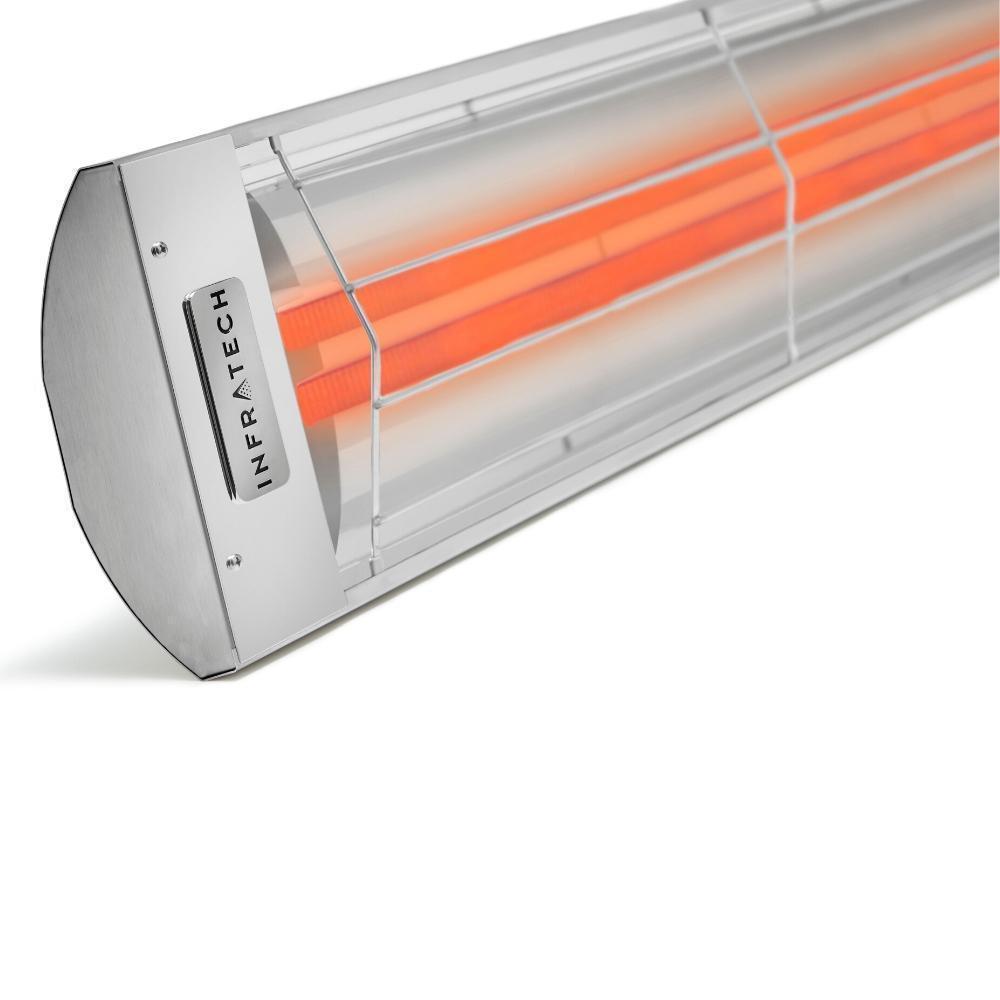

Material: Stainless Steel
Grade: Commercial / Residential
Water Resistance: Splash Resistant
Heater Type: Infrared
Heating Area: 11 ft x 11 ft
BTUs: 20,472
Watts: 6,000
Volts: 208 / 240 / 277 / 480
Dimensions: 61.25" L x 8.19" W
Certifications: UL Listed
Warranty: 3-Year Warranty

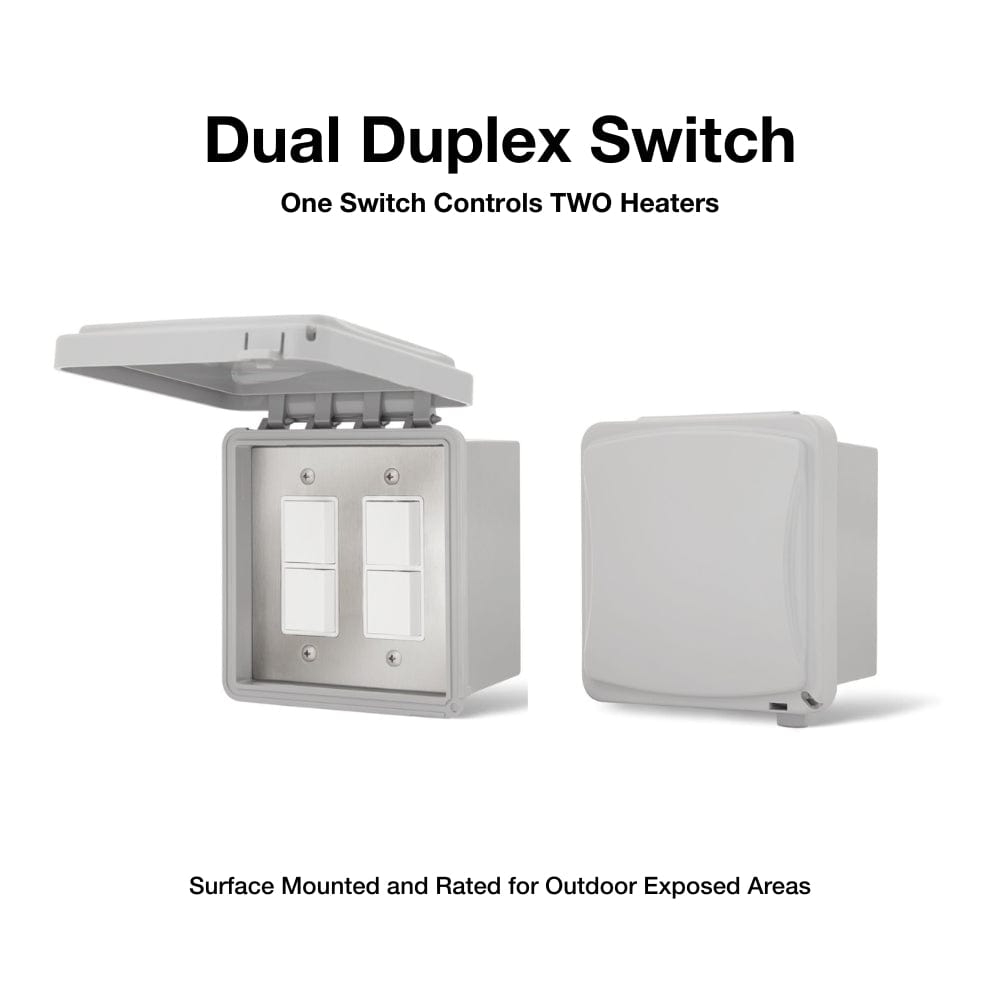

Duplex Switch Specifications:

Model Number: 14 4325
Manufacturer: Infratech
Indoor/Outdoor: Indoor / Outdoor
Installation: Surface Mounted
Volts: 208/220 VAC = 3000 Watts Max per Switch
240/277 VAC = 4000 Watt Max per Switch
Amps: 20
Dimensions: 5 1/2" H x 3 3/4" W x 2 3/4" D
Warranty: 3 Years

Recommendations:

Infratech offers advanced control options with more features. For sleep timer function, temperature control, and other control options, get an Analog Controller, Universal Control, or a Home Management System for smart home integration.

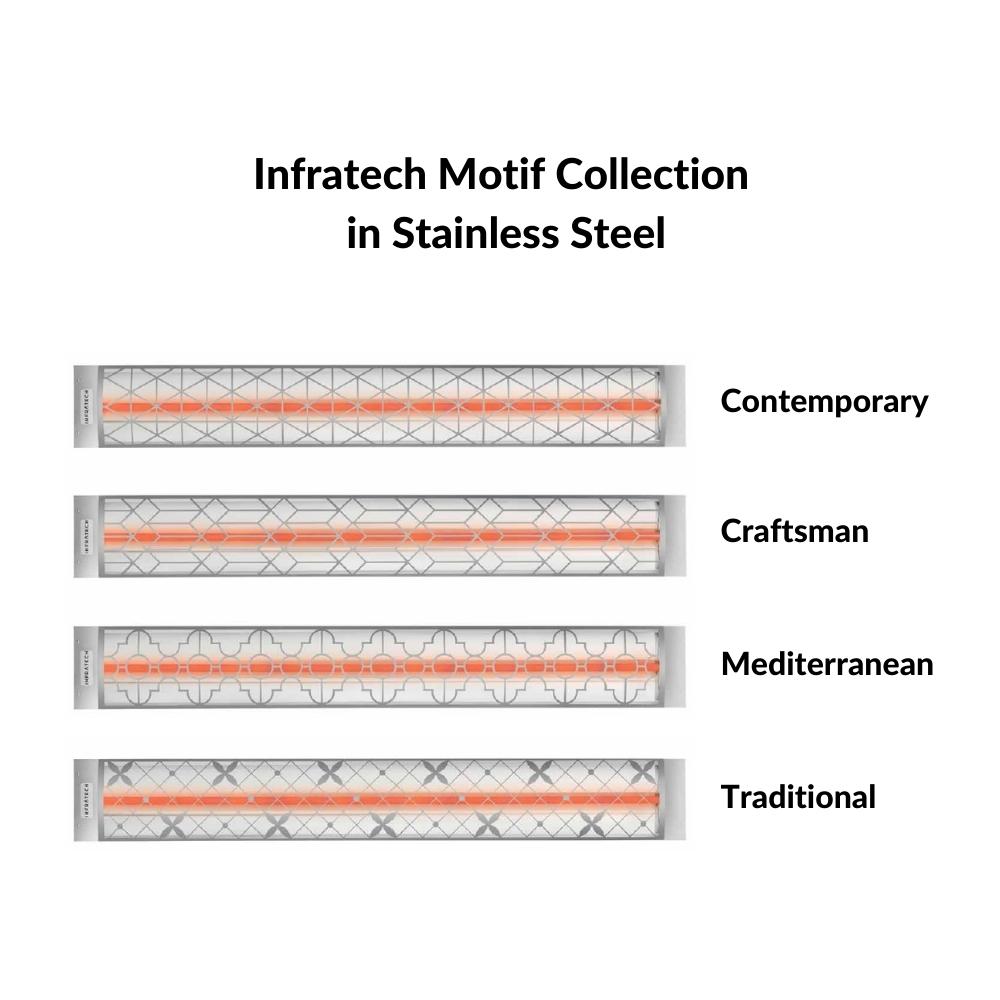

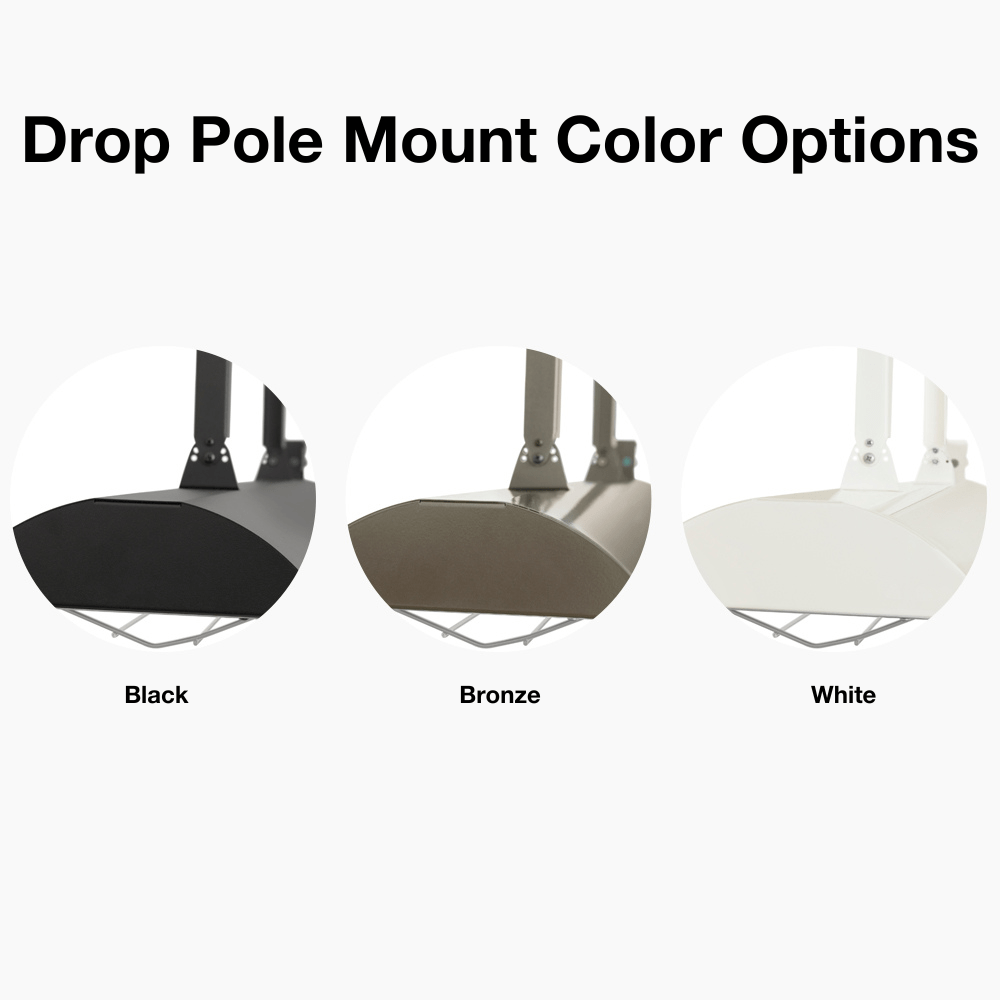

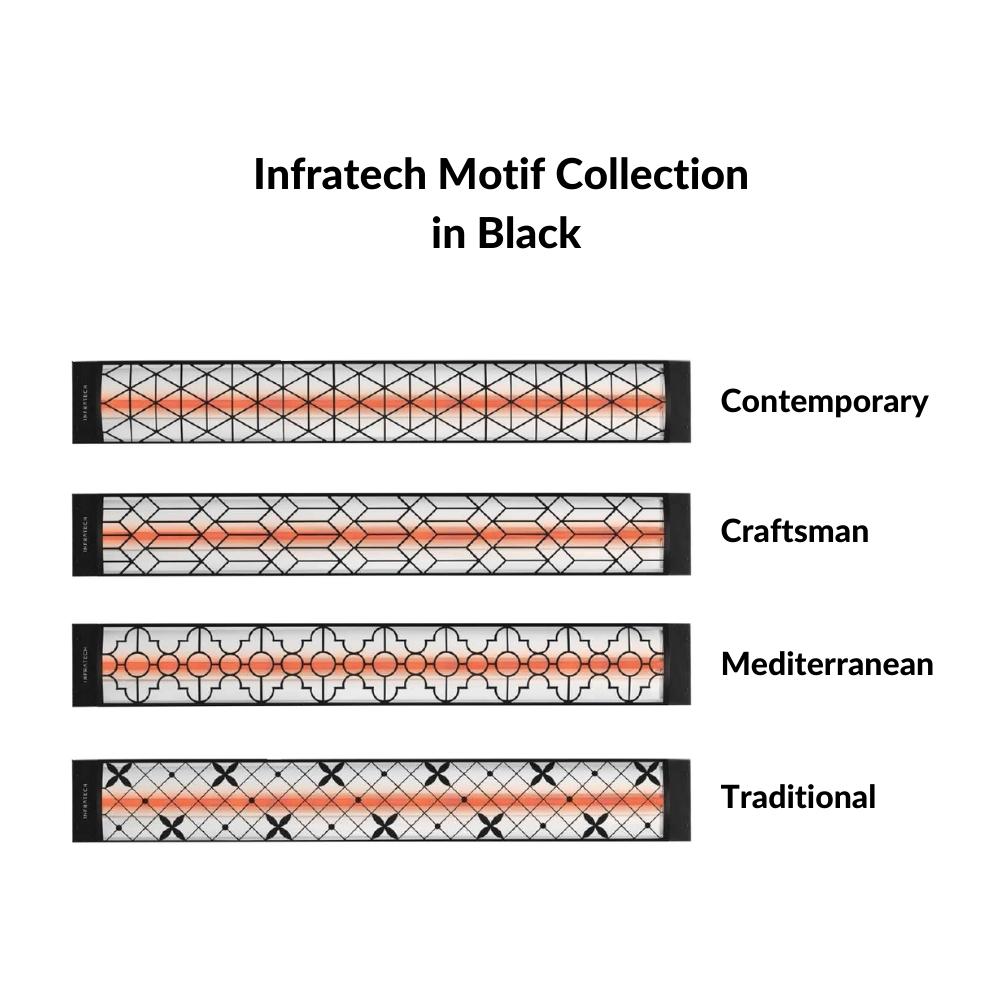

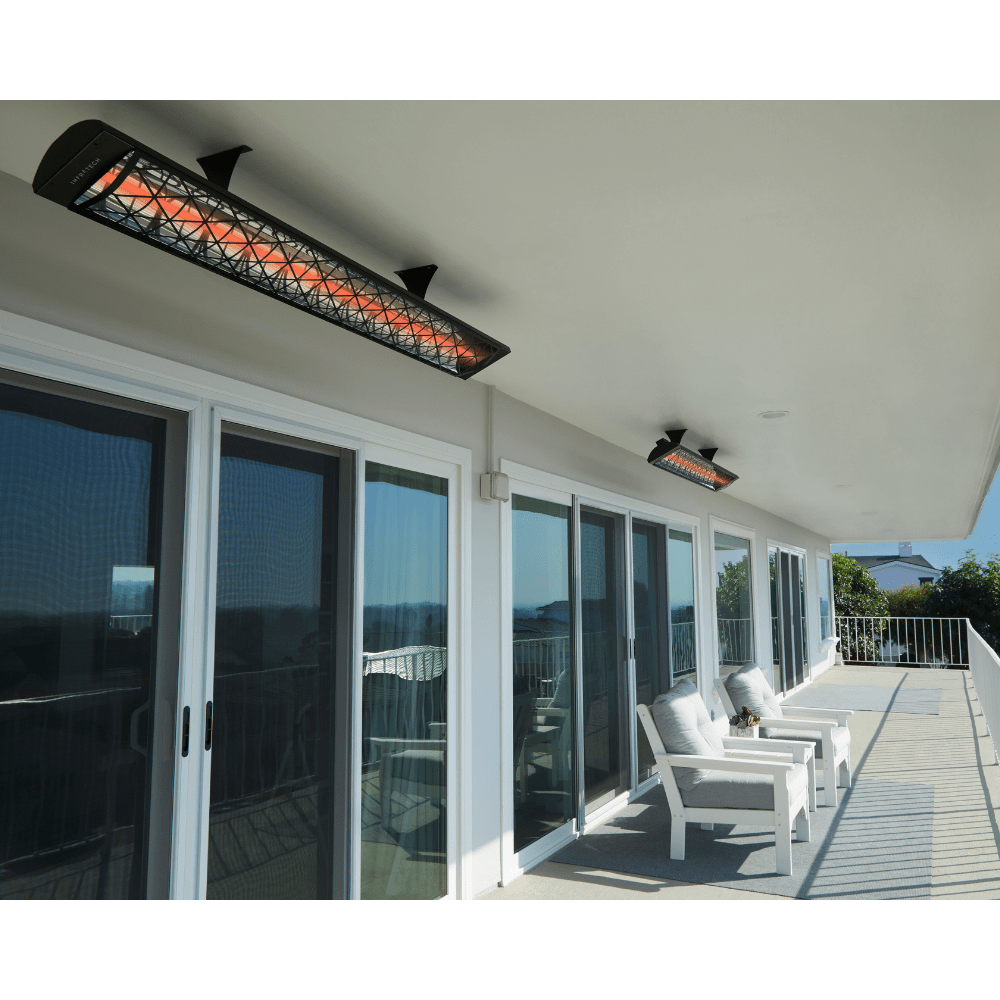

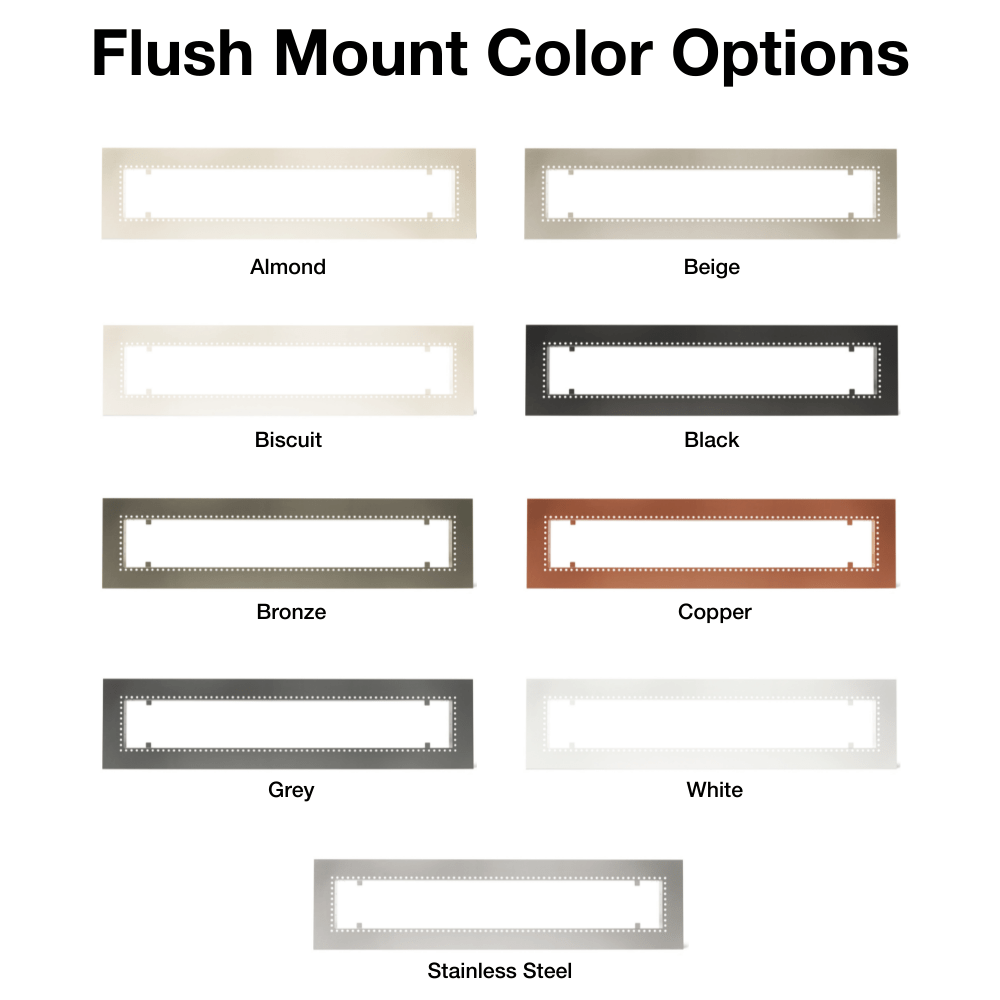

A Drop Pole Kit is available to let your heater hang from the ceiling, great for high or uneven ceilings. Flush Mount Frames give your unit a seamless mount on the wall or ceiling. Add style to your patio heater with a Contemporary, Traditional, Craftsman, or Mediterranean Fascia Kit.

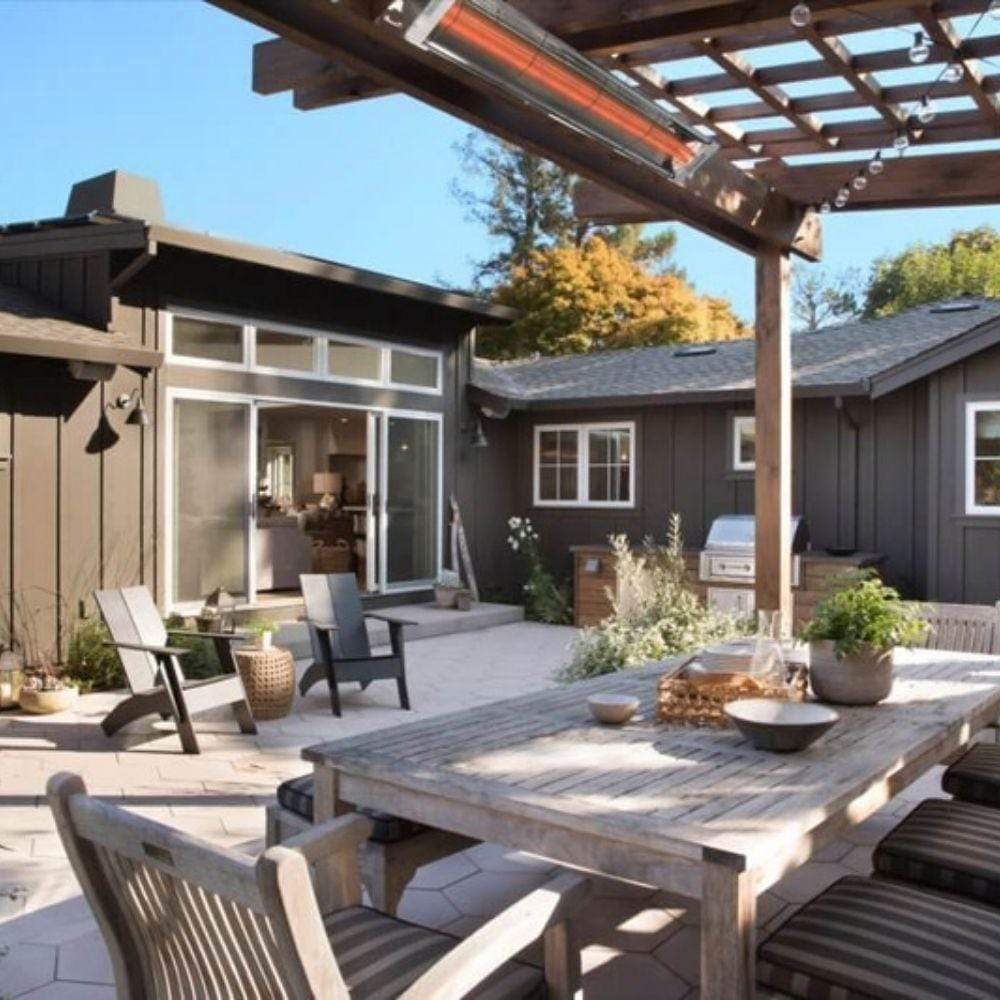

The best angle to install this heater is approximately 45º. If installed outdoors, it is best to install it on the "cold side" for efficient heating and under a protective roof or weather cover, whenever possible. Even with its all-weather construction, your heater will last longer and look better if it is protected from rain and snow.

Features

  • Electric Patio Heater for Outdoor or Indoor use
  • Stainless Steel Construction ensures it won't rust to the elements.
  • Quartz Element with Approximately 5,000 hours of use
  • Wall, Ceiling, or Pole Mounted at a height of 10 to 14 ft, freeing up floor space
  • May be angled from 0° to 60° to position heat exactly where you want it
  • Inset Brackets are hidden behind the unit for a clean look

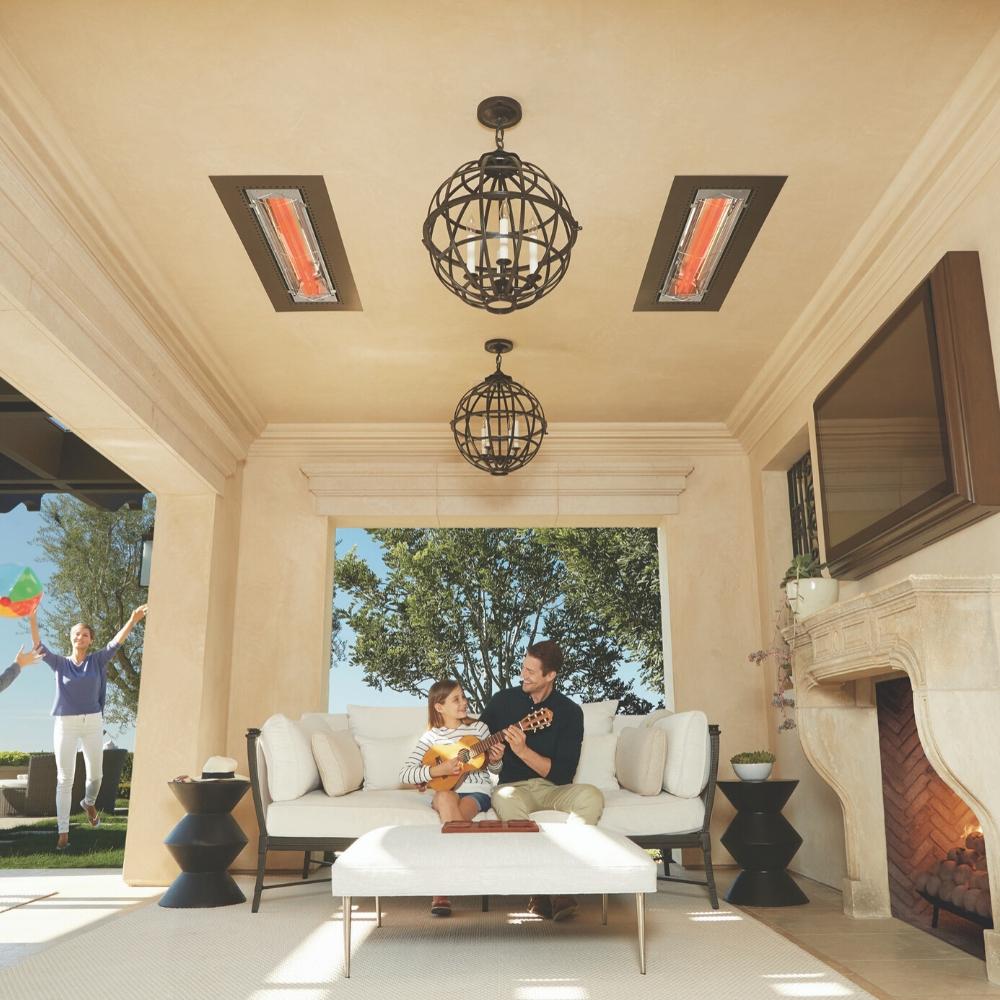

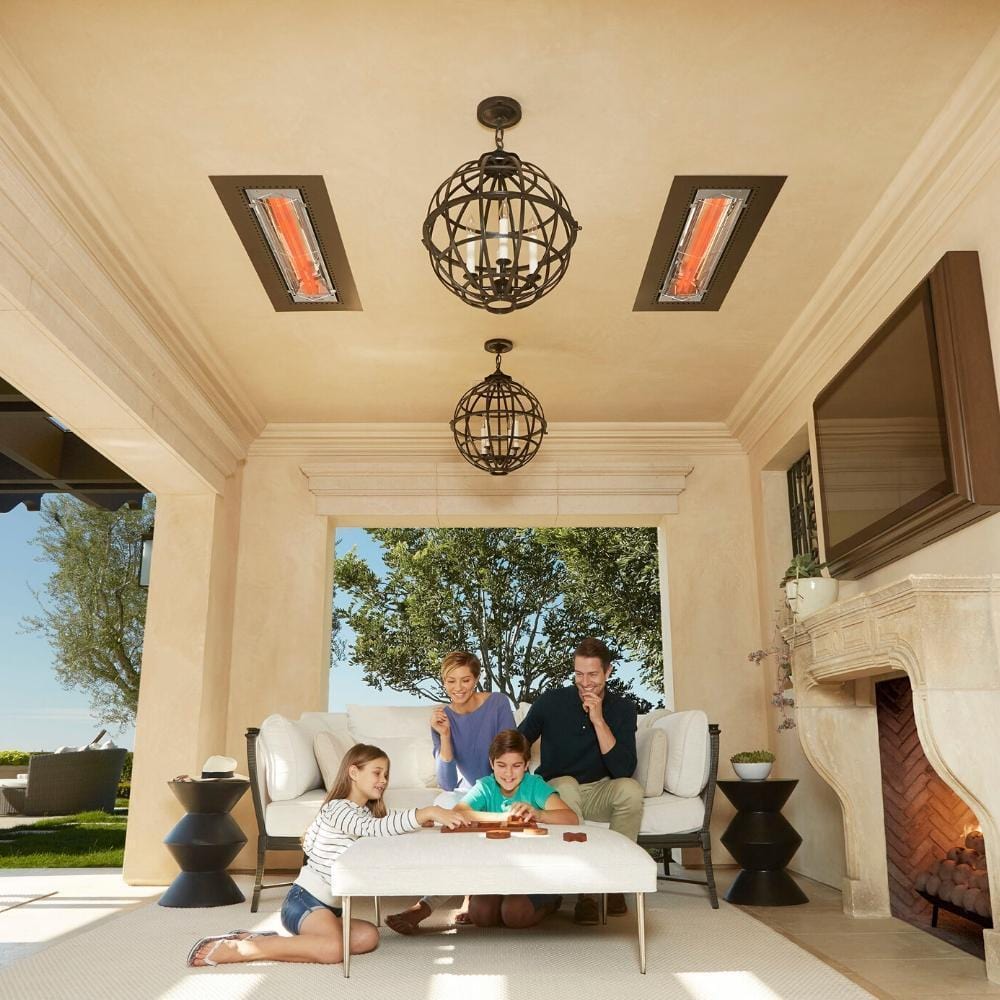

  • Can be recessed into the ceiling with an optional flush mount kit

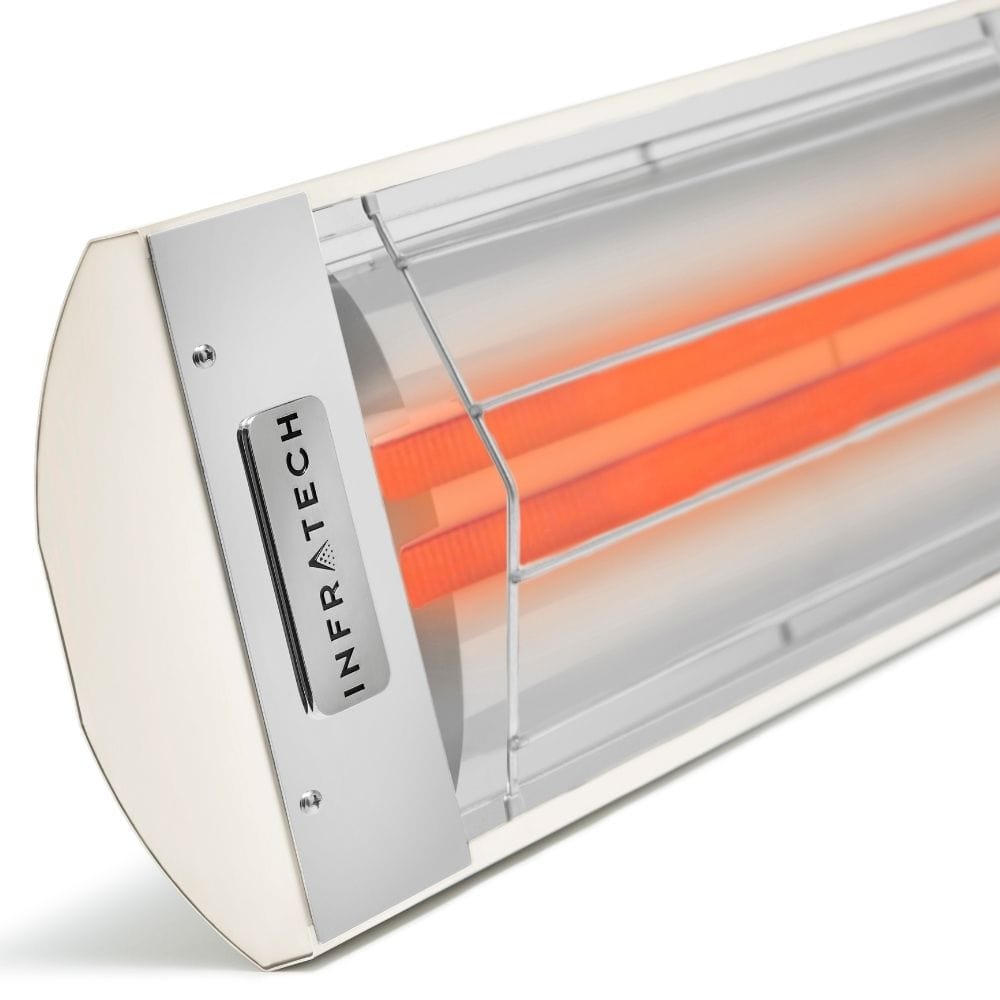

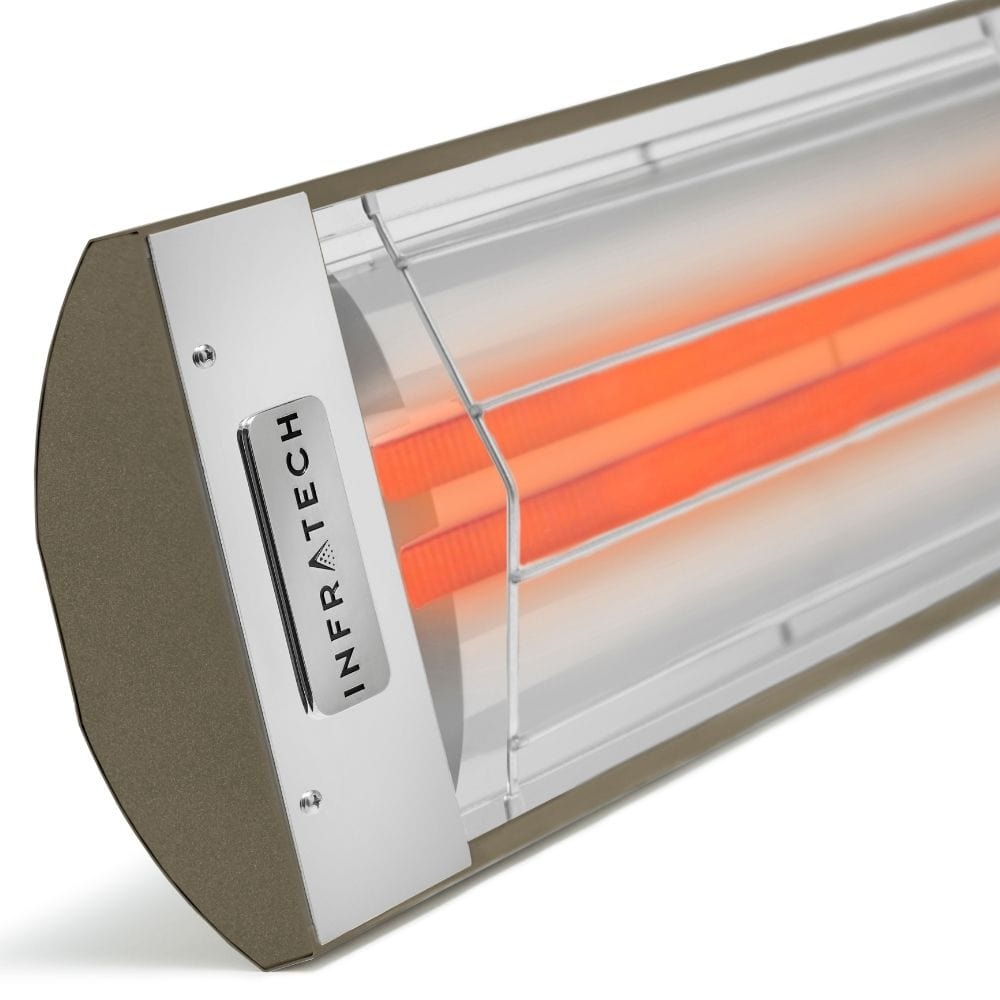

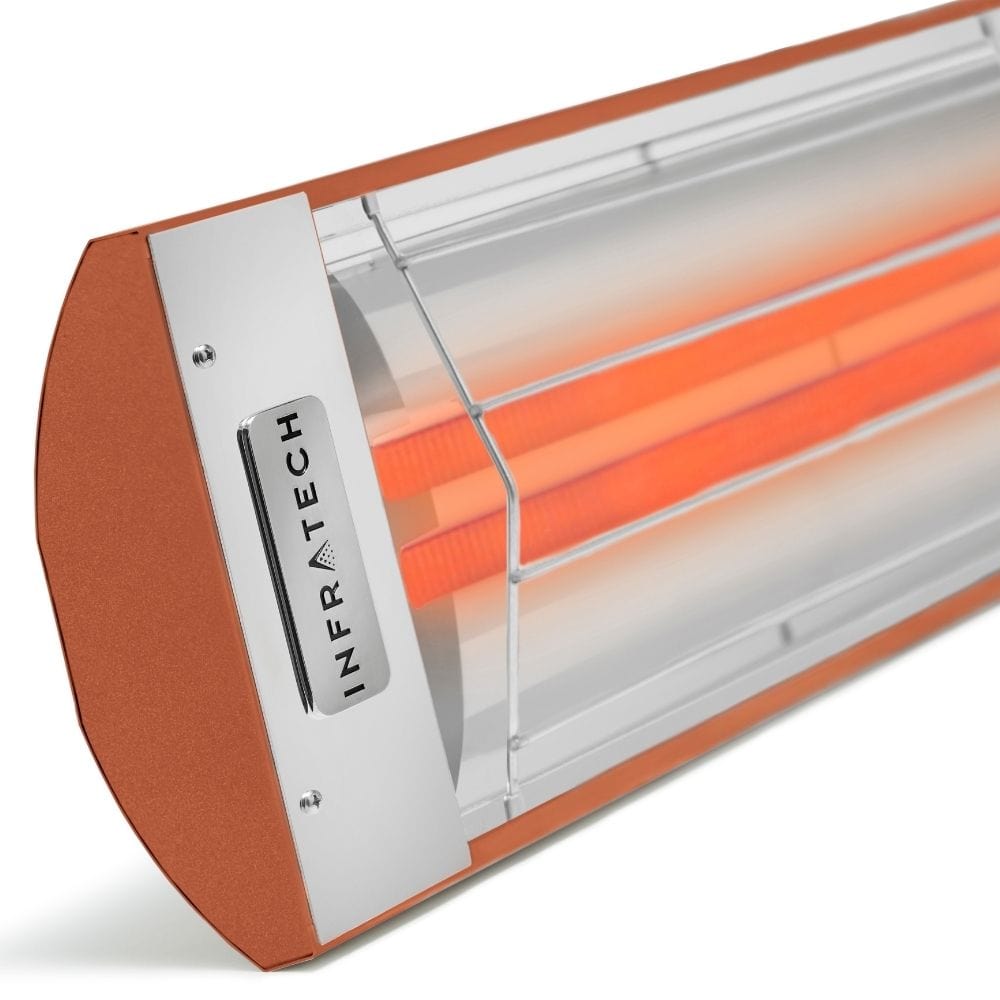

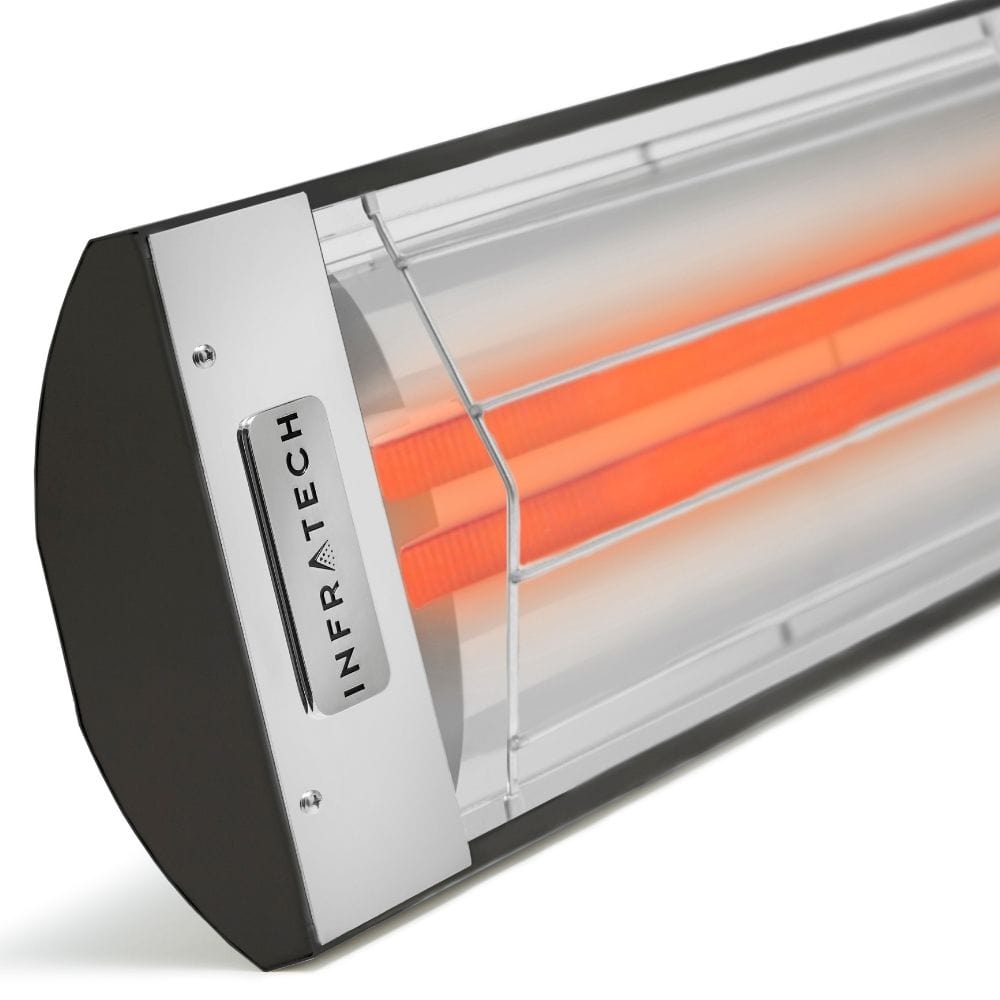

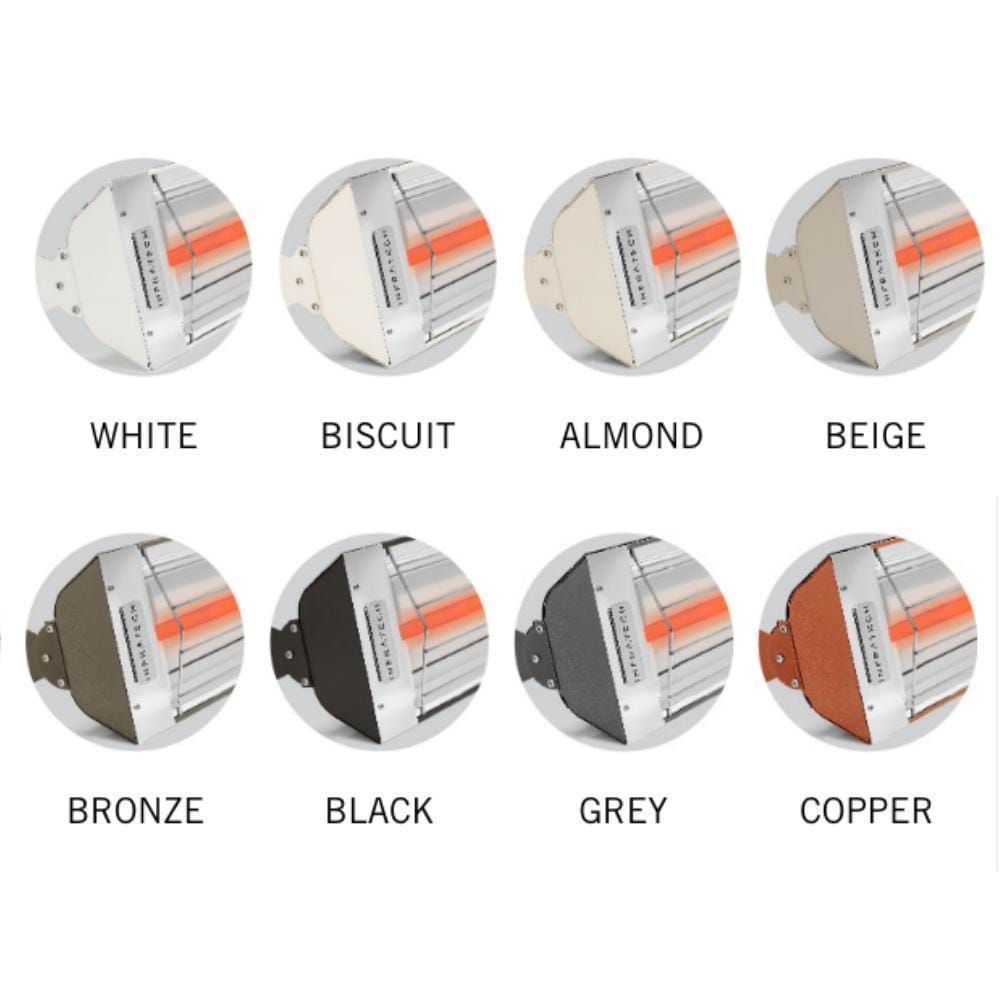

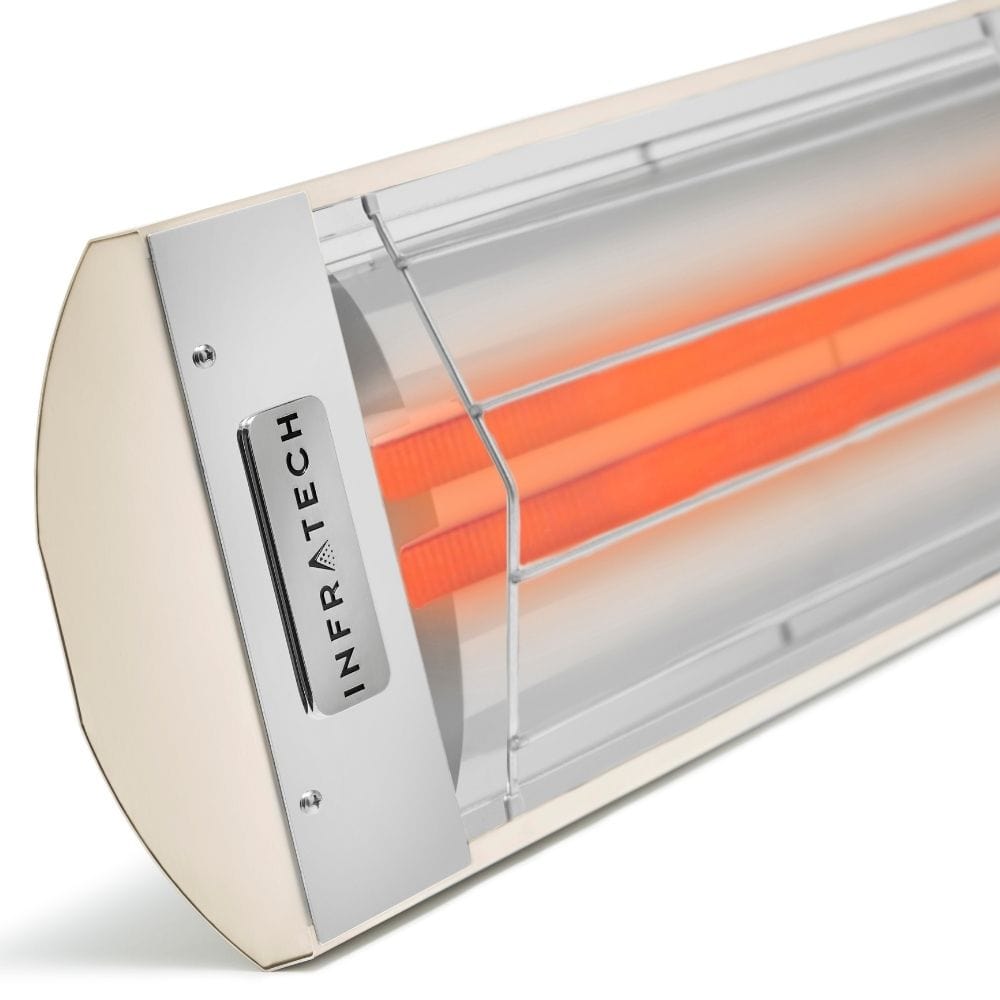

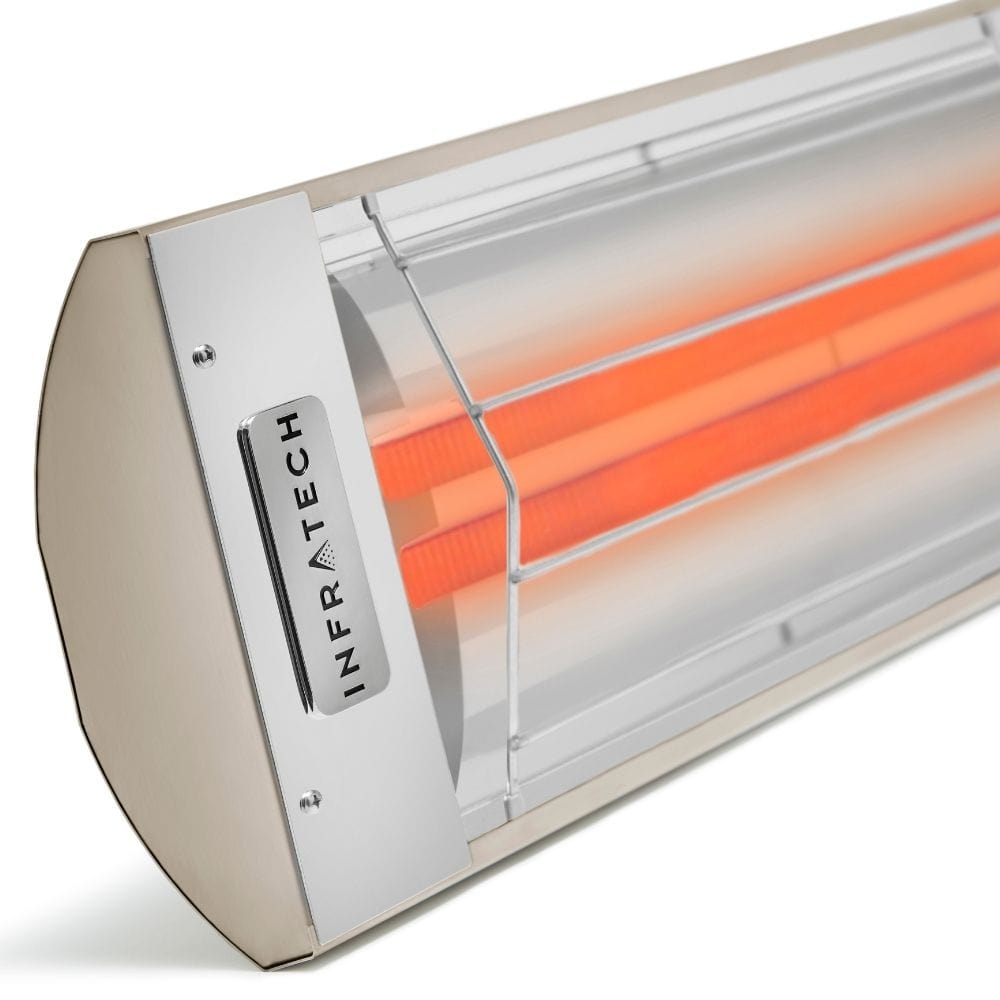

  • Complement your decor with custom powder coating in Almond, Beige, Biscuit, Black, Bronze, Copper, Grey, or White (with extra cost and 2 to 3-week lead time)
  • Includes a Dual Duplex Switch to control each element for high/low heat
  • For Sleep Timer and other control options, get an Analog Controller or a Home Management System for Smart home integration
  • Minimal Maintenance Costs compared to gas
  • Infratech heaters are compatible with top-selling Smart Home systems like Lutron™, Crestron™, and Control 4™ for a completely modern home.
  • Available in 208V, 240V, 277V, or 480V to suit your needs
  • IPX4 Rating certifies protection from mild splashes of water
  • Heaters greater than 240 Volts are for “Commercial Use Only. Risk of fire. Do not use it as a residential or household heater.”
  • Average Coverage Area: 11' x 11'
  • 6,000 Watts
  • 20,472 BTU
  • Dimensions: 61 1/4" L x 8 3/16" W
  • UL Listed
  • Made in the USA
  • 3-Year Warranty

Specifications & Manuals

  • Fuel Type
    Electric
  • Venting Type
    Ventless
  • Installation
    Indoor, Outdoor, Wall Mounted, Ceiling Mounted, Pole Mounted
  • Style
    Panel
  • Width
    61 1/4 in
  • Height
    8 3/16 in
  • Depth
    8 3/16 in
  • BTU Output
    20,472 BTU
  • Heat Coverage
    11 ft. x 11 ft.
  • Voltage
    240V
  • Wattage
    6,000W
  • Ignition Type
    Electronic Ignition
  • Mounting Height
    10-14 ft.
  • Material
    Stainless Steel
  • Color
    Black, Gray, Copper, Bronze
  • IP Rating
    IPX4
  • Certifications
    UL Listed
  • Warranty
    3-Year Warranty
  • Manuals

What's In The Box

  • Electric Patio Heater - 1 pc.
  • Mounting Bracket - 1 set
  • Dual Duplex Switch - 1 pc.
  • User's Manual - 1 pc.
