Bromic Platinum 2300W 33-Inch Wall/Ceiling Electric Patio Heater

The Platinum 2300W Brings Low-Profile Heat to Compact Outdoor Spaces

The Bromic Platinum 2300W is a 33-inch electric patio heater for wall, ceiling, or recessed mounting with black, white, and marine-grade options.

Compact Heating for Design-Focused Areas

The Bromic Platinum 2300W is the smaller single-element model in the Platinum Electric lineup. Its 33-inch width makes it a practical fit for compact covered patios, balconies, outdoor dining nooks, and smaller commercial seating zones.

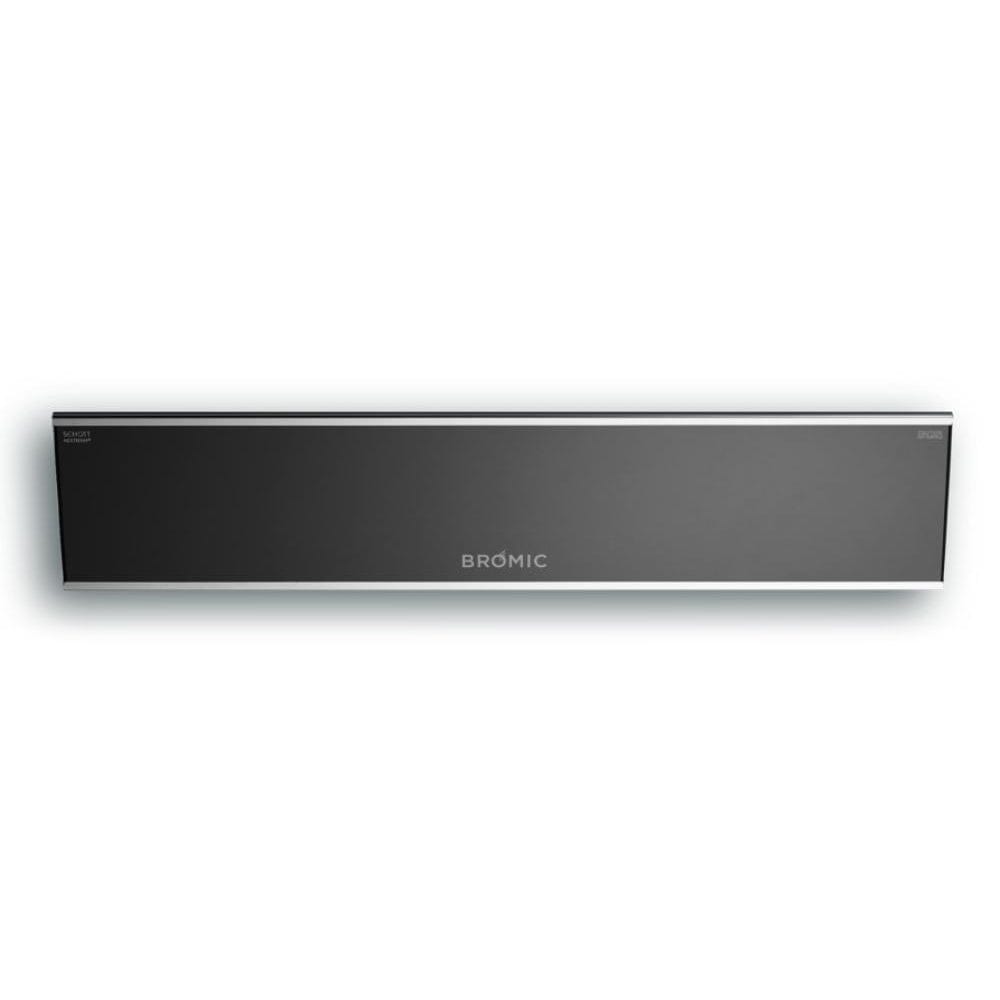

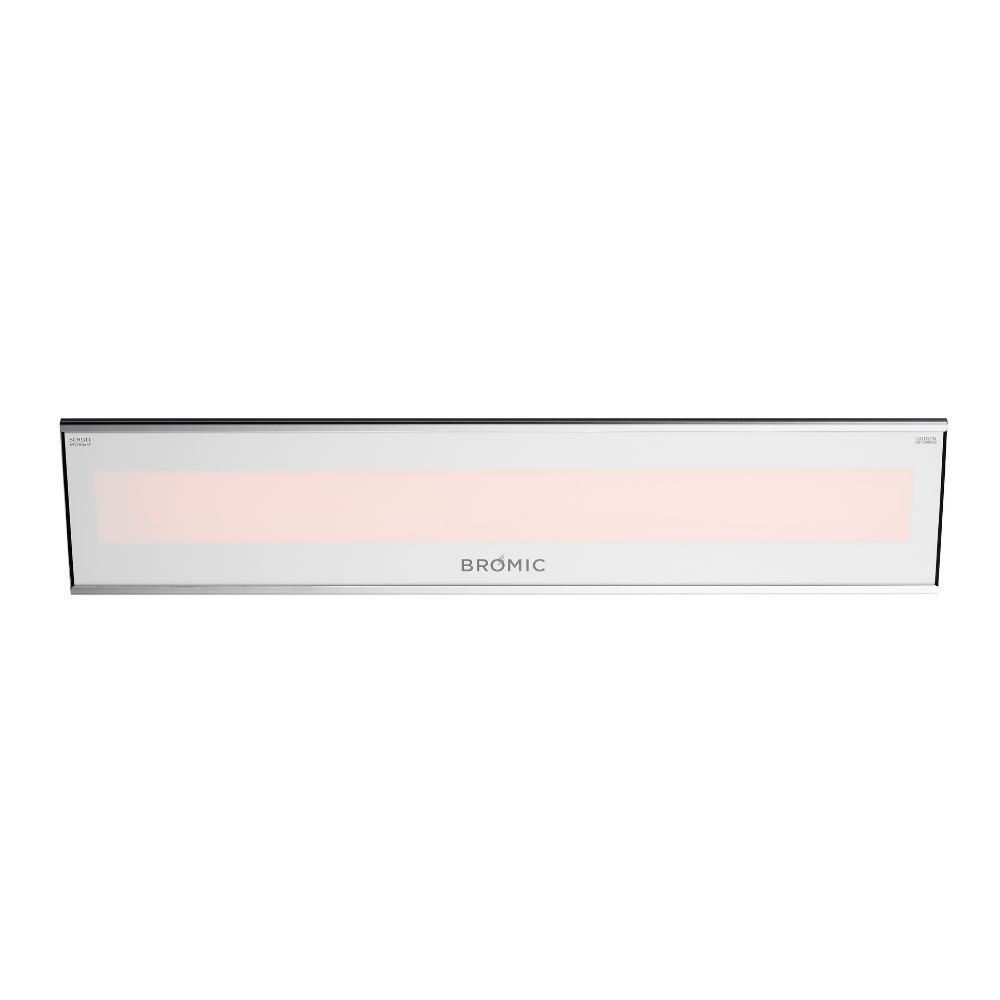

The tinted ceramic-glass face helps create a cleaner appearance than exposed-element heater designs. Black and white finish options allow the heater to better match ceilings, walls, and outdoor design palettes.

Built for Standard and Coastal Installations

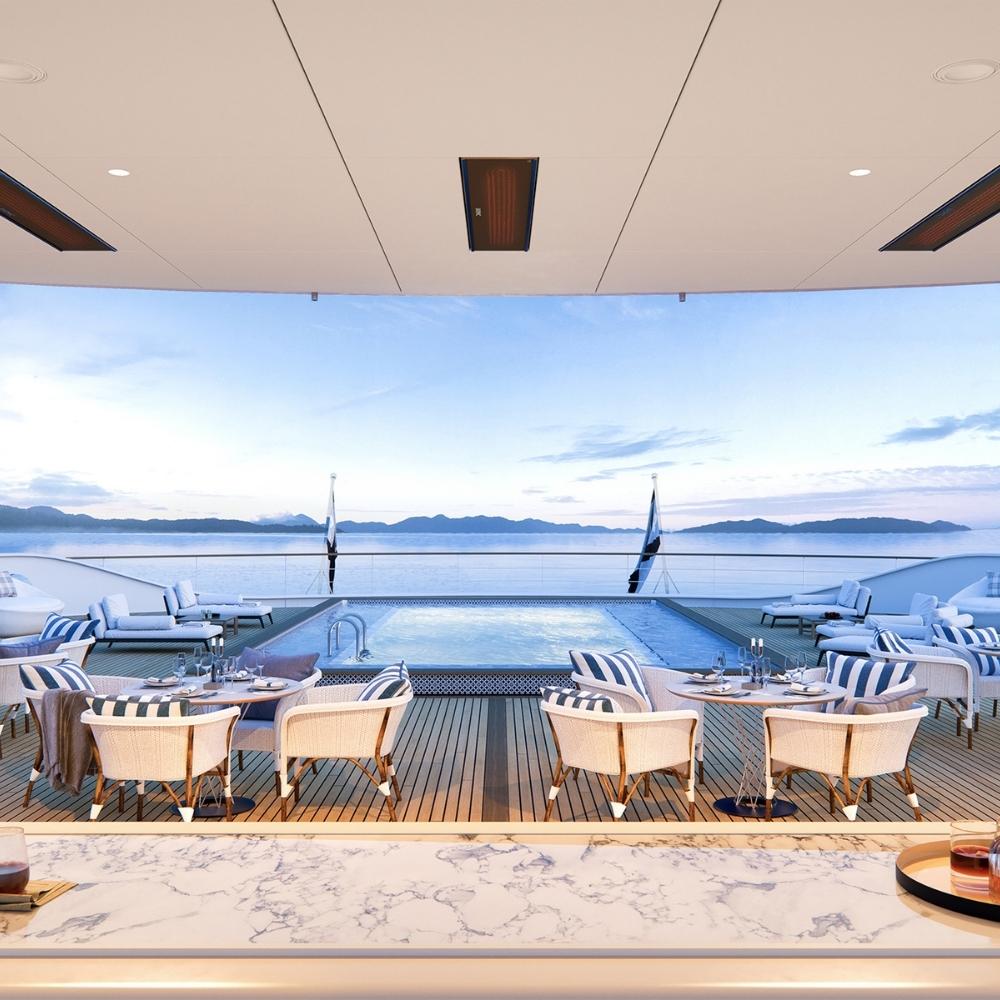

Standard Platinum Electric models use 304 stainless steel construction. Bromic also offers marine-grade versions built with AISI 316 stainless steel for coastal and marine environments.

This gives homeowners, builders, and designers more flexibility when selecting a heater for the installation environment. The correct finish, voltage, and stainless-steel grade should be selected before ordering.

Installation Options

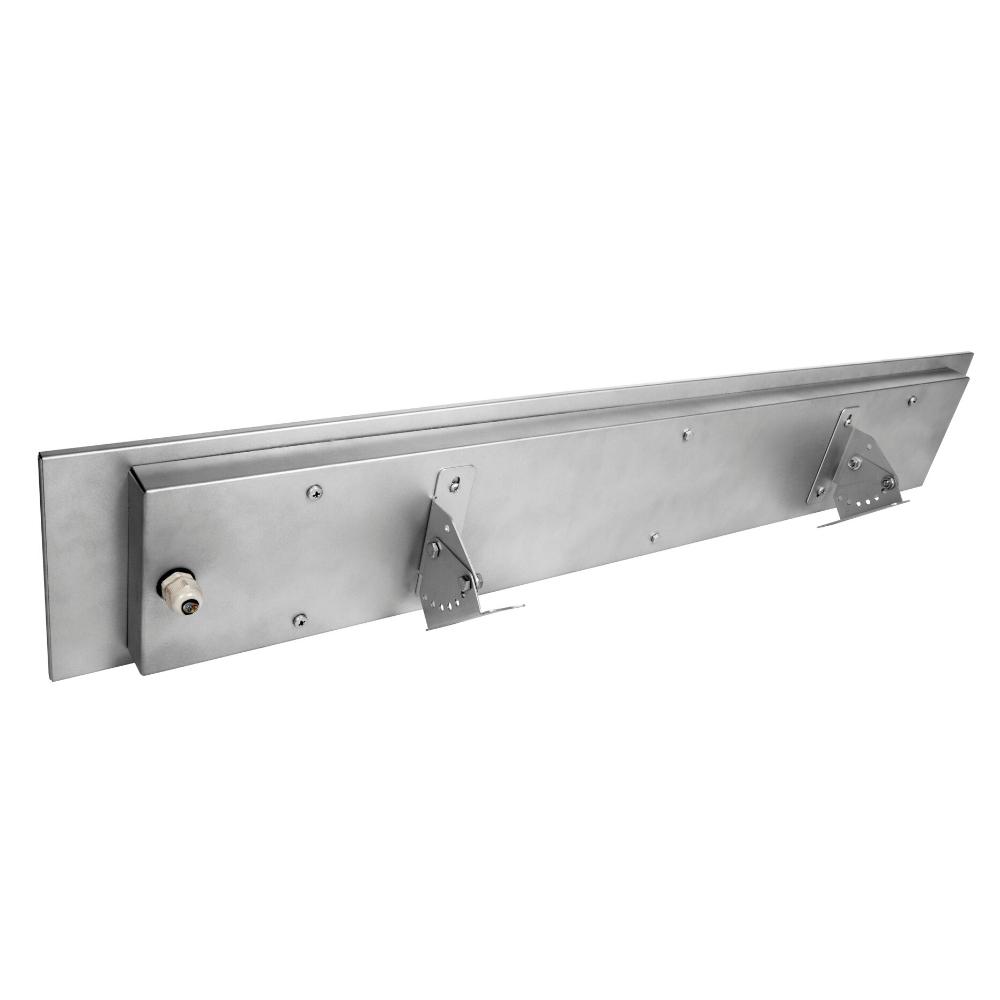

The Bromic Platinum 2300W can be wall mounted or ceiling mounted using the included mounting bracket. It can also be flush mounted with a compatible Bromic ceiling recess kit.

This heater is designed for fixed, hardwired installation. Electrical work must be completed by a licensed technician according to Bromic’s installation manual and local electrical code.

The correct voltage must be selected before installation. Bromic lists 208V and 220–240V configurations for the 2300W Platinum Electric model.

No venting is required because this is an electric patio heater. Placement must follow Bromic’s mounting height, clearance, and outdoor exposure requirements.

Controls & Features

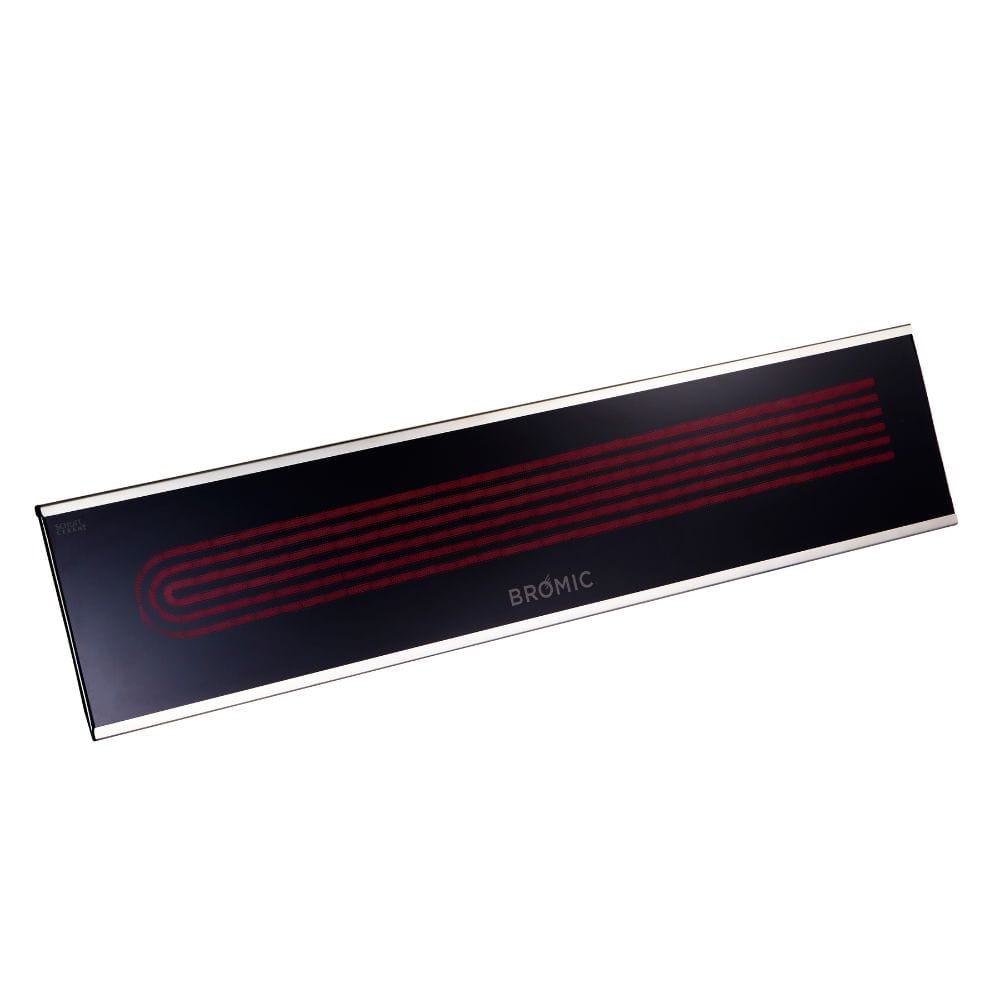

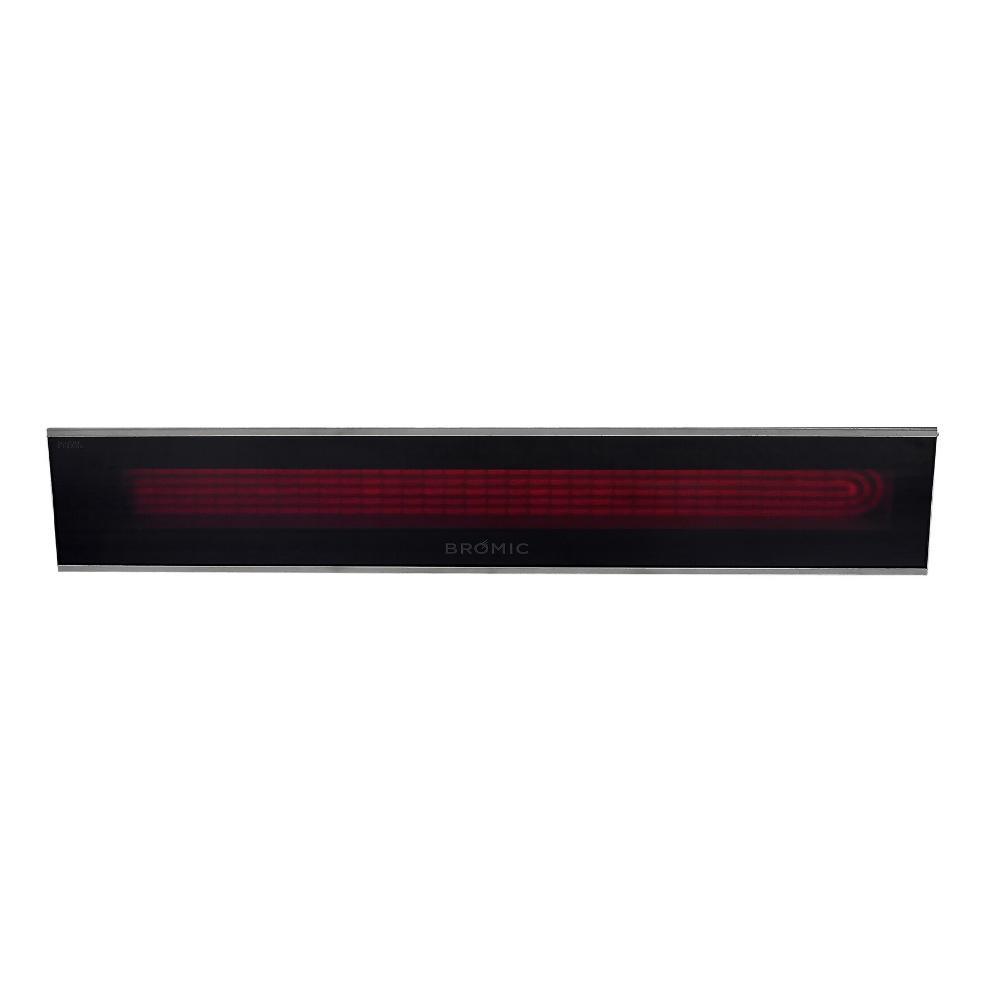

The Platinum 2300W uses electric radiant heat and a single heating element behind a tinted ceramic-glass screen. The heater is designed to direct infrared heat toward the intended seating or dining area.

Compatible Bromic controls include the Affinity On/Off Control and Affinity Dimmer Control. The Affinity Dimmer supports heat-output adjustment in 1% increments when properly installed with compatible electric heaters.

Smart control setup, zoning, schedules, and expansion-board integrations depend on the selected Bromic control accessory. Controls are sold separately unless bundled in a specific package.

Discover more Bromic Patio Heaters in our Bromic Collection!

Need help determining the right heater and setup for your space and heating needs? Fill out our Design Request Form, then give us a call at (866) 713-4844 or email us at support@patiofever.com and we'll be happy to help!

 Product Manual

 Brochure

 Marine Grade Brochure

 Specs

Design Request Form

Bromic Platinum Smart-Heat Electric Patio Heater Videos:

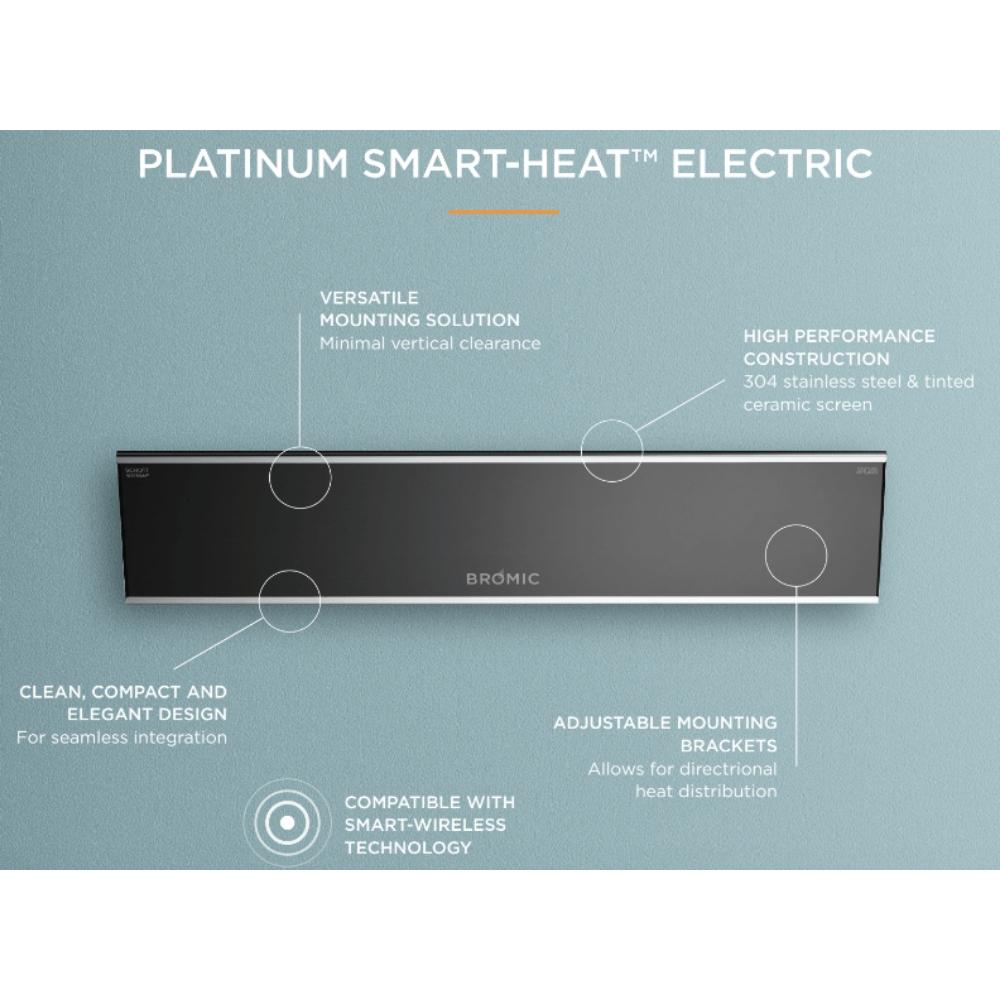

Key Features:

• Award-winning electric patio heater brings style and comfort indoors/outdoors
• Versatile installation with low vertical clearances and multiple mounting options.
• Adjustable mounting brackets allow precise directional heating.

• Smart system compatibility and single switch activation make it easy to use and allow users to simply set and forget.
• Tinted glass-ceramic fascia spreads heat evenly across a large coverage area.

Other Features:

• Mount it at a height of 6 ft (wall-mounted) or 8 ft (ceiling-mounted) for optimal heating.
• Remote control with optional Bromic wireless controller for your convenience.

• Built with Premium Stainless Steel to provide reliable performance and durability.
• ETL Approved, the product complies with North American safety standards

Specifications:

What's in the Box:

• Electric Patio Heater - 1 pc.
• Mounting Bracket - 1 set
• User's Manual - 1 pc.

Recommendations:

Heat area is dependent on ambient temperature and wind. Optimum conditions experienced at approx 60°F and in a low wind-covered environment.

Actual heat output will depend on several factors, particularly for outdoor installation. Ambient temperature, wind conditions, mounting height, and patio setup should be considered.

To control your Bromic Platinum on your smartphone, add an Affinity On/Off Control or an Affinity Dimmer Control. An expander board is required to integrate the Affinity Control accessories with your smart home automation system or business management system.

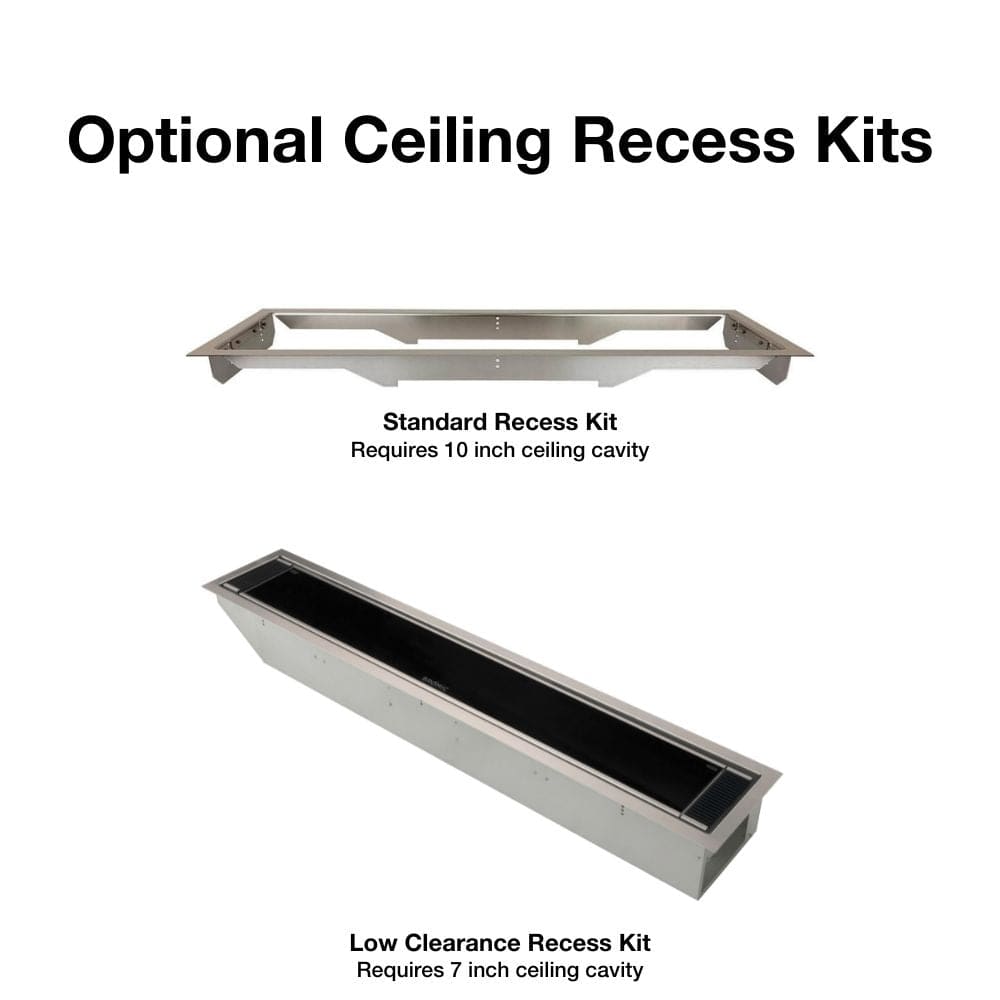

An optional flush mount kit and tube suspension kit are available for additional installation options. Flush Mounted Installs must be done by a qualified person. See this guide for more info on the clearances for recessed heaters.
