WD3024SS

Infratech WD Series 33" 3000 Watt Dual Element Infrared Electric Heater

3 reviews
Color
Stainless Steel
Almond
Beige
Biscuit
Black
Bronze
Copper
Grey
White
Voltage

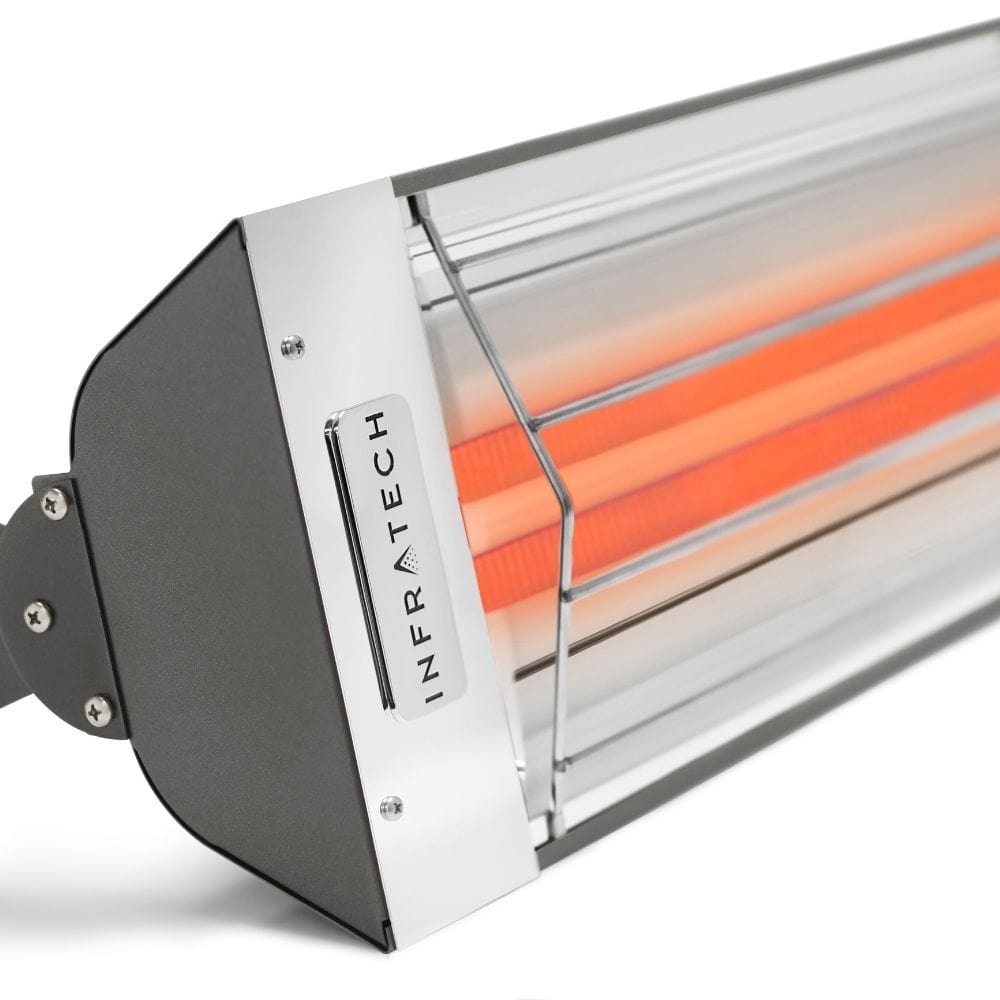

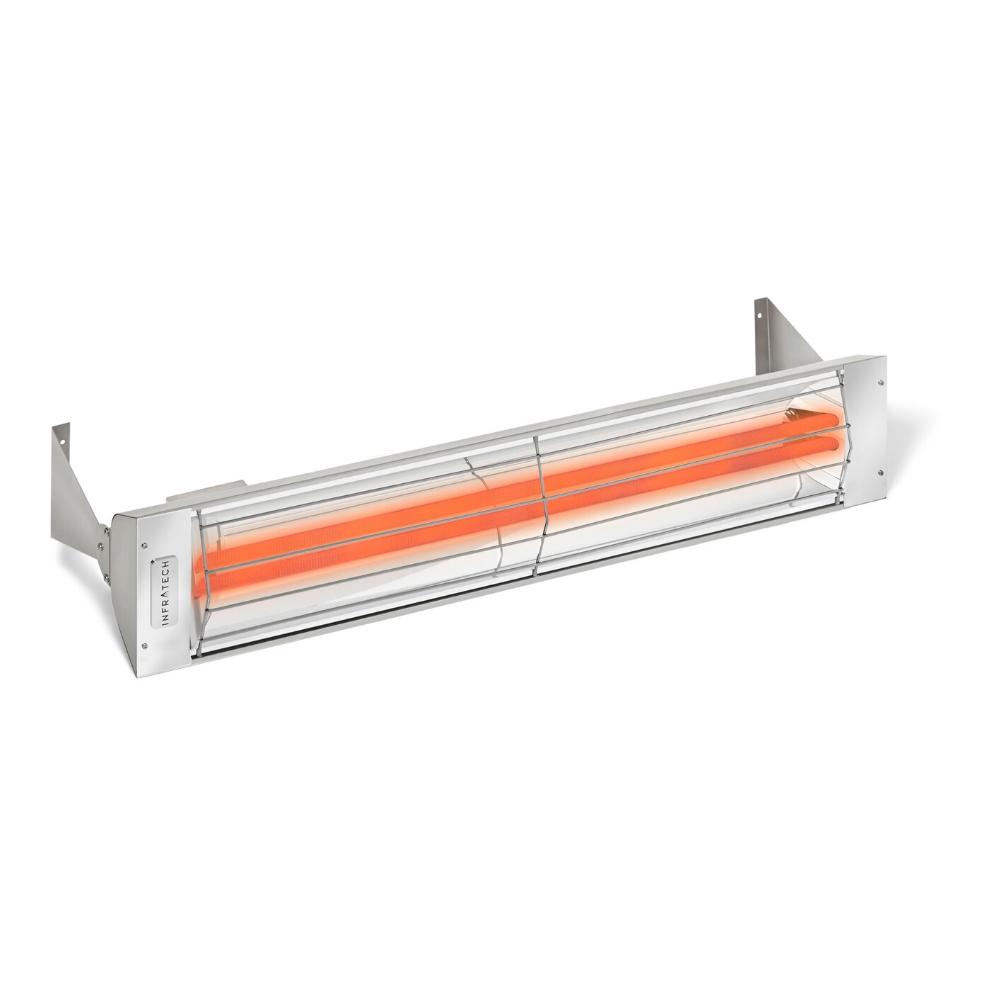

  • Infratech 33" WD Series heater is a classic stainless steel dual element patio heater that can be installed anywhere you want. This infrared electric heater produces 3000 Watts of heat covering a 7' x 7' area and works well with almost any control option even smart home systems.

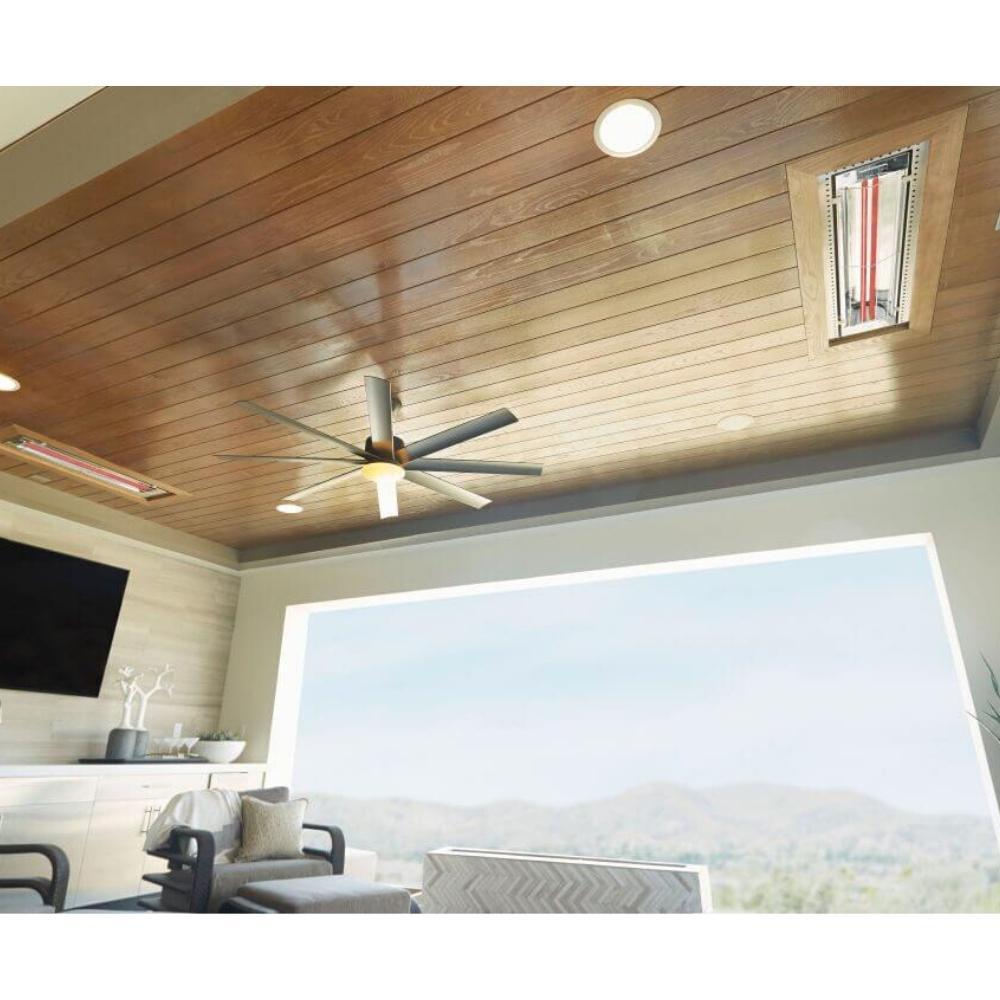

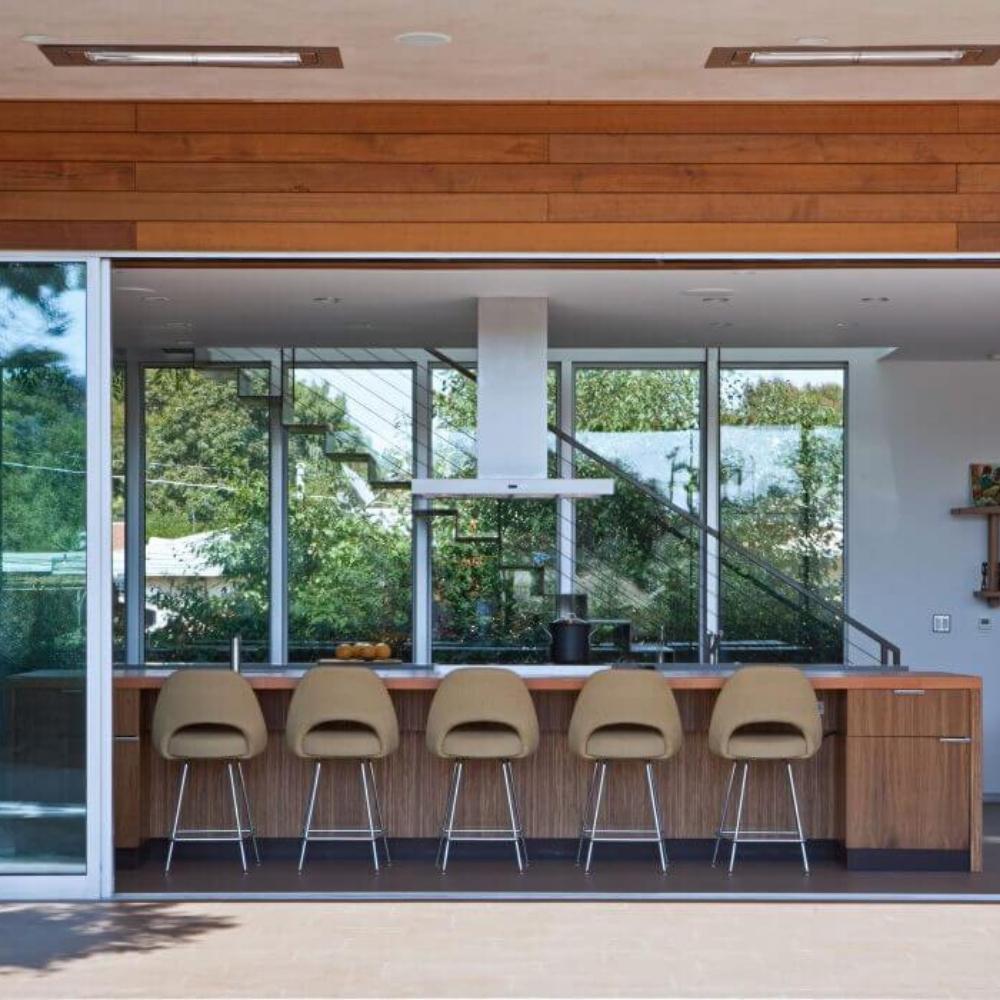

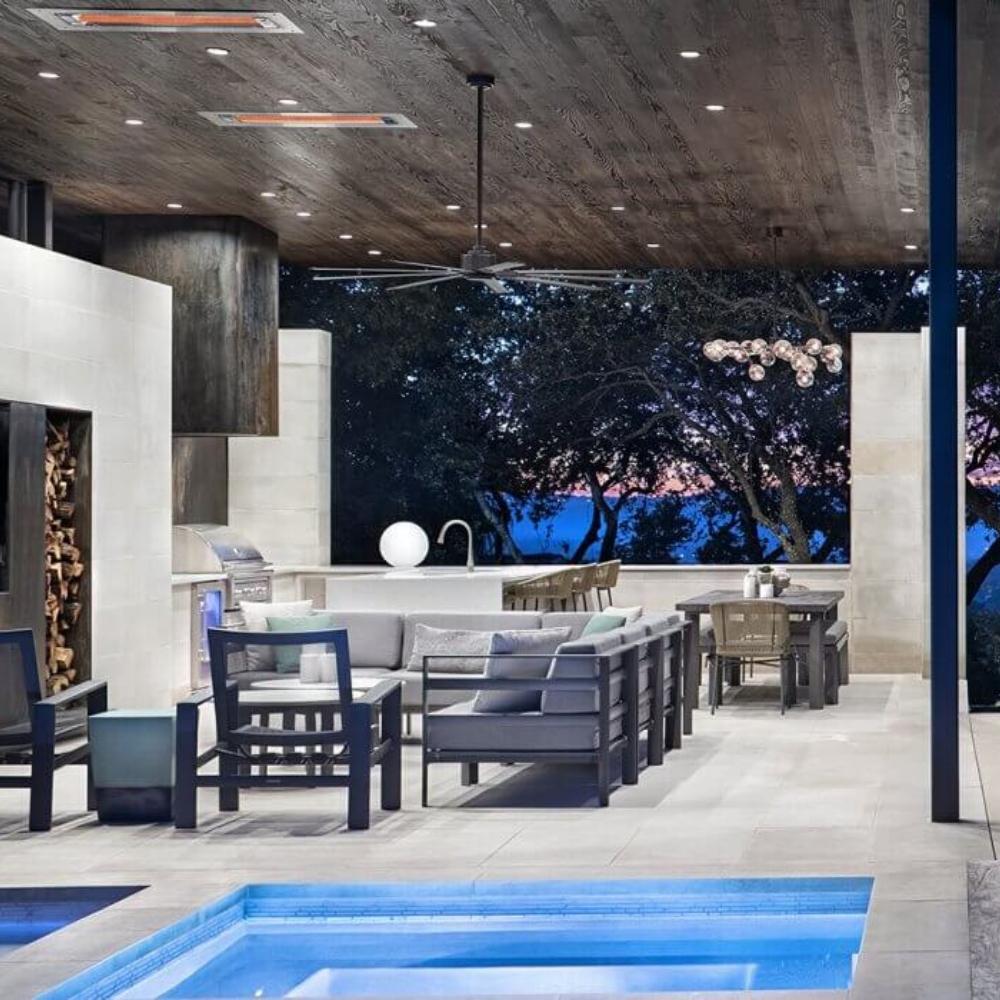

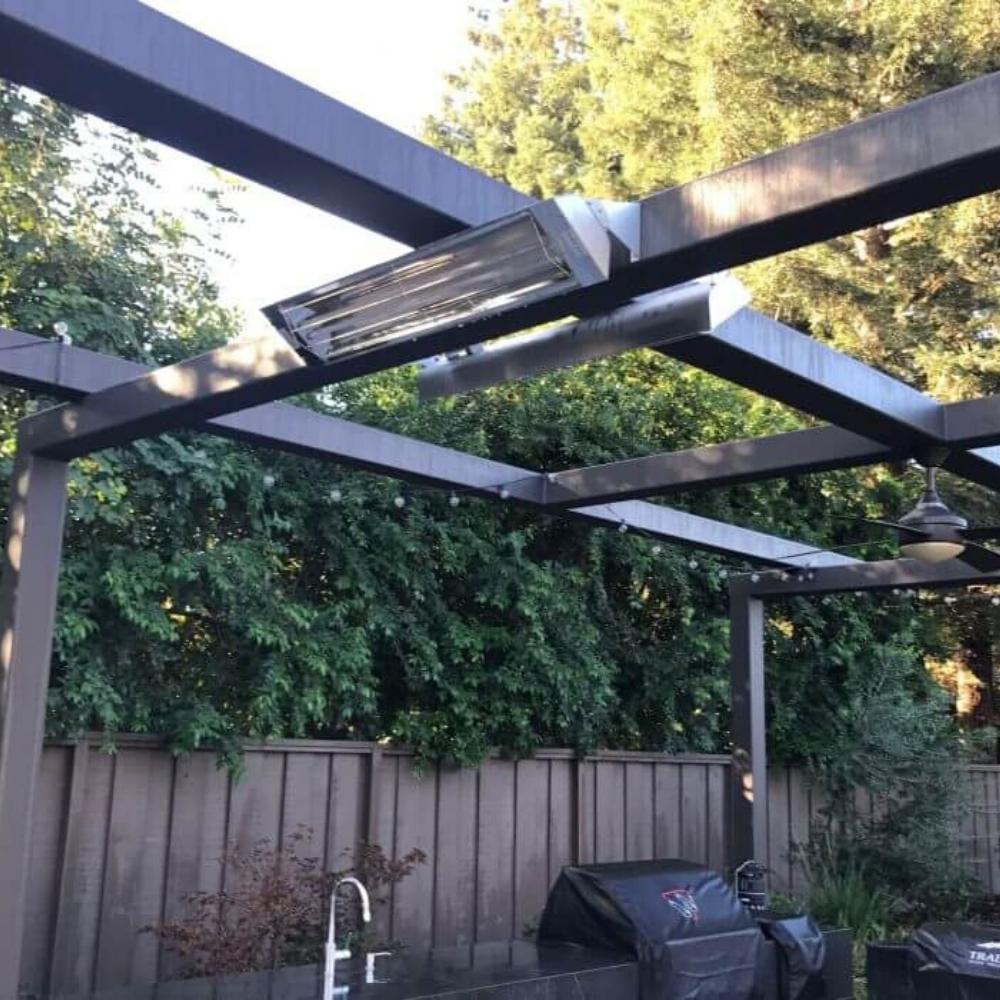

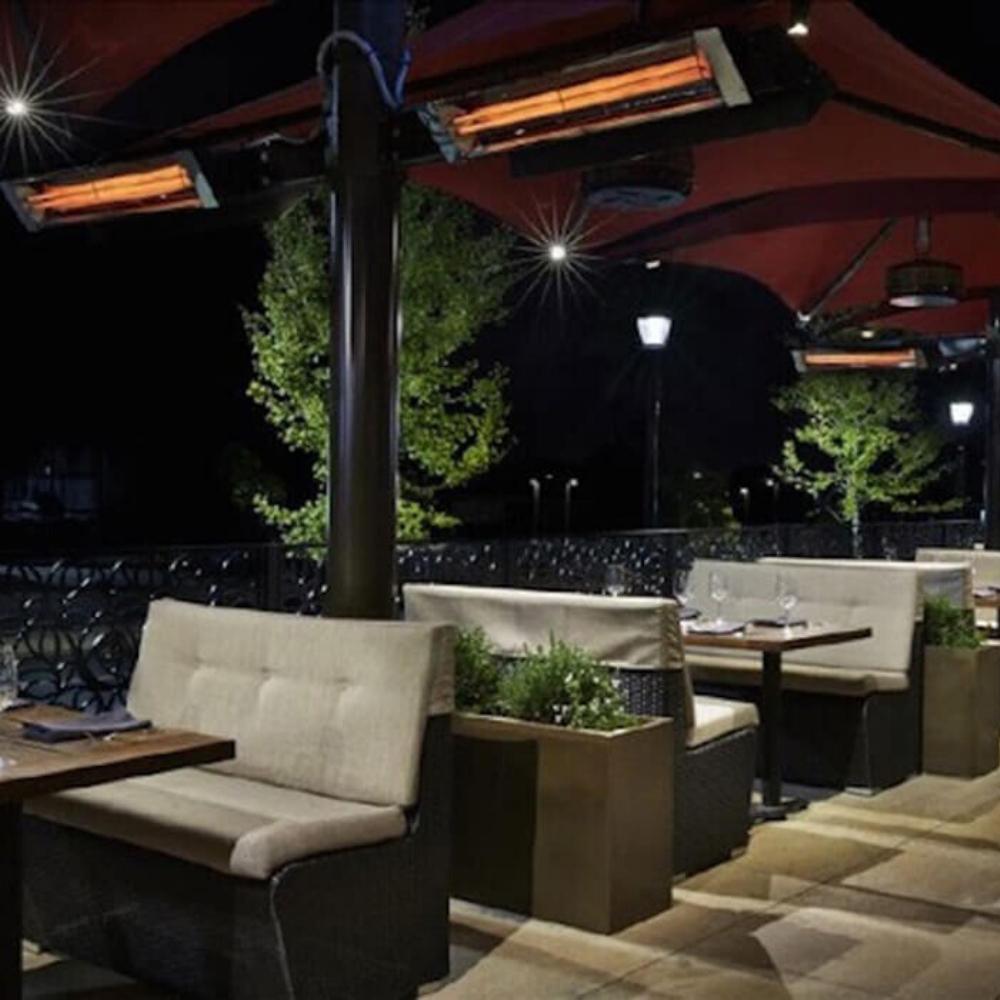

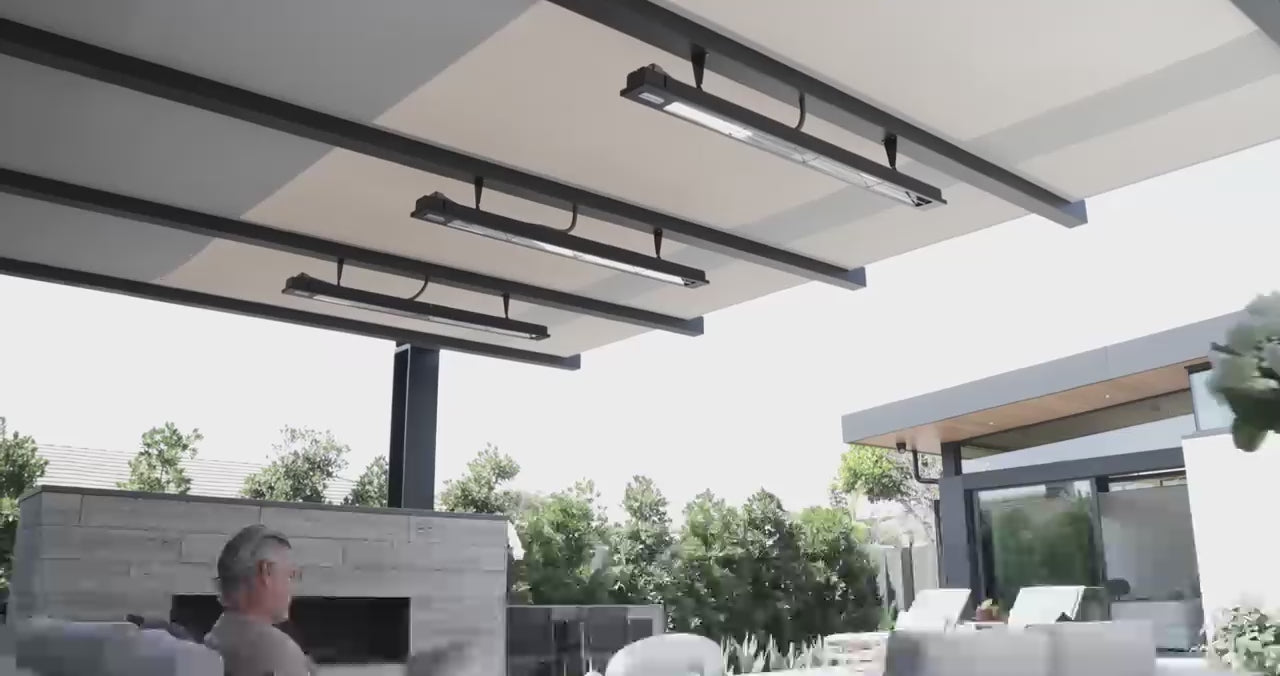

    WD Series heater is a great choice for pole, wall, or ceiling mounting. It comes with swivel mounting brackets for easy installation. It looks even better when recessed with the optional flush mount kit.

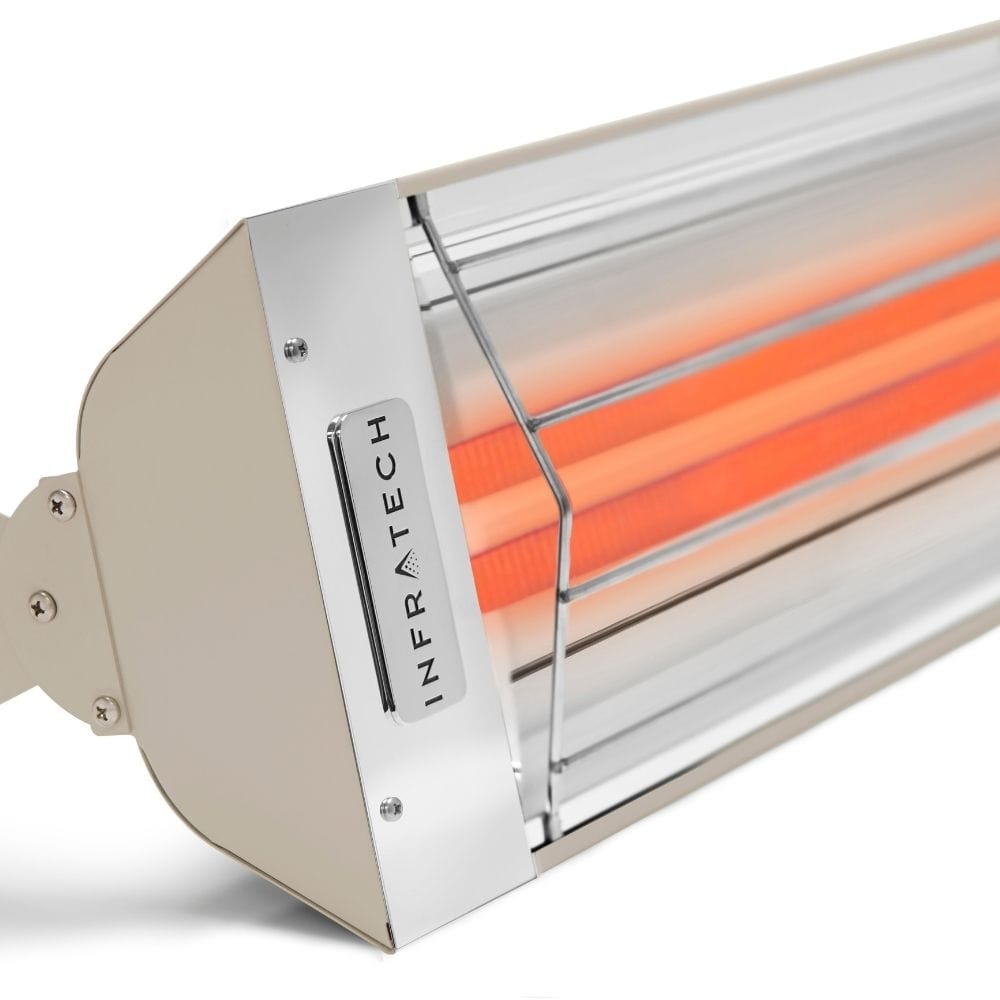

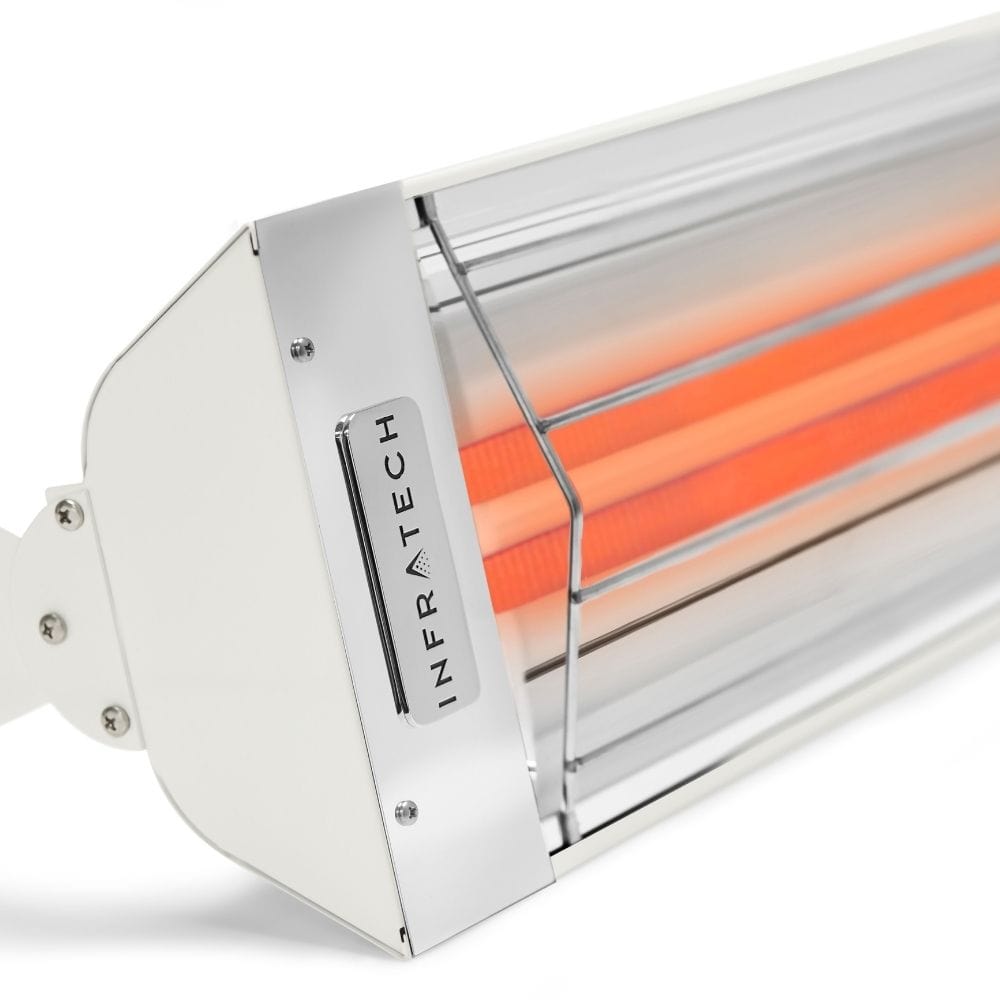

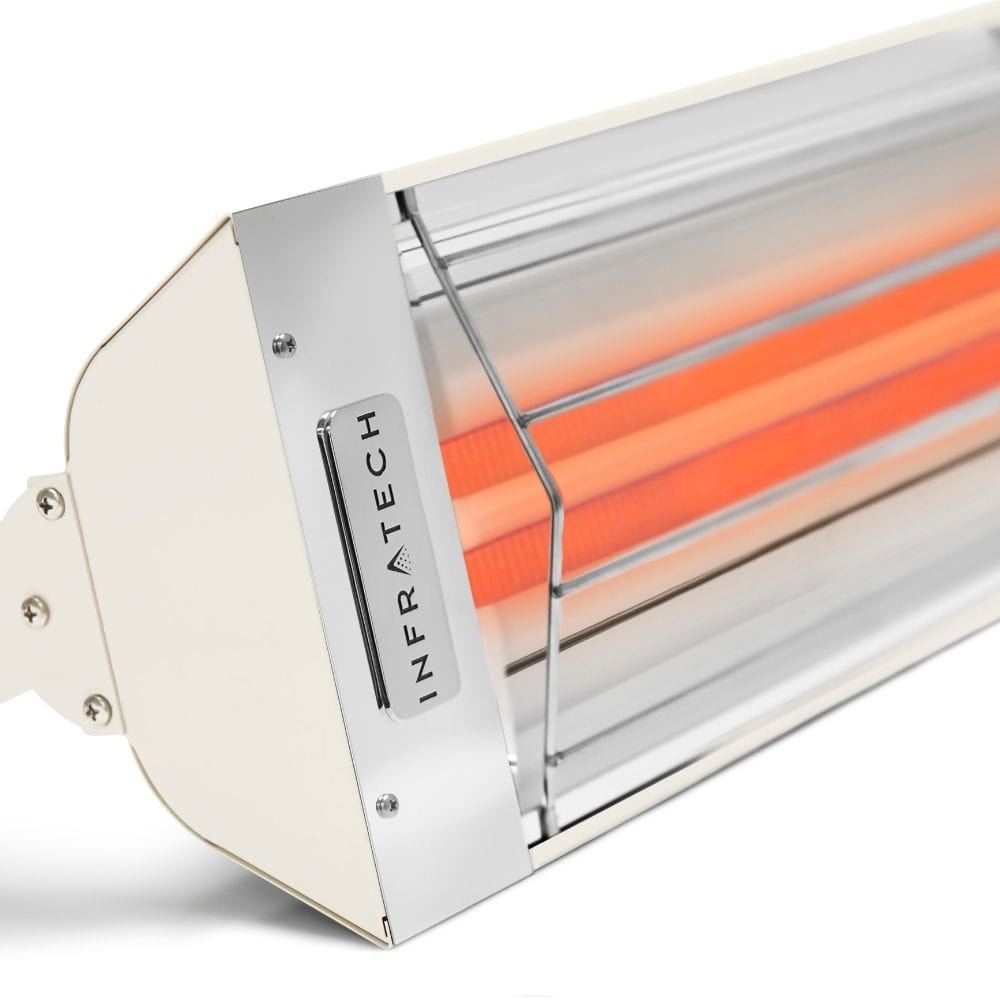

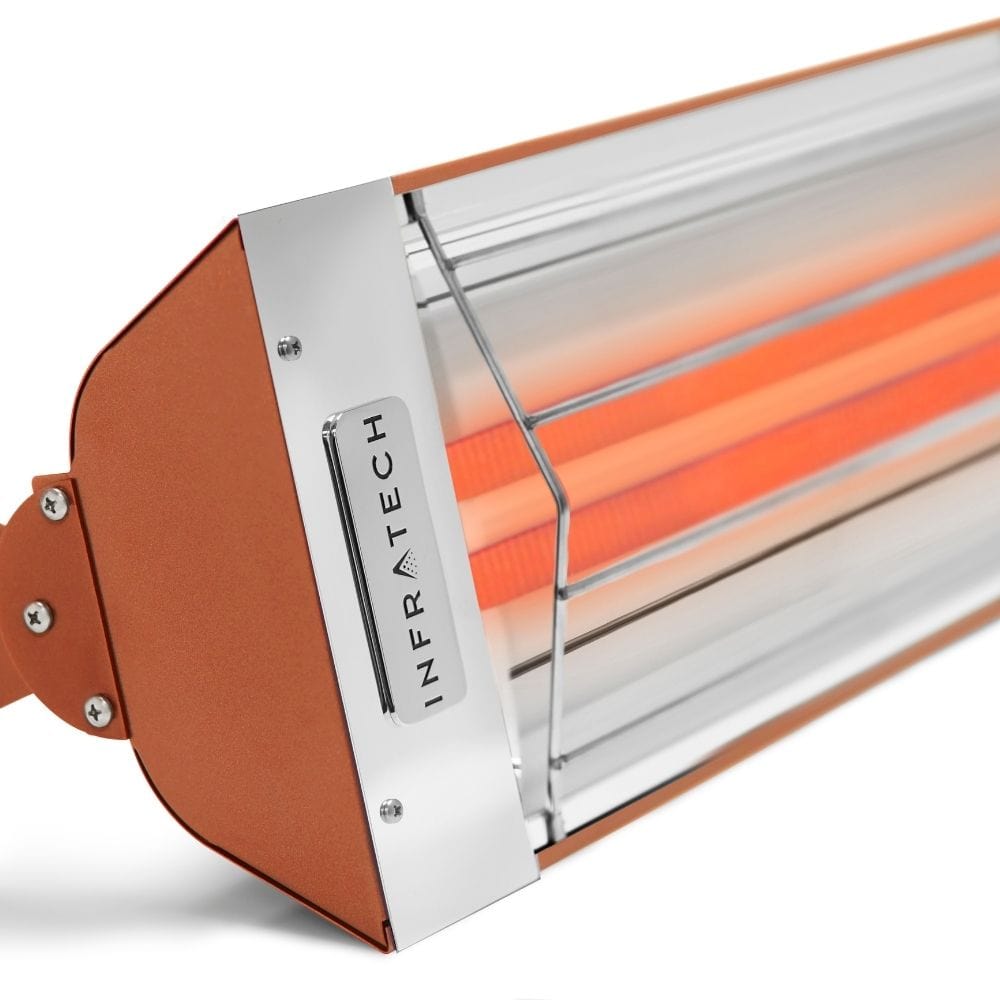

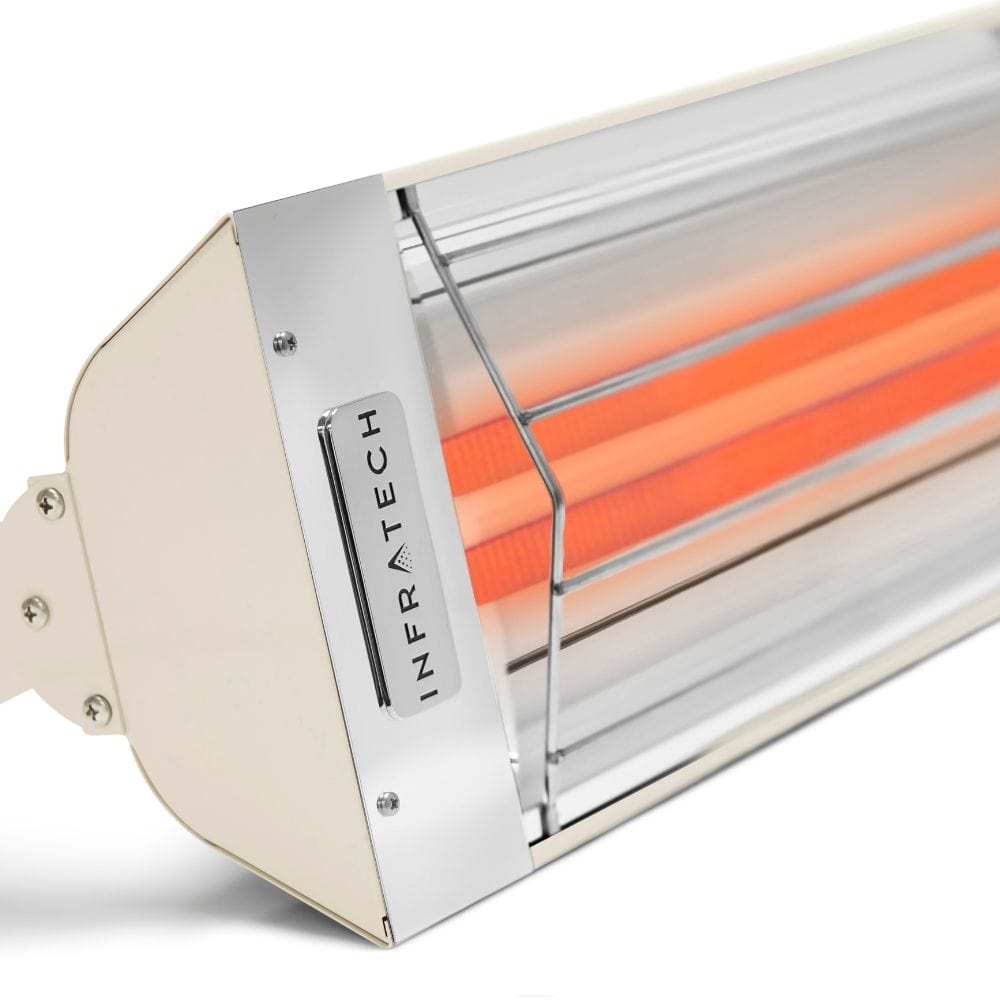

    This W-shaped heater is available in 208 V, 240 V, 277 V, and 480 V. It can also be custom powder coated in Almond, Beige, Biscuit, Black, Bronze, Copper, Grey, and White for an additional cost. Choose a color that matches or complements your room's color palette.

    A dual element heater packs twice the power, in the same sleek package, as their single element counterpart (W Series). If you are looking for a heater that is barely noticeable, but can provide a lot of heat, Infratech WD series heater is the best choice.

    Also available in sizes: 39" and 61" long.

    Note:The heating area may be reduced due to extreme weather conditions and incorrect placement. Please see the recommendations to properly mount your heater.

    Standard Stainless Steel 240V models are usually in stock and ready to ship. Custom colors and other voltages are special orders with 4-6 Weeks Manufacturing Lead Time.

    Need help determining the right heater and setup for your space and heating needs? Or, do you need more information about the current lead time? Give us a call at 1-866-713-4844 or email us at support@patiofever.com and we'll be happy to help!

    Download Product Manual

    Download Specs

    Download C/CD-Series vs. W/WD-Series

    Key Features:

    • UL Listed for Indoor and Outdoor installations due to low clearance requirements, install anywhere you want.
    • Stainless Steel construction ensures durability and corrosion resistance.

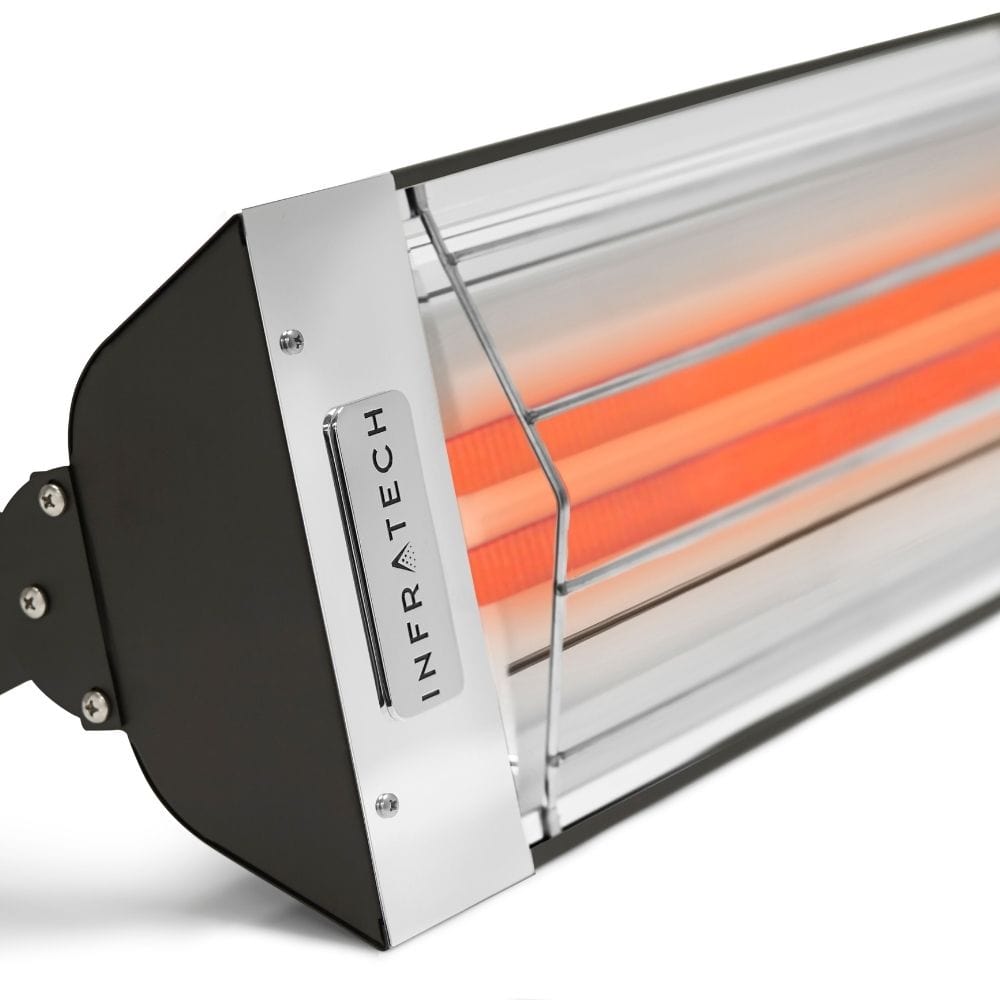

    • Custom Powder Coating Available in Almond, Beige, Biscuit, Black, Bronze, Copper, Grey, and White for an additional cost to match or complement your décor.
    • 6" Stainless Steel Mounting Kit includes swivel brackets for easy installation.
    • Quartz Element with approximately 5,000 hours of use for efficient heating to keep you comfortable.

    Other Features:

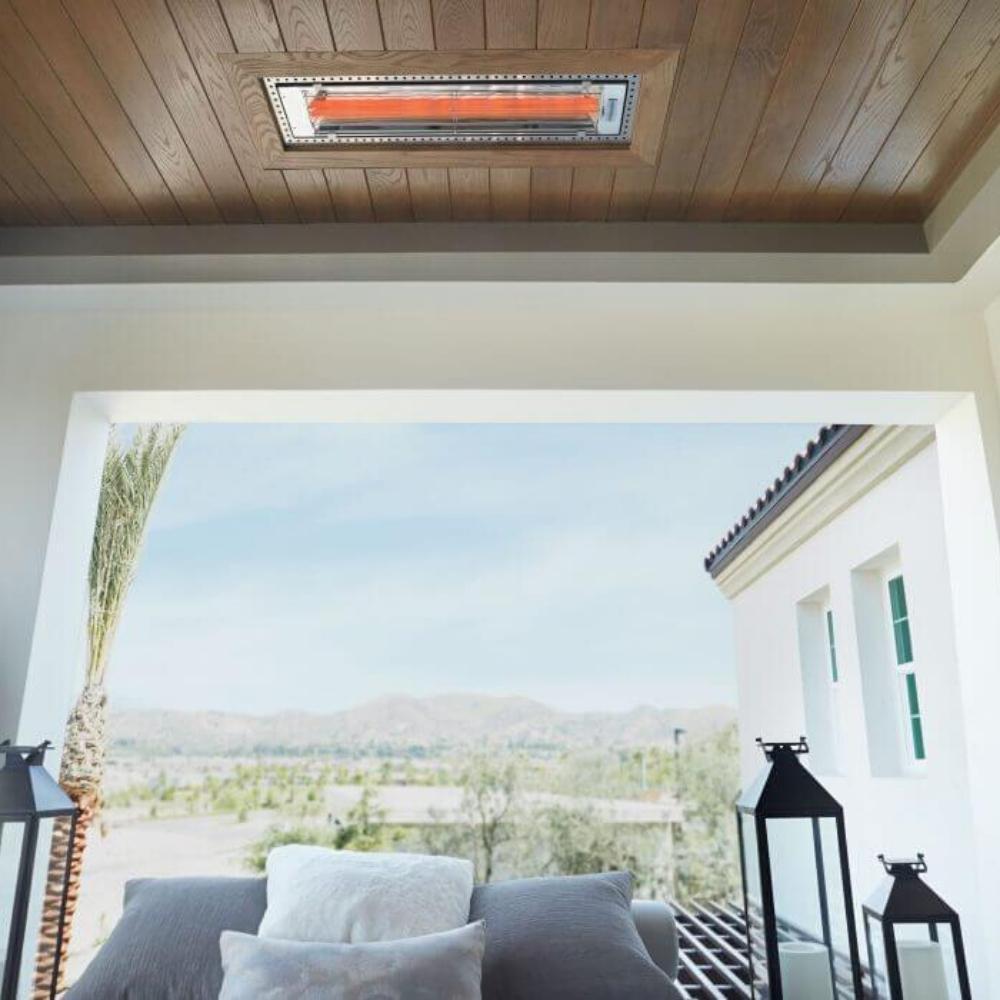

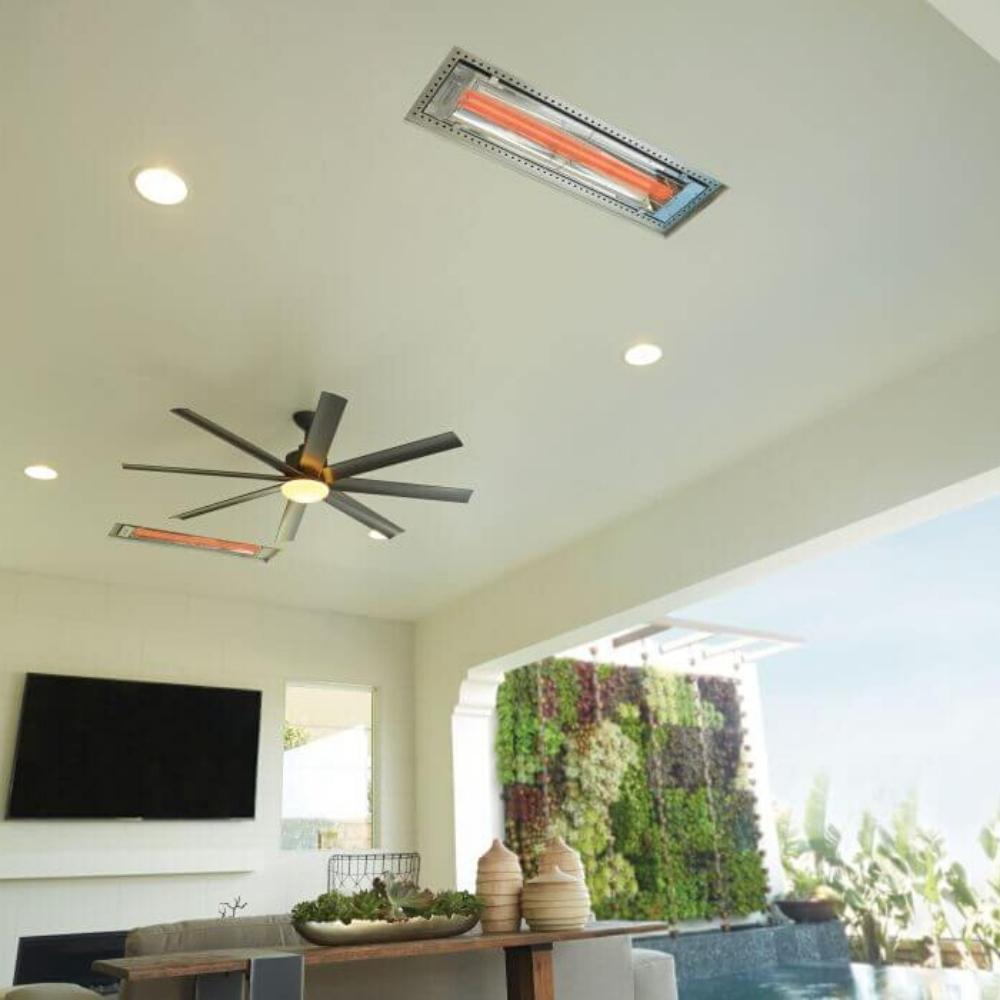

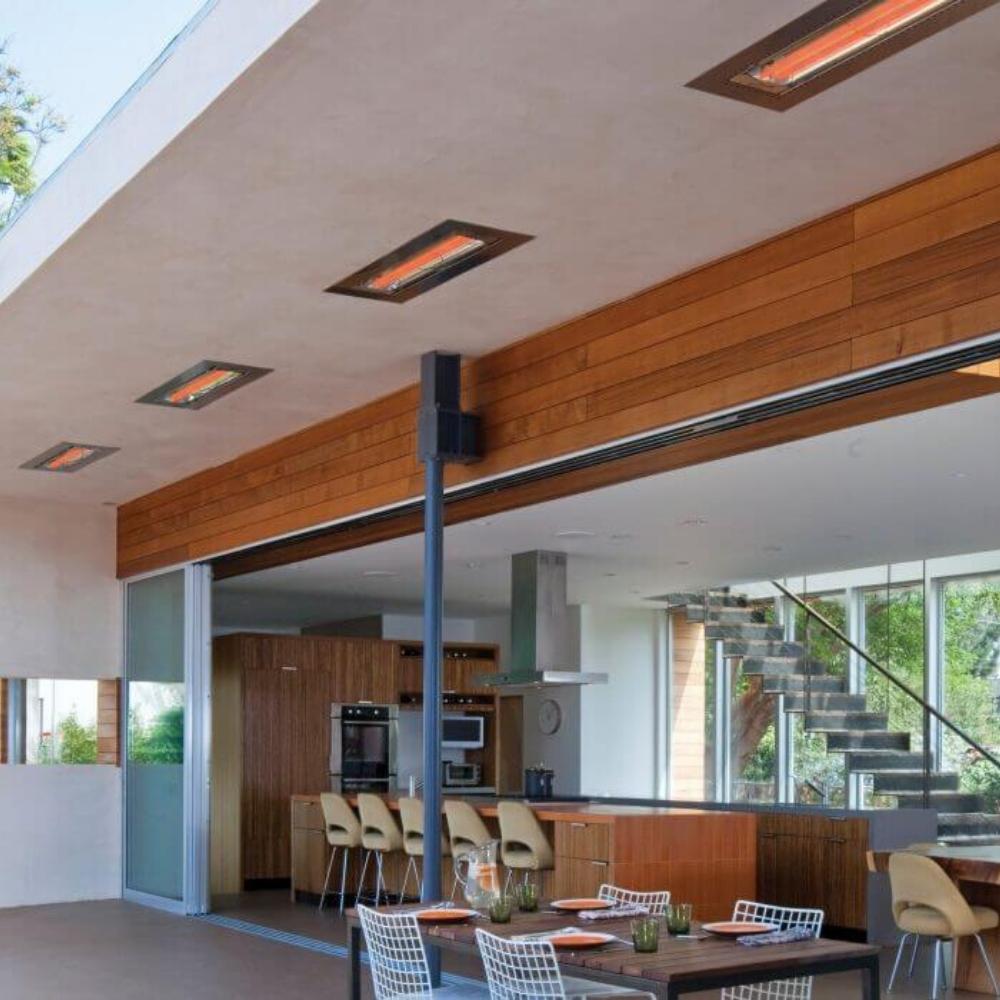

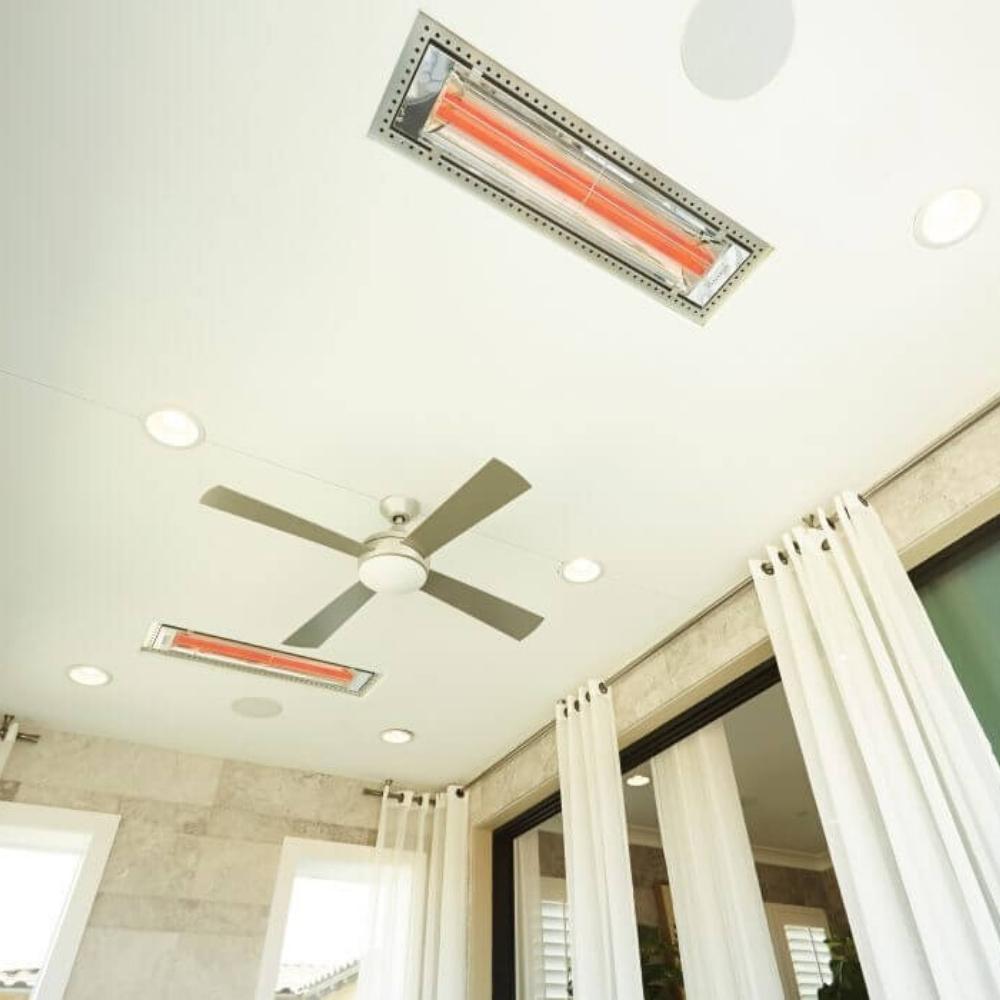

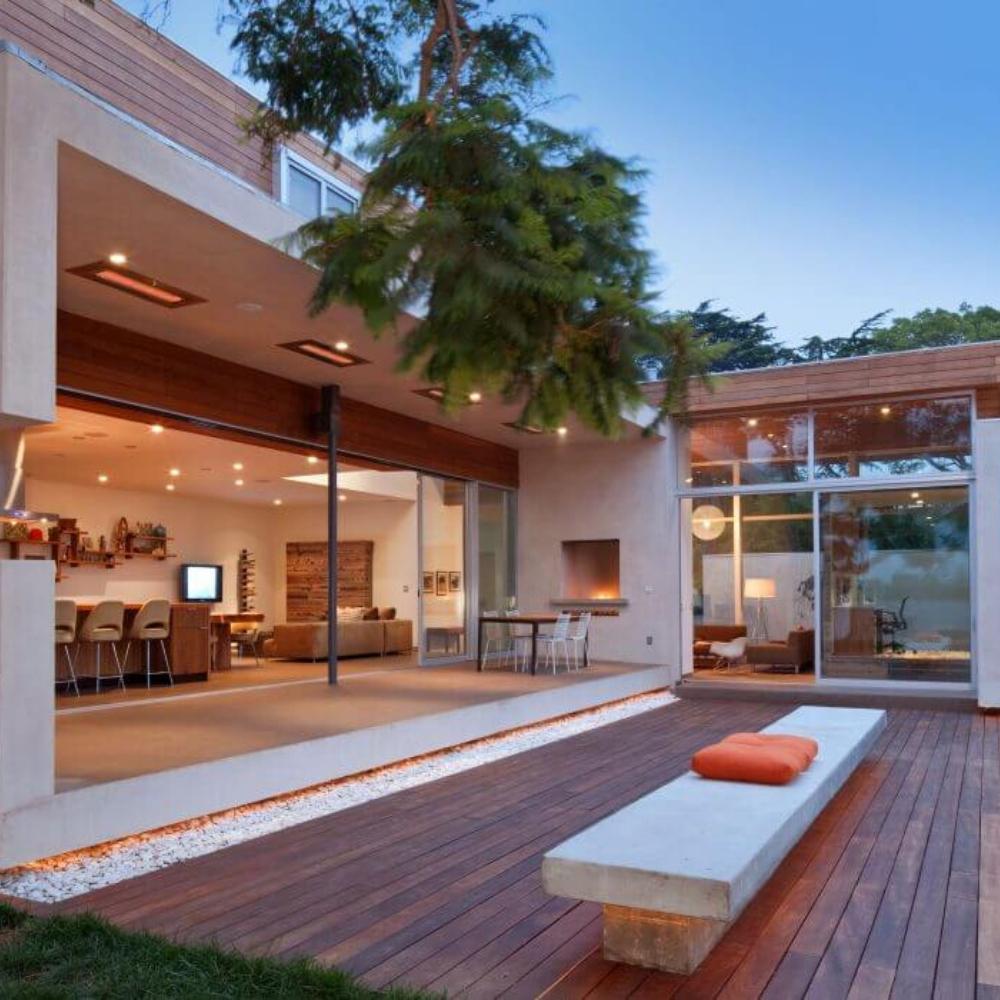

    • Optional flush mount kit available for recessed installation.
    • Mounting Height: 7' to 9' for efficient heat coverage.
    • 0 to 60° Mounting Angle with multi-position mounting bracket tab for installation flexibility.

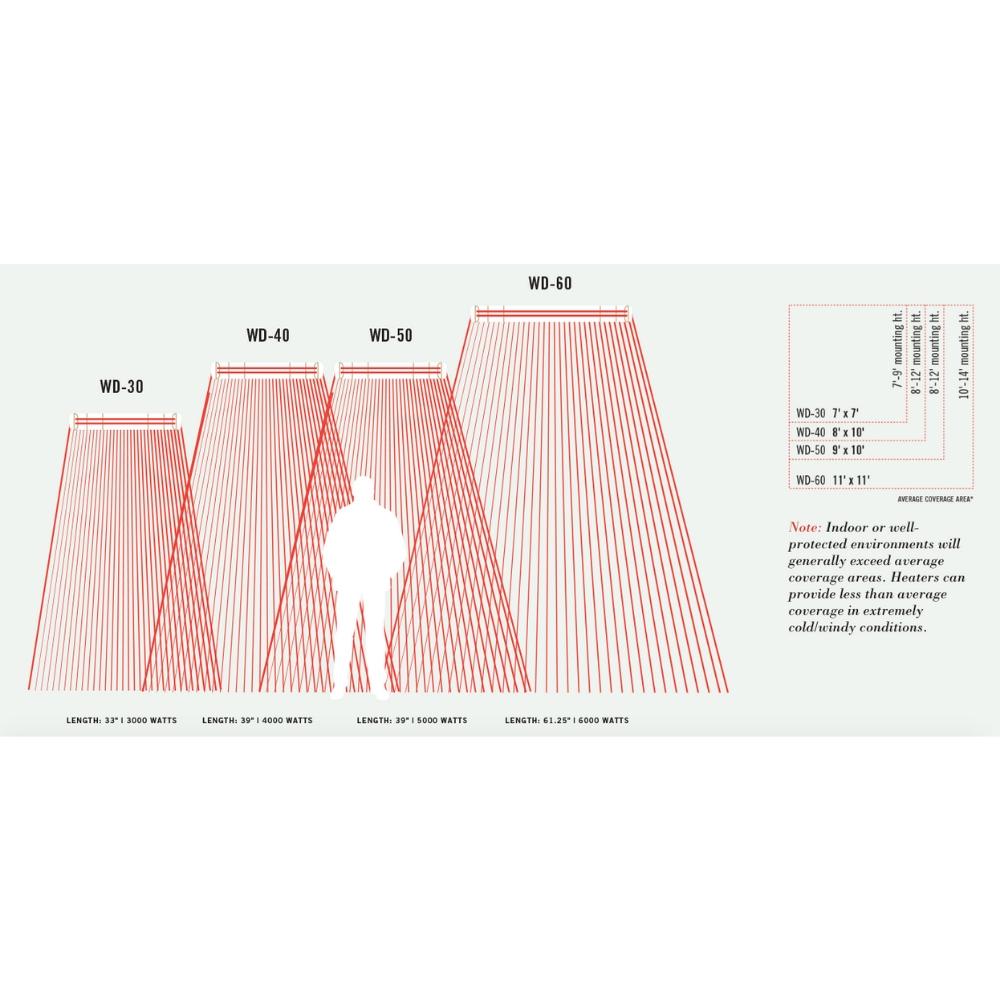

    • Approximate 7' x 7' Heat Coverage to keep specific areas warm.
    • Minimal Maintenance Cost compared to gas saves you money.
    • Infratech heaters can be used with various control options and are compatible with top-selling Smart Home systems like Lutron,™ Crestron,™ Control 4,™ and others for your convenience.
    • Available in 208V, 240V, 277V, or 480V to meet your needs.
    • Heaters greater than 240 Volts are for “Commercial Use Only. Risk of fire. Do not use as a residential or household heater.” This is for your safety.
    • Made in the USA, ensures high quality materials and superior craftsmanship.

    Specifications:

    Model Number: WD 30
    Manufacturer: Infratech
    Series: WD
    Indoor/Outdoor: Indoor / Outdoor
    Fuel Type: Electric
    Installation: Pole / Wall / Ceiling / Flush Mounted
    Material: Stainless Steel
    Grade: Commercial / Residential
    Heater Type: Infrared
    Heating Area: 7 ft. x 7 ft.
    BTUs: 10,236
    Watts: 3,000
    Volts: 208 / 240 / 277 / 480
    Amps: 14.4 / 12.5 / 10.8 / 6.2
    Dimensions: 33" Length with 8 3/16" Width
    Certifications: UL Listed for Indoor and Outdoor use
    Warranty: 3-Year Warranty


    Recommendations:

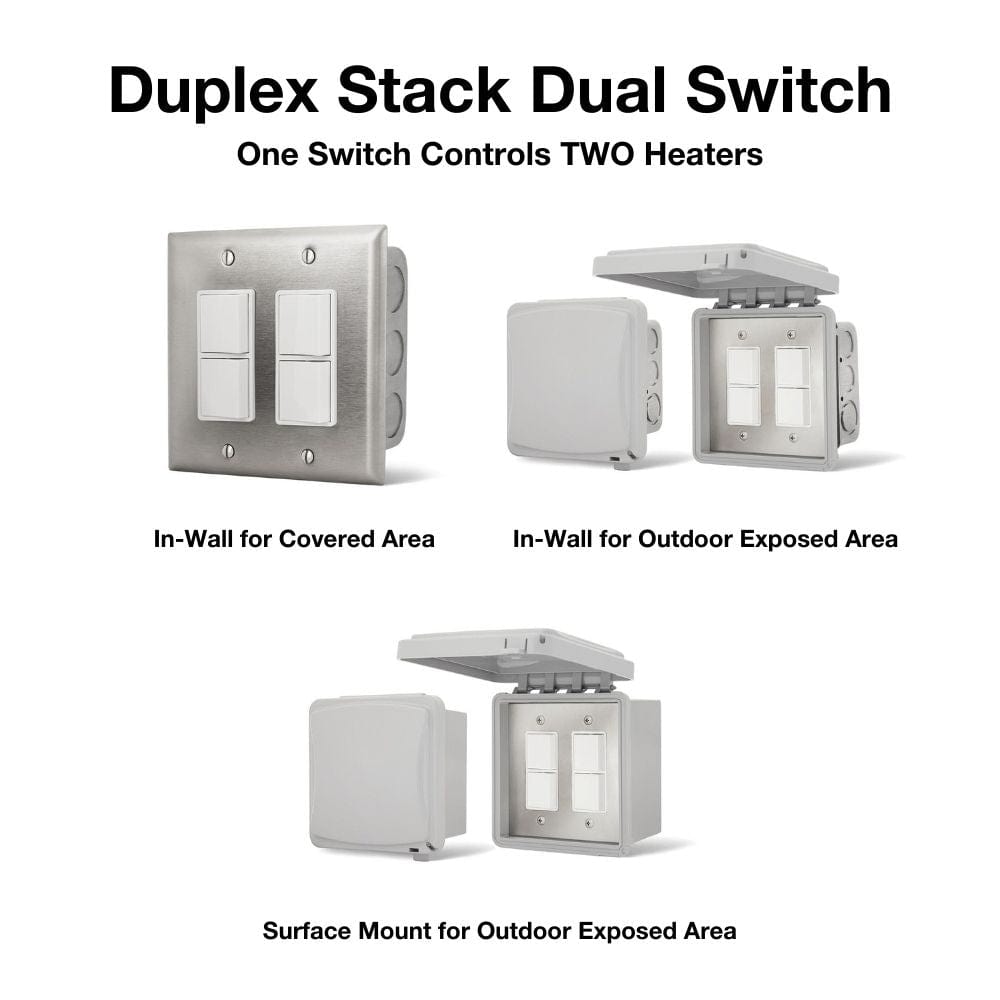

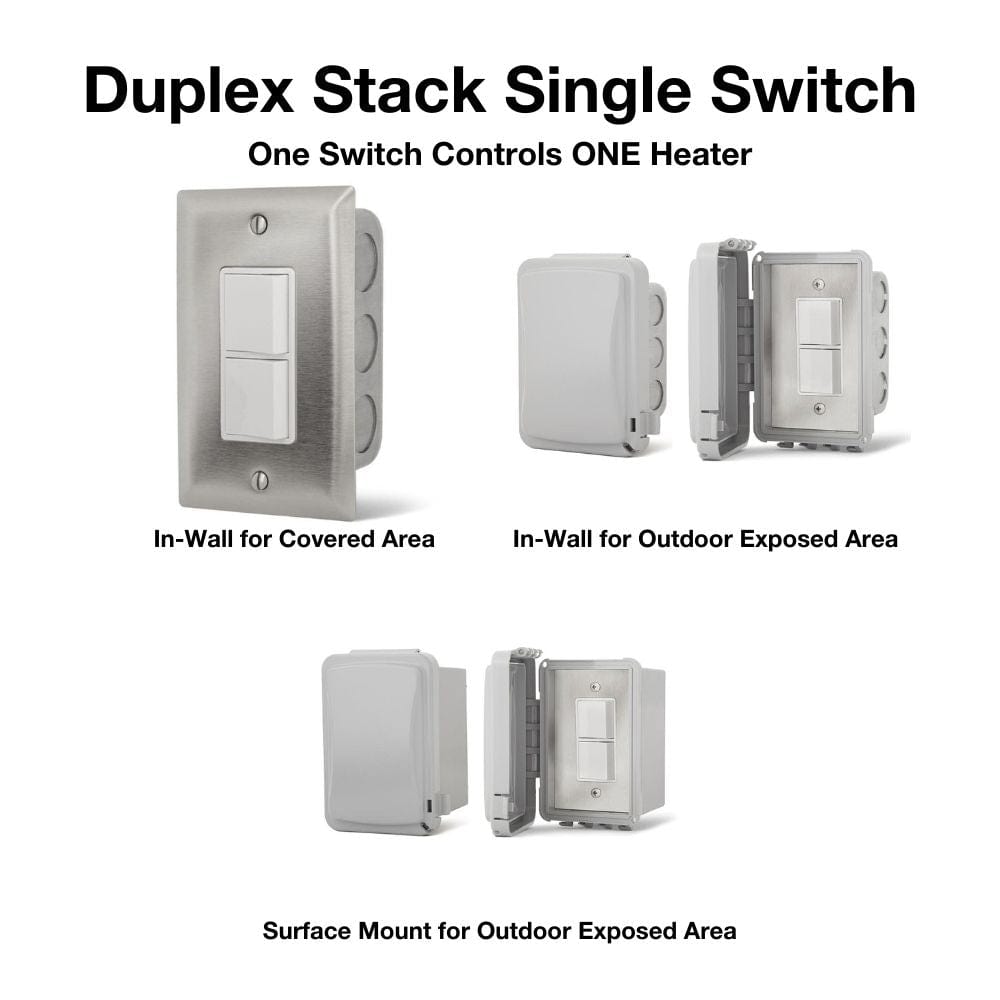

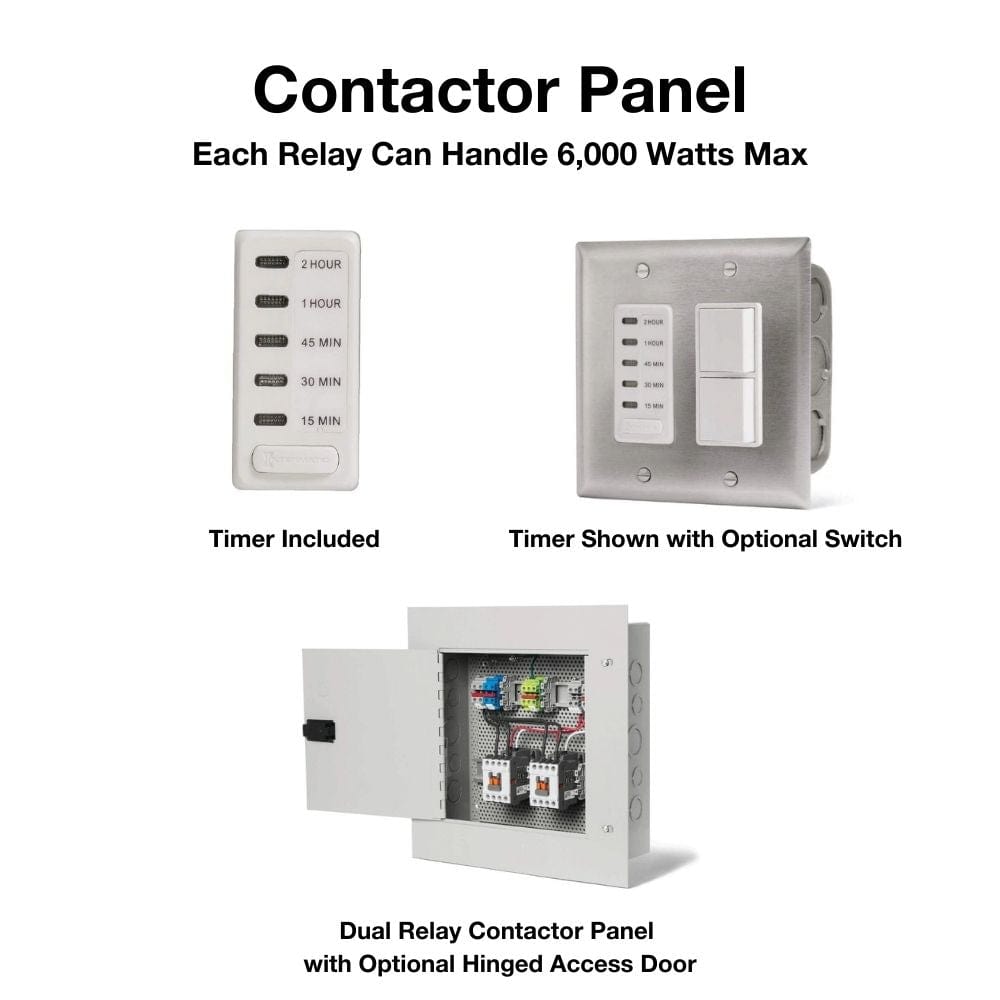

    Infratech offers a variety of control options, from duplex stack switches with high/low heat to more advanced controllers with more features. For Sleep Timer, temperature control, and other control options, get an Analog ControllerUniversal Control, or a Home Management System for smart home integration.

    The best angle to install this heater is approximately 45º. If installed outdoors, it is best to install it at the "cold side" for efficient heating and under a protective roof or weather cover, whenever possible. Even with its all-weather construction, your heater will last longer and look better if it is protected from rain and snow.

  • Free and Fast Shipping! Read our full Shipping Policy here.

    We offer market-leading 30-Day Free Returns! Read more about our Returns Policy here.

  • Our 100% Price Guarantee! Read more about our Price Guarantee here.

  • There are currently no warnings.

    This product is safe to use according to the manufacturer's instructions.
